Description

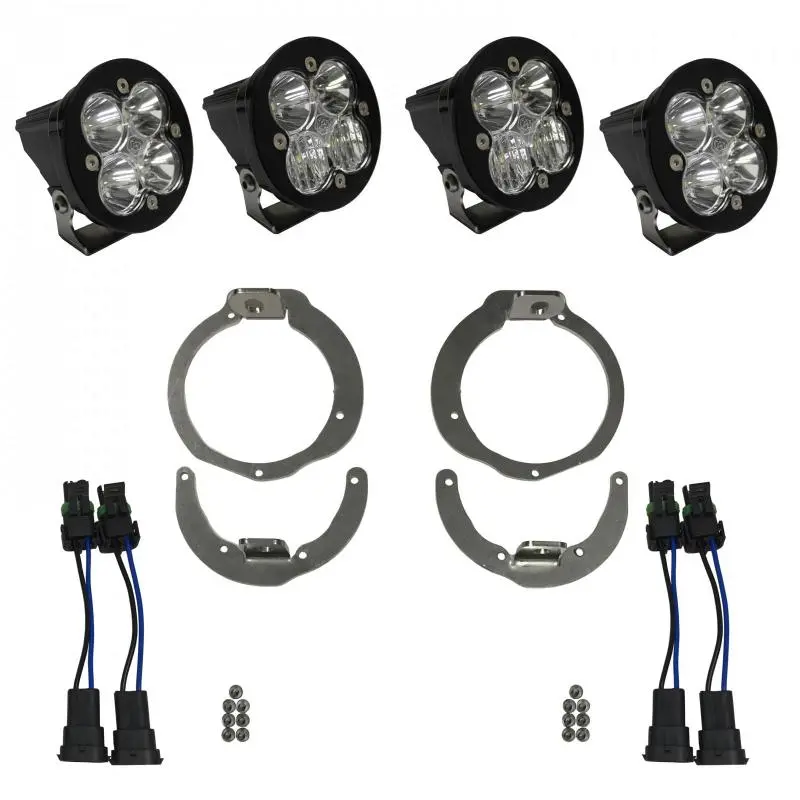

The Baja Designs Squadron-R Sport headlight replacement kit for the Can-Am Maverick (’13-16) and Renegade ATV (’11-16) will light up the trials while separating you from the pack. This “Sportsman” kit utilizes four Squadron Sports, each pushing out 3,162 lumens each at 30 watts, mounting brackets and harness adaptorts to make it an easy as plug and play that ties in to the factory hi/lo switch. Don’t get caught out in the dark with inferior lighting on your Can-Am, with our 30-day satisfaction guarantee and limited manufacturer lifetime warranty for purchase protection. USPTO Reg No. 5,766,659
ELS™ Scores:
Squadron Sport Spot Clear: ELS 112⁰/ 5.3/ 229’/ 1973
Squadron Sport Driving Combo Clear: ELS 112⁰/ 7.1 / 183’/ 2441
Comes with:
(2) Squadron-R Sport Driving Combo Clear
(2) Squadron-R Sport Spot Clear
(4) Light Mounts
(4) 2-pin to H10 Universal Adaptor
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It
MoistureBlock® – Waterproof, Rain Proof, Submersible
CopperDrive – Safely Driving LEDs at 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Baja Designs 447044 Installation Sheet
SKU: 580003
Specifications
| Housing Material | Powder Coated Cast Aluminum |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 4 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | Squadron-R Sport LED Light Pod |
| Wattage (W) | 26 |
| Wiring Harness Included | No |
| Amperage Rating (A) | 2 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Powder Coated Cast Aluminum |
| Brightness (Lumens) | 3,150 |
| Description | Round; Driving/Combo; Clear |
| Housing Color | Black |
Empty heading
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
Dimensions
| Depth (in.) | 2.77 |
| Height (in.) | 3.5 |
| Length (in.) | 3.5 |
| Weight (lbs.) | 0.75 |
SKU: 580001
Specifications
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 4 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | Squadron-R Sport LED Light Pod |
| Wattage (W) | 26 |
| Wiring Harness Included | No |
| Amperage Rating (A) | 2 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Spot |
| Bezel Material | Powder Coated Cast Aluminum |
| Brightness (Lumens) | 3,150 |
| Description | Round; Spot; Clear |
| Housing Color | Black |
| Housing Material | Powder Coated Cast Aluminum |
