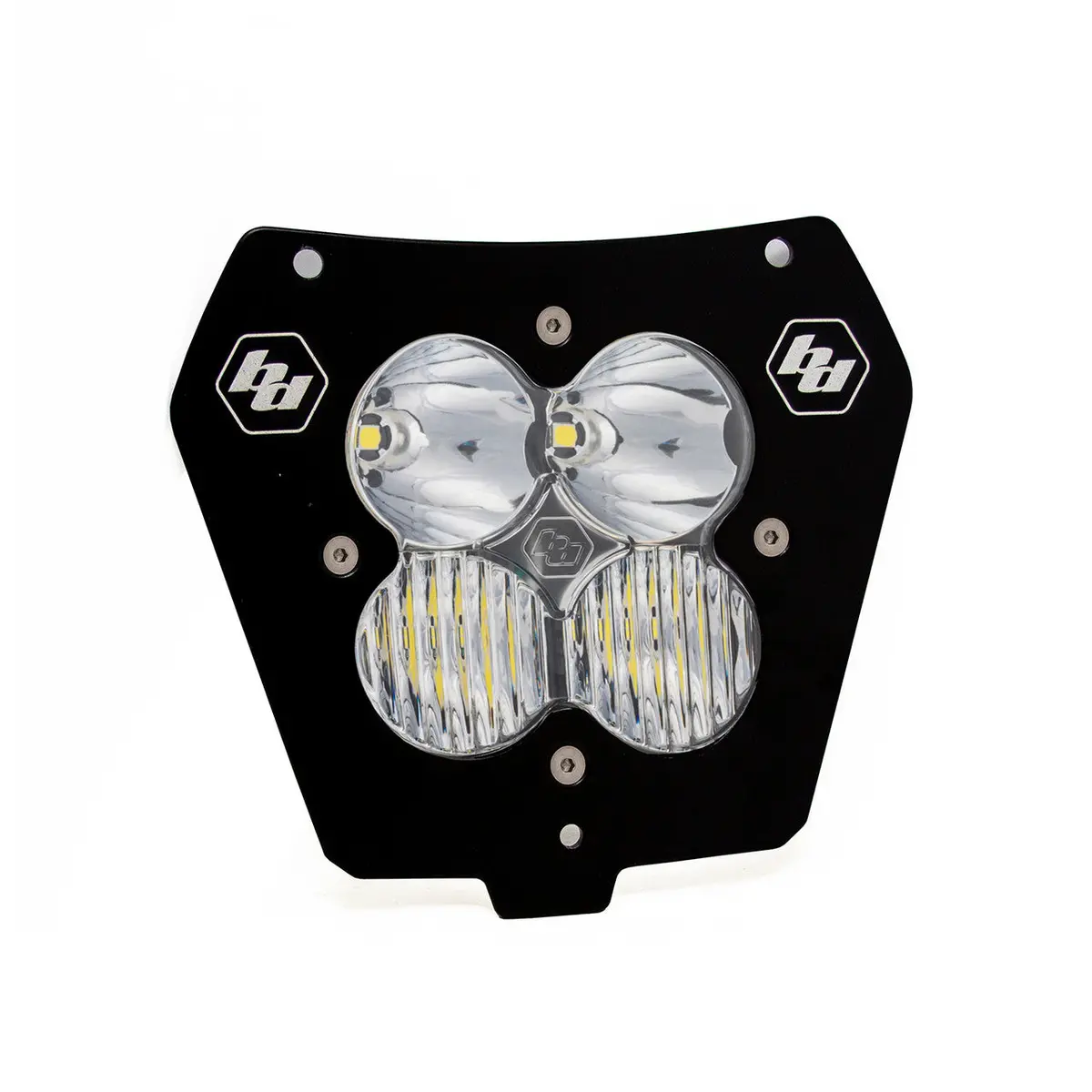

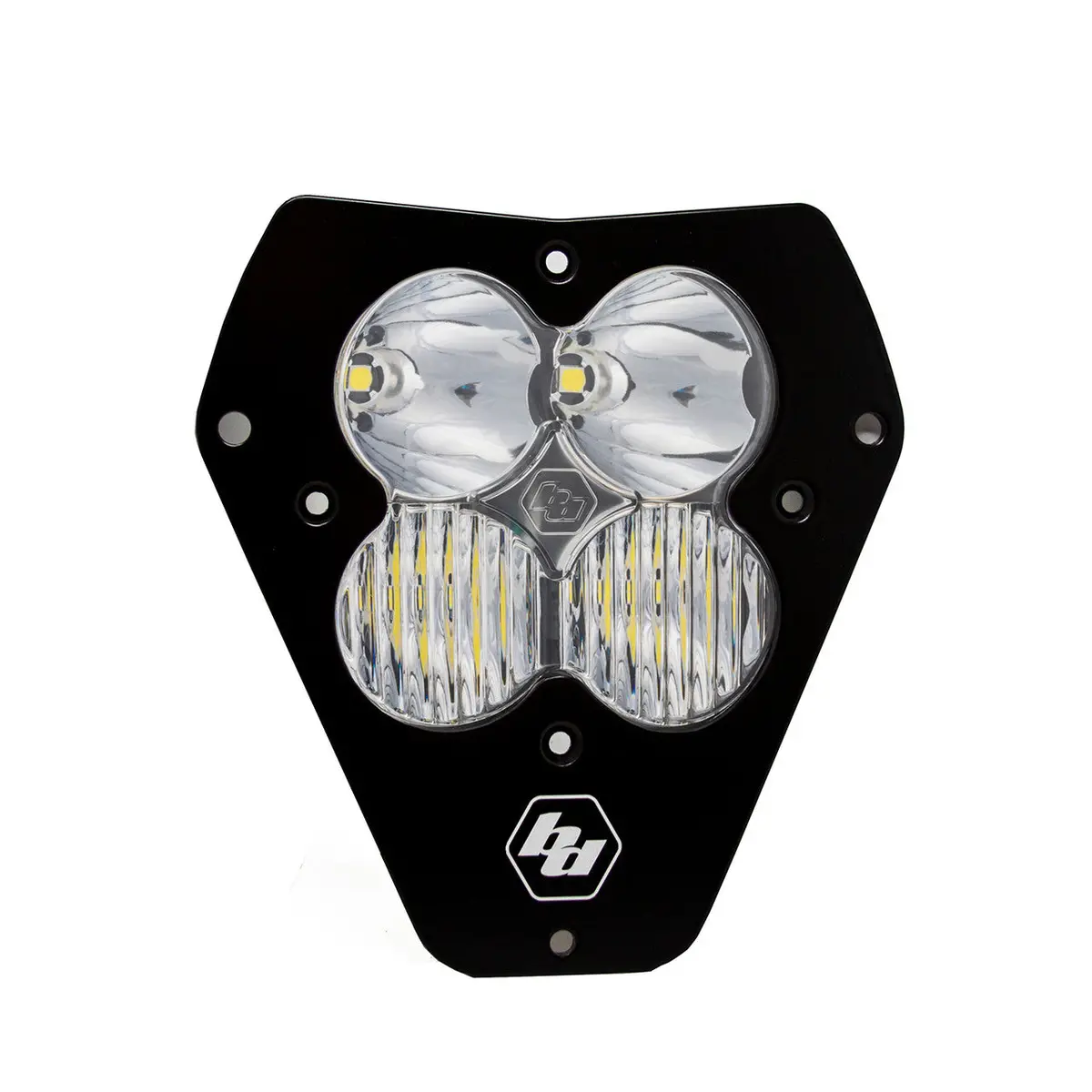

Our A/C kits allow you plug directly in to your stock lighting on the bike converting the A/C power to D/C power needed to run our lights. With these kits you will not need to perform any stator modifications! Specifically designed for those riders who are looking for more than just your average headlight. The XL Pro, LED KTM 2008-2013 Kit is in a league of its own, producing 4,600 lumens and 40 watts giving you the perfect mix of power and performance, and offers a 20 percent dimming feature. The XL Pro now features a variety of Cree LEDs to provide a 20 percent more reach, with the same power consumption! The XL Pro, LED KTM 2008-2013 Kit has been meticulously designed by our engineers to give our riders an extremely light weight (2.45 lbs) race light, while presenting a unique style and appearance that you will only find from Baja Designs. The XL Pro, LED KTM 2008-2013 Kit is plug and play making for an easy install. An industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection.
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
2001 and newer 2-stroke KTMs / 2001 and newer carbureted 4-stroke KTMs with a lighting coil can run this kit; reference the stator chart found under the tech info header. 2013 SX, XC, XC-W KTM models will need to purchase the 2014-2016 KTM kits.
2001 and newer 2stroke KTMs / 2001 and newer carbureted 4stroke KTMs with a lighting coil can run this kit reference the stator chart HERE. 2013 SX, XC, XC-W KTM models will need to purchase the 2014-2016 KTM kits.
Baja Designs 500009 Installation Sheet
Specifications
| Description | Driving/Combo; Clear |
| Brightness (Lumens) | 4095 |
| Bezel Material | Powder Coated Cast Aluminum |
| Beam Pattern | Driving/Combo |
| Average Rated Life (hr.) | 49,930 |
| Amperage Rating (A) | 3 |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color | Clear |
| Product Type | XL Pro LED Light Pod |
| Overvoltage Protection | Built-In |
| Mounting Hardware Material | Stainless Steel |
| Mounting Hardware Included | Yes |
| Lighting Type | Forward Projecting |
| Lighting Technology | Cree XP-L LED |
| Lighting Quantity | 4 |
| Lighting Modes | High Beam/Dimming Feature (20%) |
| Light Quantity | 1 |
| Lens Material | Hardcoated Polycarbonate |
| Universal or Specific | Universal |
| Wattage (W) | 41.400 |
| Wiring Harness Included | No |
Dimensions
| Weight (lbs.) | 2.450 |
| Height (in.) | 4.430 |
| Depth (in.) | 3.650 |
| Length (in.) | 4.430 |
Standards & Compliance
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
