Description

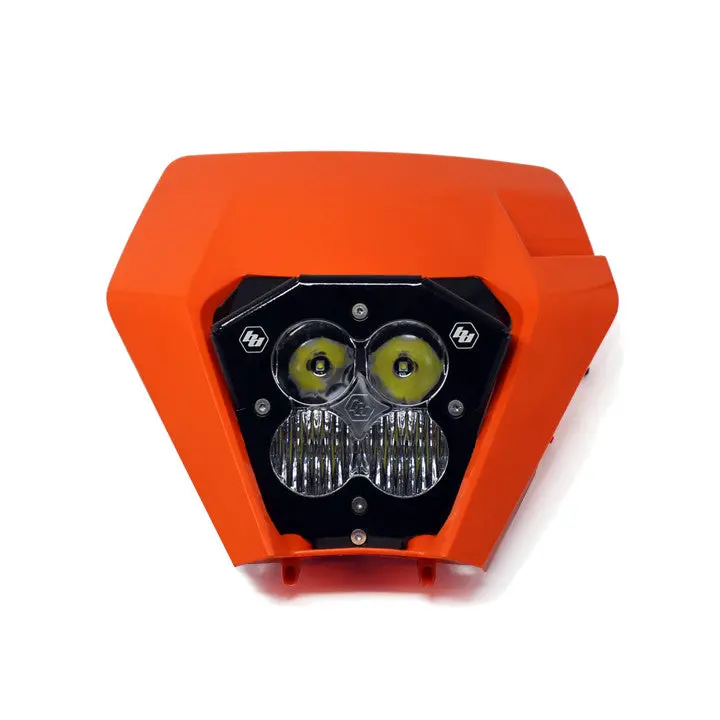

If you’re looking to go night riding look no further, our Baja Designs drop in replacement headlight kit is a major upgrade from stock and features a rugged design. This headlight kit was designed with ample adjustability, and features a significant amount of vertical and horizontal spread for ultimate trail coverage. This specific model utilizes our XL Pro which produces 4600 lumens and features a 20 percent dimming feature. The XL Pro now features a variety of Cree LEDs to provide a 20 percent more reach, with the same power consumption! Installation on this kit is as easy as installing a factory headlight, we provide a plug and play connector and all necessary hardware. Baja Designs offers an industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection. This kit comes preinstalled into a factory KTM Headlight mask (17-19). We offer this kit for the bikes that didn’t come equipped with a headlight shell or for the customer who doesn’t want to disassemble their factory unit.

Satisfaction Guarantee – 30-Day Money Back Guarantee

Limited Lifetime Warranty – Complete Purchase Protection

uService – Replaceable Lenses And Optics

ClearView – All The Light, Right Where You Need It

MoistureBlock – Waterproof, Rain Proof, Submersible

CopperDrive – Only LED Driven At 100 Percent

5000K Daylight – Less Driver Fatigue, Natural Color

Baja Designs 507198 Installation Sheet

12-9016 – This is an add on part that was designed to retain the factory dual sport bike’s hi/low pin out for their bar switch. The Hi-Beam Indicator will always be on when used with our Hi/Low KTM relay harness. Unsure if your bike is powerful enough to run this kit? Check out the chart found below.

KTM Motorcycle Power Output Chart

Model	Yrs	Stck Outpt	AC/DC	Stat Rwd	Squd Sport	Squd Pro	XL Sprt	XL Pro	XL80
250 XC-F	’06-10	100W	AC		X	X	X	X	X
250 XC-F	’11-16	20W	DC
250 XC-F	’11-16	90W*	DC	126007	X	X	X	X
250 XC-F	’17-22	70W	DC		X		X
350 XC-F	’11-16	20W	DC
350 XC-F	’11-16	90W*	DC	126007	X	X	X	X
350 XC-F	’17-22	70W	DC		X		X
450 XC-F	’08-10	42W	AC		X		X
450 XC-F	’11-16	20W	DC
450 XC-F	’11-16	90W*	DC	126007	X	X	X	X
450 XC-F	’13-18	90W	DC		X	X	X	X
450 XC-F	’17-22	70W	DC		X		X
505 XC_F	’08-12	42W	DC		X		X
250 XCF-W	’06-10	100W	AC		X	X	X	X
250 XCF-W	’11-16	20W	DC
250 XCF-W	’11-16	90W*	DC	126007	X	X	X	X
350 XCF-W	’11-16	20W	DC
350 XCF-W	’11-16	90W*	DC	126007	X	X	X	X
350 XCF-W	’20-22	196W	DC		X	X	X	X	X
500 XCF-W	’20-22	70W	DC		X	X	X	X
250 SX-F	’11-16	20W	DC
250 SX-F	’11-16	90W*	DC	126007	X	X	X	X
250 SX-F	’17-22	70W	DC		X		X
350 SX-F	’11-16	20W	DC
350 SX-F	’11-16	90W*	DC	126007	X	X	X	X
350 SX-F	’17-22	70W	DC		X		X
450 SX-F	’07-17	20W	DC
450 SX-F	’16-17	90W*	DC	126007	X	X	X	X
450 SX-F	’18-22	70W	DC		X		X
250 EXC-F	’17	168W	DC		X	X	X	X	X
250 EXC-F	’18-20	196W	DC		X	X	X	X	X
250 EXC-F	’21-22	200W	DC		X	X	X	X	X
300 EXC TPI	’18-22	196W	DC		X	X	X	X	X
350 EXC-F	’12-17	195W	DC		X	X	X	X	X
350 EXC-F	’20-22	196W	DC		X	X	X	X	X
450 EXC-F	’17-18	168W	DC		X	X	X	X	X
450 EXC-F	’19-22	196W	DC		X	X	X	X	X
500 EXC-F	’17-18	168W	DC		X	X	X	X	X
500 EXC-F	’19-22	196W	DC		X	X	X	X	X
500 EXC	’12-16	200W	DC		X	X	X	X	X
200 XC	’06-16	100W	AC		X		X
250 XC	’06-16	100W	AC		X		X
250 XC	’17-19	100W	AC		X		X
250 XC TPI	’20-22	196W	DC		X	X	X	X	X
300 XC	’06-19	100W	AC		X	X	X	X
300 XC TPI	’20-22	196W	DC		X	X	X	X	X
450 XC	’06-11	100W	AC		X	X	X	X
450 SMR	’21-22	70W	DC		X		X
690 Enduro R	’19-22	300W	DC		X	X	X	X	X
250 EXC	’05	100W	AC
250 EXC	’05	130W*	AC	126026	X	X	X	X
300 EXC	’00-05	40W	AC
300 EXC	’00-05	100W*	AC	126026	X	X	X	X
380 EXC	’00-02	40W	AC
380 EXC	’00-02	100W*	AC	126026	X	X	X	X

*Power output after stator rewind service.

Specifications

Description	Driving/Combo; Clear
Brightness (Lumens)	4095
Bezel Material	Powder Coated Cast Aluminum
Beam Pattern	Driving/Combo
Average Rated Life (hr.)	49,930
Amperage Rating (A)	3
Housing Color	Black
Housing Material	Hard Anodized and Powder Coated Cast Aluminum
Lens Color	Clear
Product Type	XL Pro LED Light Pod
Overvoltage Protection	Built-In
Mounting Hardware Material	Stainless Steel
Mounting Hardware Included	Yes
Lighting Type	Forward Projecting
Lighting Technology	Cree XP-L LED
Lighting Quantity	4
Lighting Modes	High Beam/Dimming Feature (20%)
Light Quantity	1
Lens Material	Hardcoated Polycarbonate
Universal or Specific	Universal
Wattage (W)	41.400
Wiring Harness Included	No

Dimensions

Weight (lbs.)	2.450
Height (in.)	4.430
Depth (in.)	3.650
Length (in.)	4.430

Standards & Compliance

Standards/Compliance (Water Resistance)	IP69K (Waterproof up to 9ft & Pressure Washable)
Standards/Compliance (Impact Resistance)	IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Durability)	Exceeds MIL-STD810G (Mil-Spec Testing)
