Description

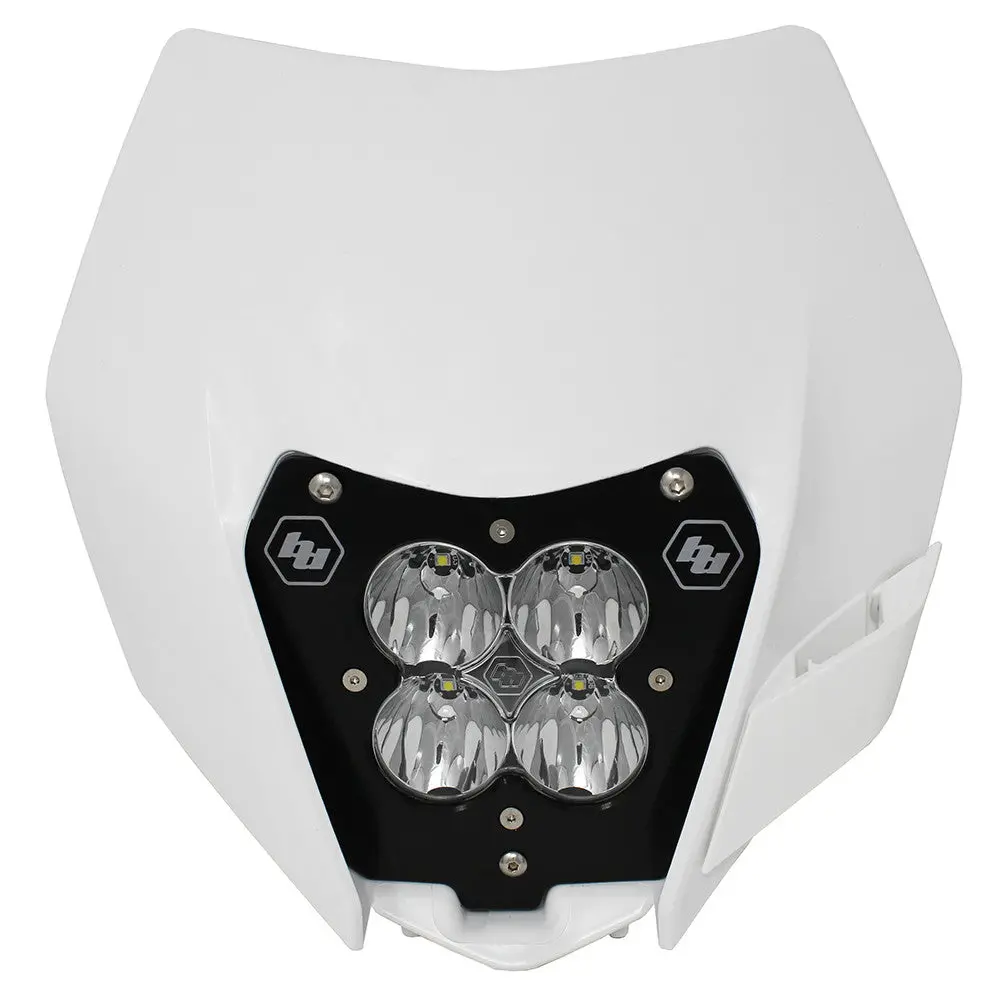

Specifically designed for those riders who are looking for more than just your average headlight. The XL80, LED KTM 2014-2016 w/Headlight Shell is in a league of its own, producing 9500 lumens at 80 watts giving you the perfect mix of power and performance, and offers a 20 percent dimming feature. The XL80, LED KTM 2014-2016 w/Headlight Shell has been meticulously designed by our engineers to give our riders an extremely light weight (2.45 lbs) race light, while presenting a unique style and appearance. The XL Pro, LED KTM 2014-2016 w/Headlight Shell is plug and play making for an easy install. An industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection.
XL80 Specifications (per light):
Includes pre-installed Trail lens for 1st-4th gear technical trail riding
Improve visibility through vertical transitions and tight turns in technical terrain
Lumens: 9,022
75.9W / 5.5A
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
Electric start bikes that require a stator modification or rewind will have to the purchase a switch and wiring harness kit. Please refer to the “STATOR Reference Chart” found under the Tech Info header. For Electric-Start Bikes: Some electric-start bikes require the stator to be modified or rewound as well as the addition of a new rectifier/regulator to run LED lights. If your bike requires a new rectifier/regulator please order part (#12-2004) (please provide year/make/model of bike). Detailed stator modification instructions and hardware is included for all bikes that require a stator modification to run LED lights. If your bike requires the stator to be rewound, please call Baja Designs for an order confirmation number to have this service performed. Hi-Beam Indicator will always be on when used with our Hi/Low KTM relay harness P/N:12-9016.
Baja Designs 677091 Installation Sheet
Standards & Compliance
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Specifications
| Wiring Harness Included | No |
| Wattage (W) | 75.900 |
| Universal or Specific | Universal |
| Average Rated Life (hr.) | 49,930 |
| Amperage Rating (A) | 5.500 |
| Beam Pattern | Spot |
| Bezel Material | Powder Coated Cast Aluminum |
| Description | Driving/Combo; Clear |
| Product Type | XL80 LED Light Pod |
| Overvoltage Protection | Built-In |
| Mounting Hardware Material | Stainless Steel |
| Mounting Hardware Included | Yes |
| Lighting Type | Forward Projecting |
| Lighting Technology | Cree LED |
| Lighting Quantity | 4 |
| Lighting Modes | High Beam/Dimming Feature (20%) |
| Light Quantity | 1 |
| Lens Material | Hardcoated Polycarbonate |
| Lens Color | Clear |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Housing Color | Black |
| Brightness (Lumens) | 9022 |
Dimensions
| Weight (lbs.) | 2.450 |
| Length (in.) | 4.430 |
| Height (in.) | 4.430 |
| Depth (in.) | 3.650 |
