Description

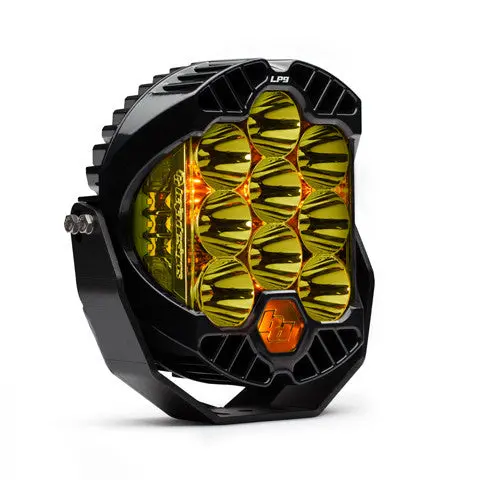

Inspired by Baja Designs’ iconic 8-inch La Paz HID, the LP9 boasts contemporary styling and top-notch performance, incorporating some of today’s most advanced LED technologies. With 9 forward-projecting LEDs producing 11,025 Lumens at 105 watts, and 6 LEDs dedicated to Integrated Peripheral Technology (IPT) generating 1,140 lumens at 10.5 watts per side, the LP9 achieves an outstanding total lumen output. The IPT ensures an impressive 200-degree spread of usable light. The housing is engineered for exceptional heat dispersion, employing Direct Ducted Cooling for effective airflow from the front to the rear.
NOTE: This light does not come with a wiring harness. The applicable wiring harness for this light is 640172.
Featuring daytime running light, low, and high-power modes, the LP9 caters to all lighting needs. It is available in a standard model suitable for a wide range of off-road applications and a Racer Edition configuration tailored for high-speed driving. The Racer Edition, with a similar power draw, delivers a tighter pattern for enhanced visibility at greater distances. Both models incorporate uService technology, allowing users to change the lens pattern and color based on driving conditions or for a lens refresh.
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
Baja Designs 330001 Installation Sheet
Baja Designs 330011 Installation Sheet
Standards & Compliance
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Patent No. | 5,504,603 |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Dimensions
| Depth (in.) | 3.250 |
| Height (in.) | 8 |
| Length (in.) | 8 |
| Weight (lbs.) | 6.500 |
Specifications
| Amperage Rating (A) | 9.600 |
| Average Rated Life (hr.) | 49,930 |
| Backlight Amperage Rating (A) | 0.200 |
| Backlight Wattage (W) | 2.800 |
| Beam Pattern | Racer Edition Spot |
| Bezel Material | Powder Coat Cast Aluminum |
| Brightness (Lumens) | 8374 |
| Description | Racer Edition Spot; Amber |
| Housing Color | Black |
| Housing Material | Powder Coat Cast Aluminum |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High Beam/Low Beam/Day-Time Running Backlighting |
| Lighting Quantity | 9 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | LP9 Racer Edition LED Light Pod |
| Secondary Amperage Rating (A) | 1.520 |
| Secondary Brightness (Lumens) | 2302 |
| Secondary Light Quantity | 6 LEDs |
| Secondary Lighting Technology | LED |
| Secondary Lighting Type | Integrated Peripheral Technology (IPT) |
| Secondary Wattage (W) | 21 |
| Terminal Connector | DT06-4S Deutsch |
| Terminal Type | Mating Connector |
| Universal or Specific | Universal |
| Wattage (W) | 132.480 |
| Wiring Harness Included | No |
