Description
Plow Mount Installation Instructions
FITS:
| Arctic Cat ATV Model * | Year |
|---|---|
| 600 Alterra | ‘22-24 |
| 600 Alterra TRV | ‘23-24 |
| 700 Alterra TRV 4×4 | ’17-22 |
| Tracker ATV Model * | Year |
|---|---|
| 600 (Base / EPS / EPS LE) | ‘22-25 |
* Uses OEM integrated winch mount

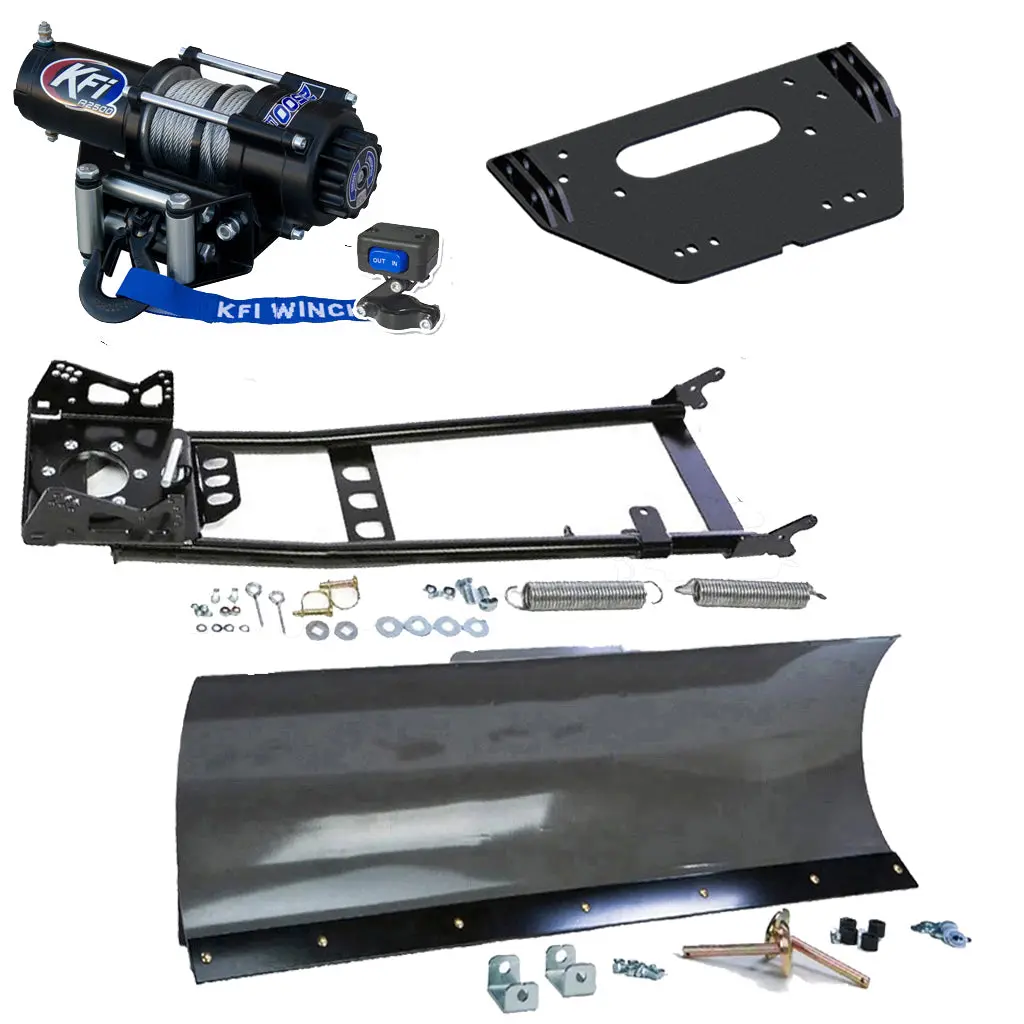

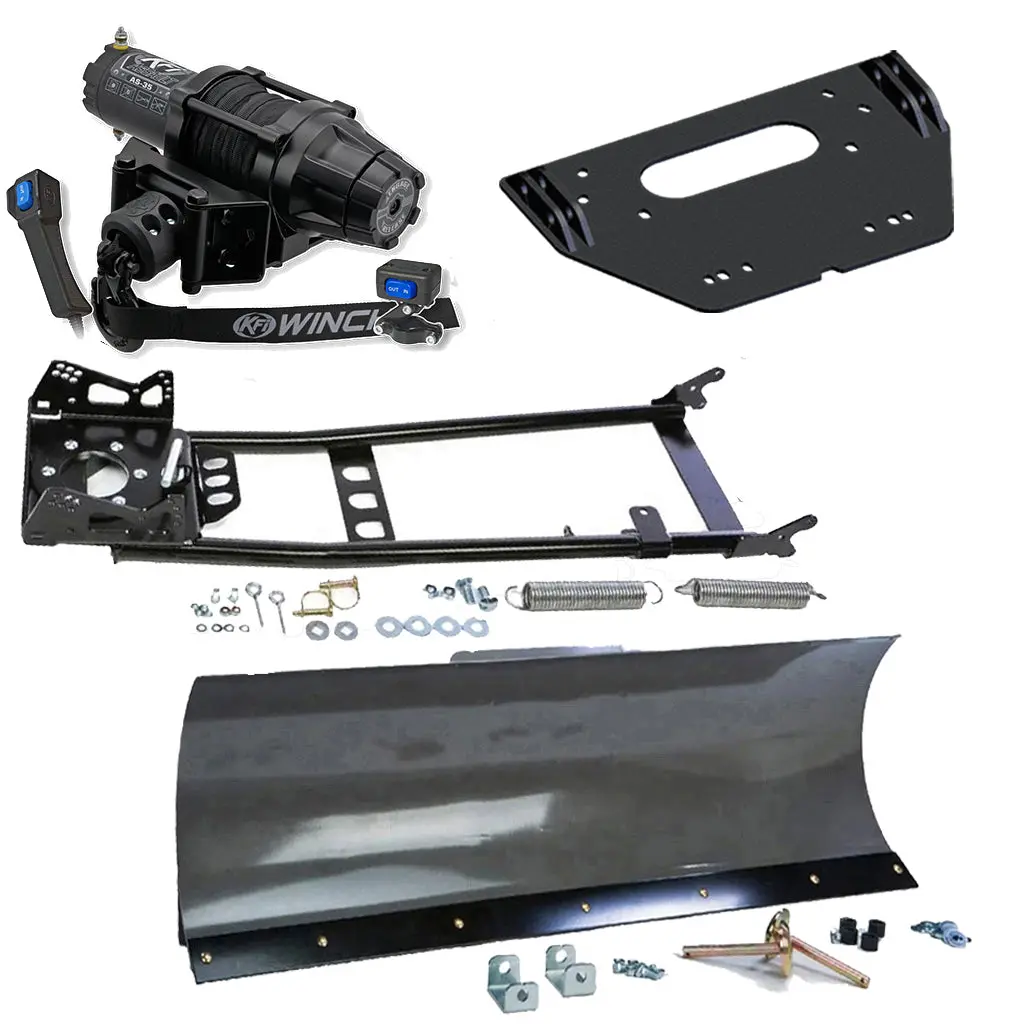

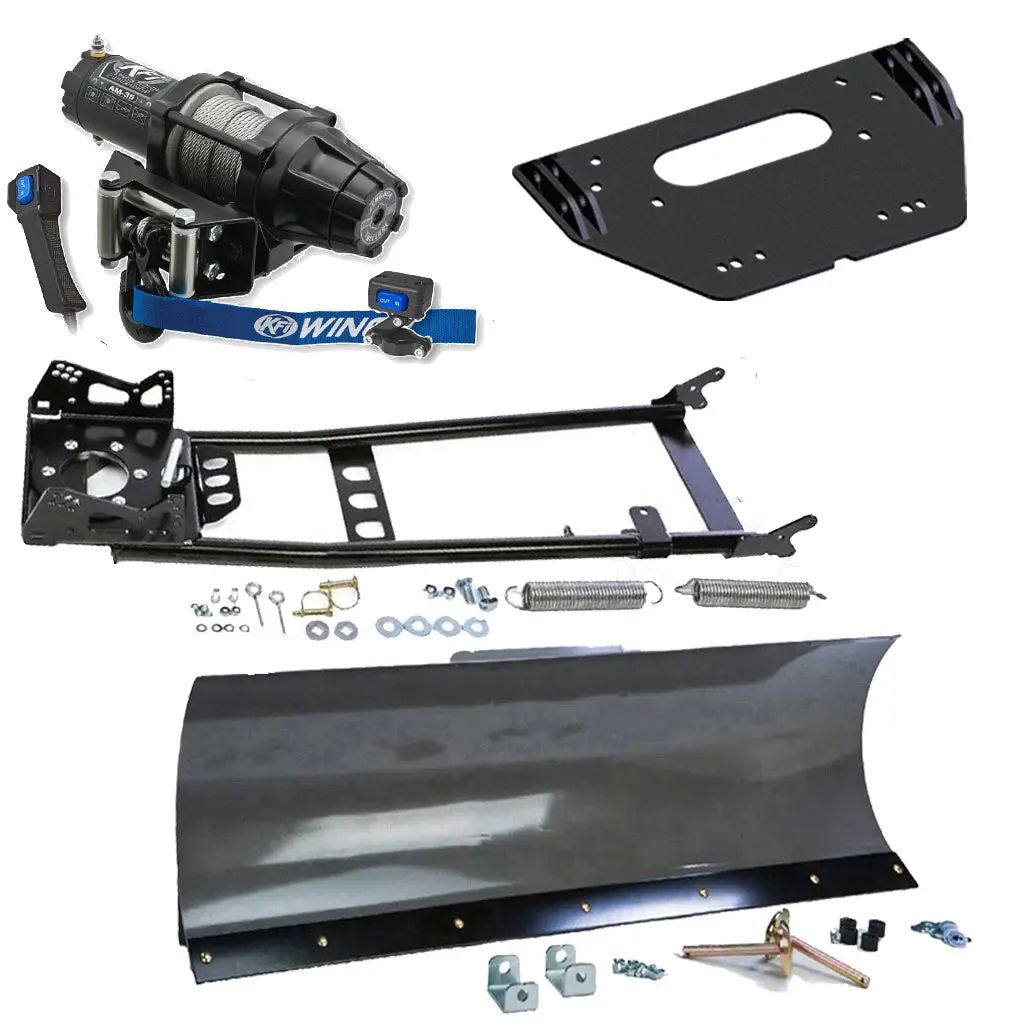

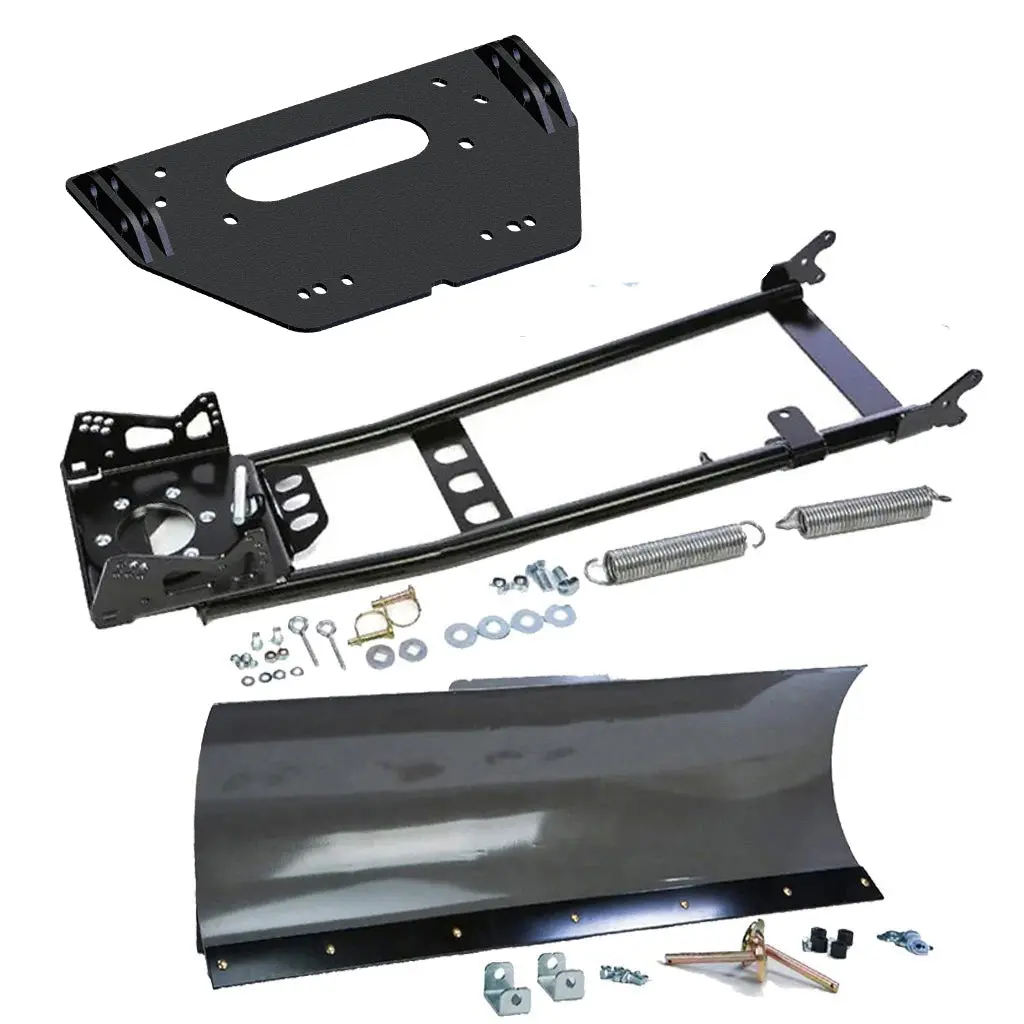

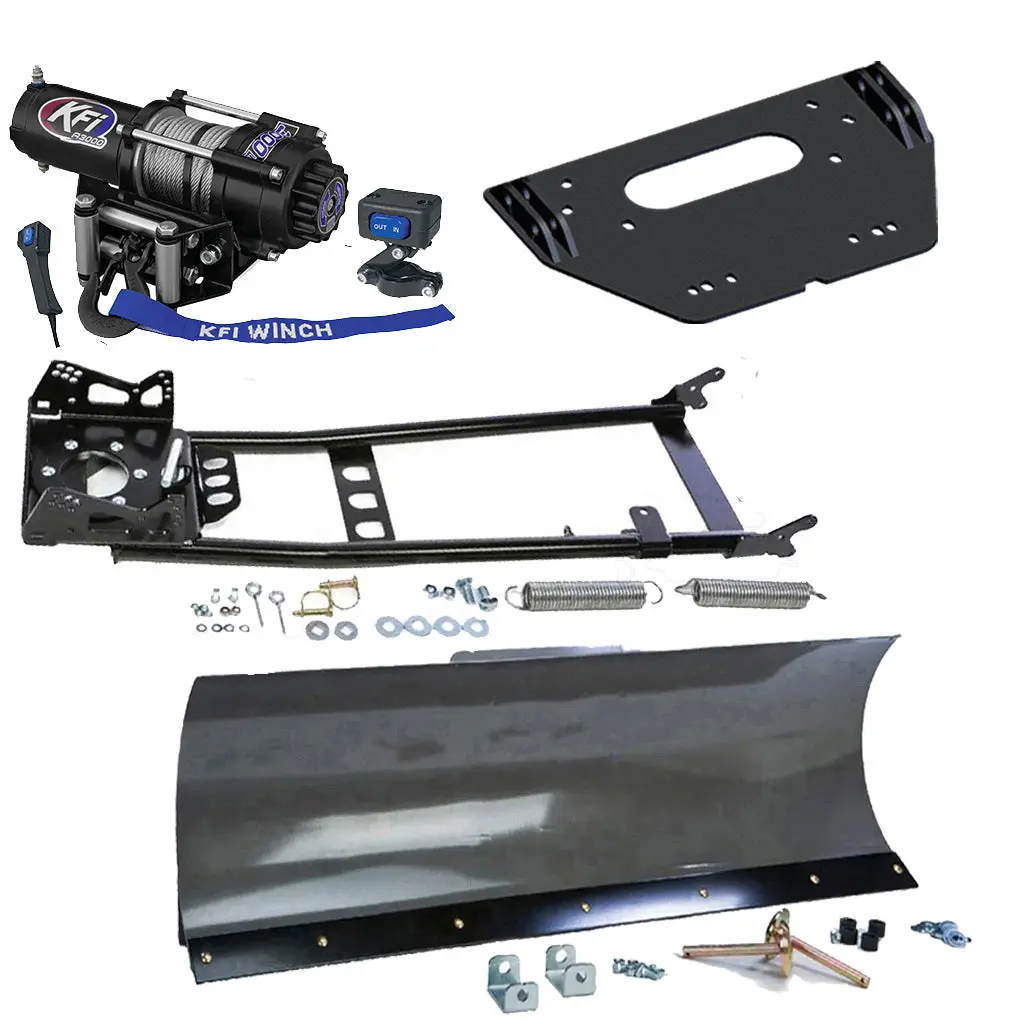

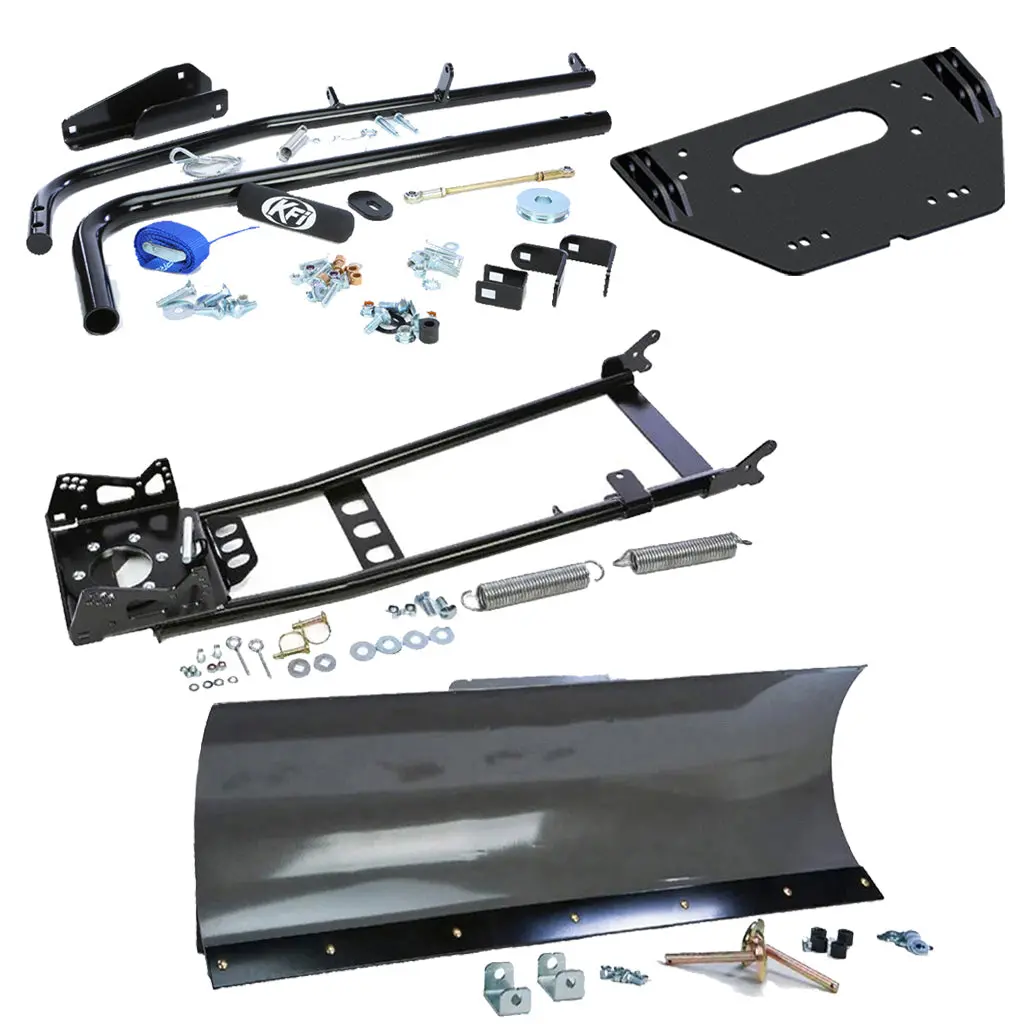

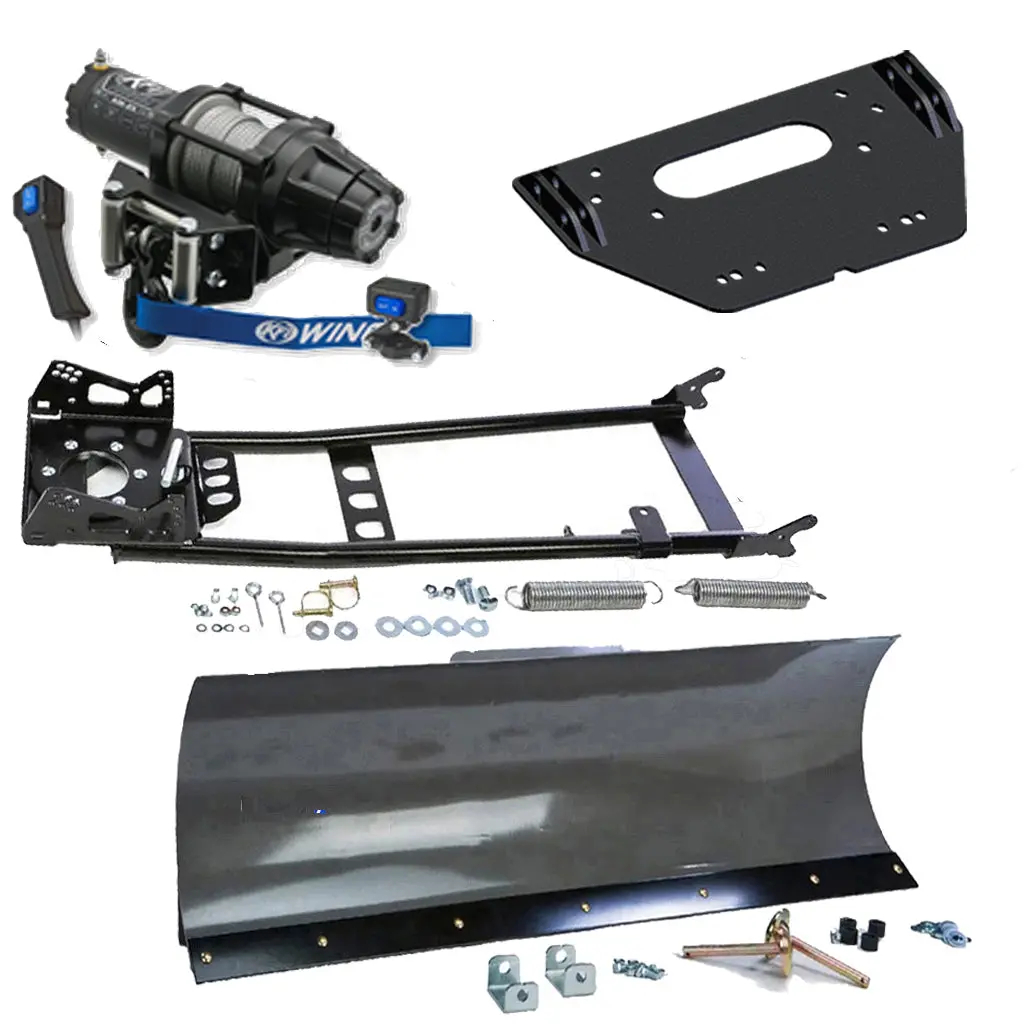

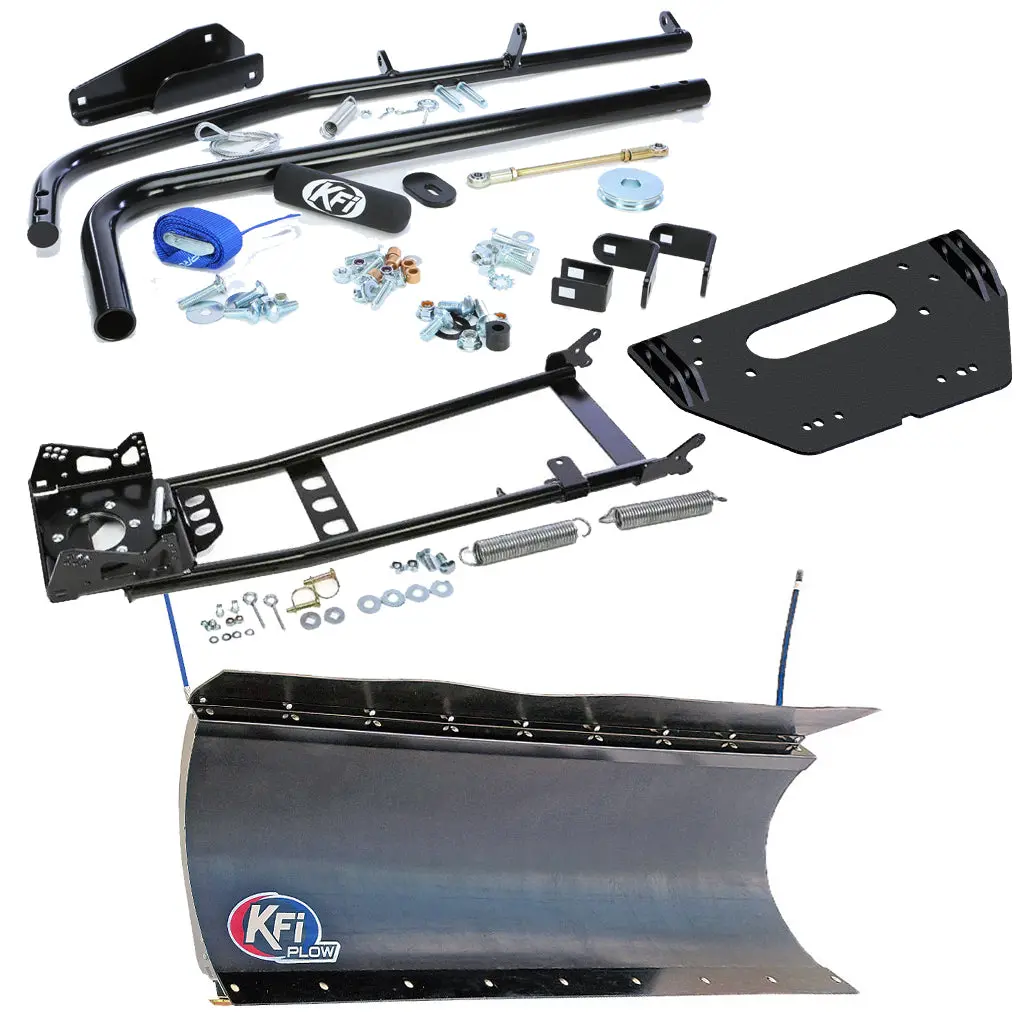

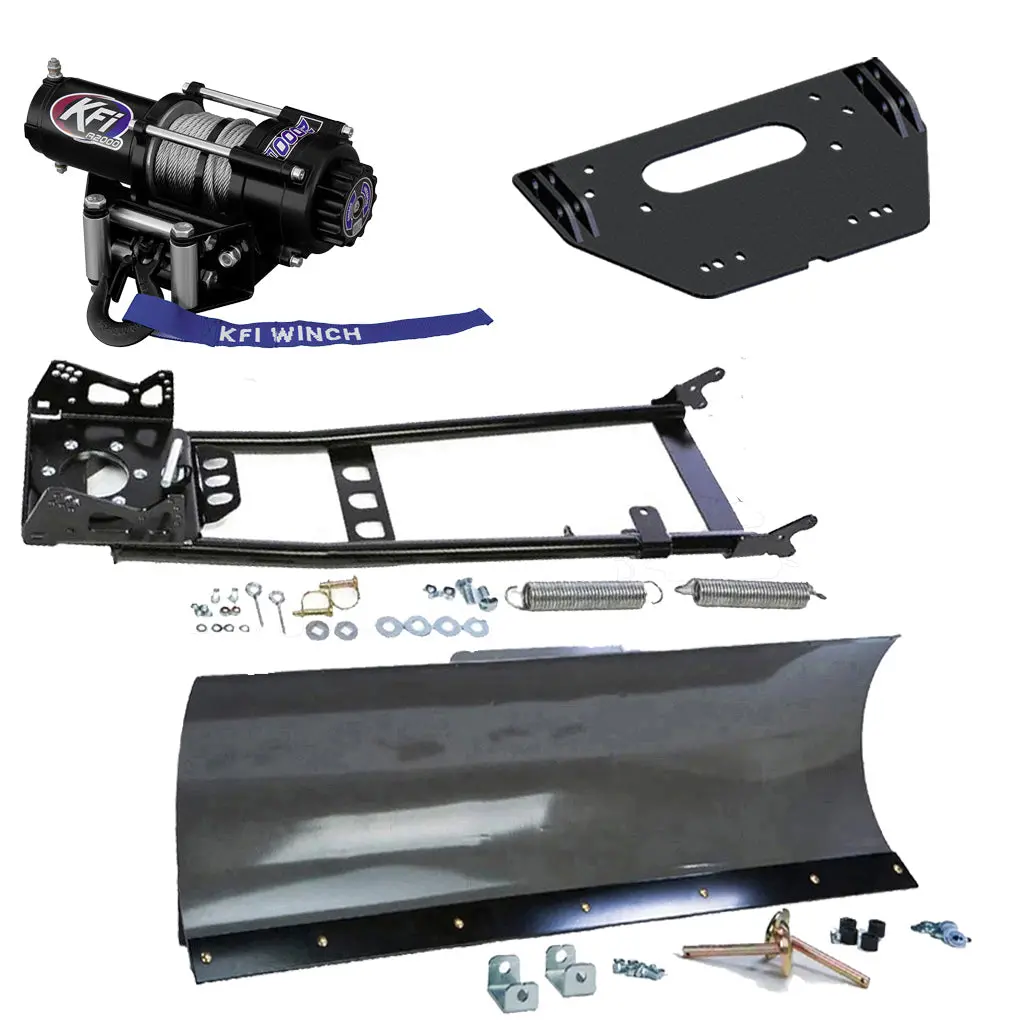

Straight Blade Specifications:
100% MADE IN USA
Pushes snow straight ahead or to the sides up to 25 degrees
Added gussets for the wider width
The 66 inch & 72 inch blades include a 7 inch high 2-ply top rubber flap
Measures 16 inch vertical blade face height with an approximate 21 inch height with snow flap
Fully-adjustable blade skids with bolt-on brackets
Heavy duty 3 inch -diameter grade-50 steel skid plates
Blade Constructed of 11 ga steel
3/16 inch Grade 50 Ribbing for a strong bolt-up to the Swivel Tube
Unlike all other Plow competitors our Plows are metal bead blasted before they are powder coated Metallic Silver for supreme durability
2-Sided 3/16 inch x 3.00 inch Grade 50 Steel Wear Bar
Wear Bar attached with Heavy Duty Grade 8 Bolts
2-Year KFI Warranty

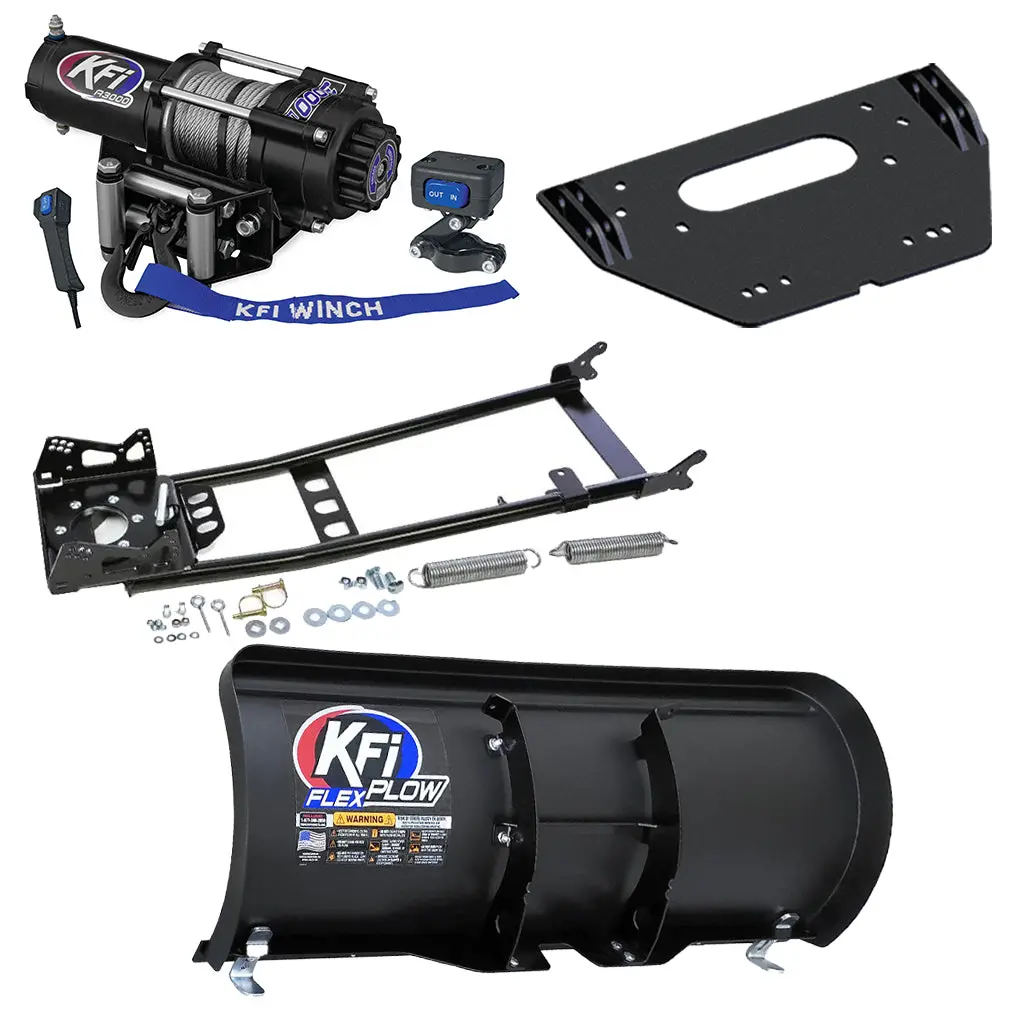

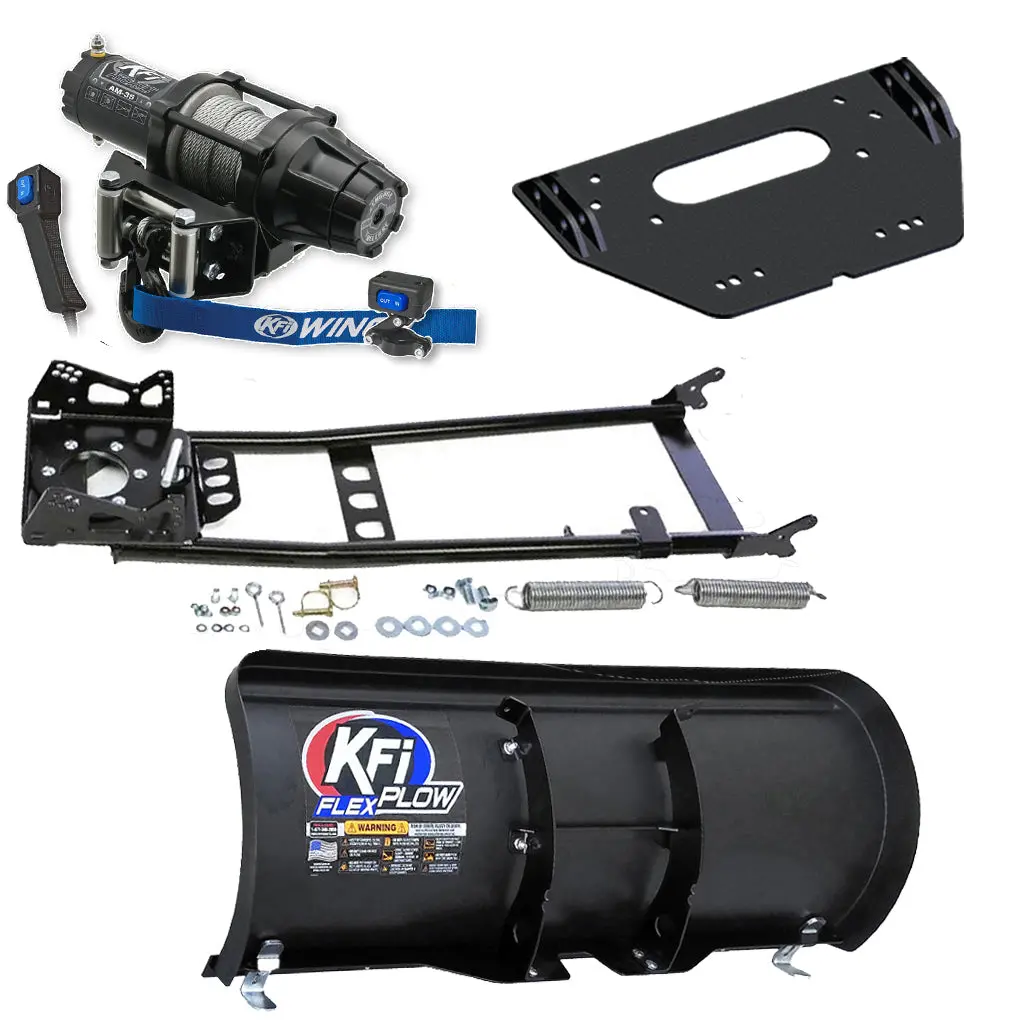

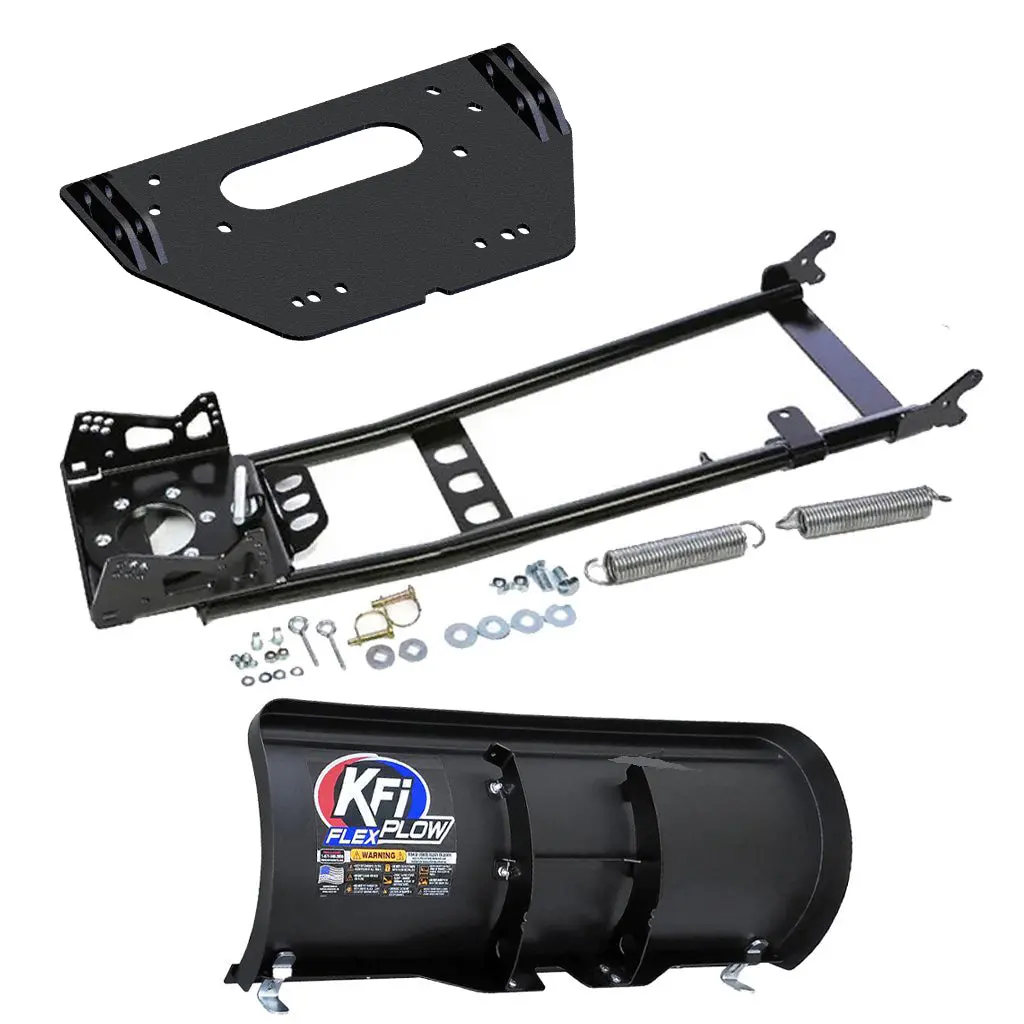

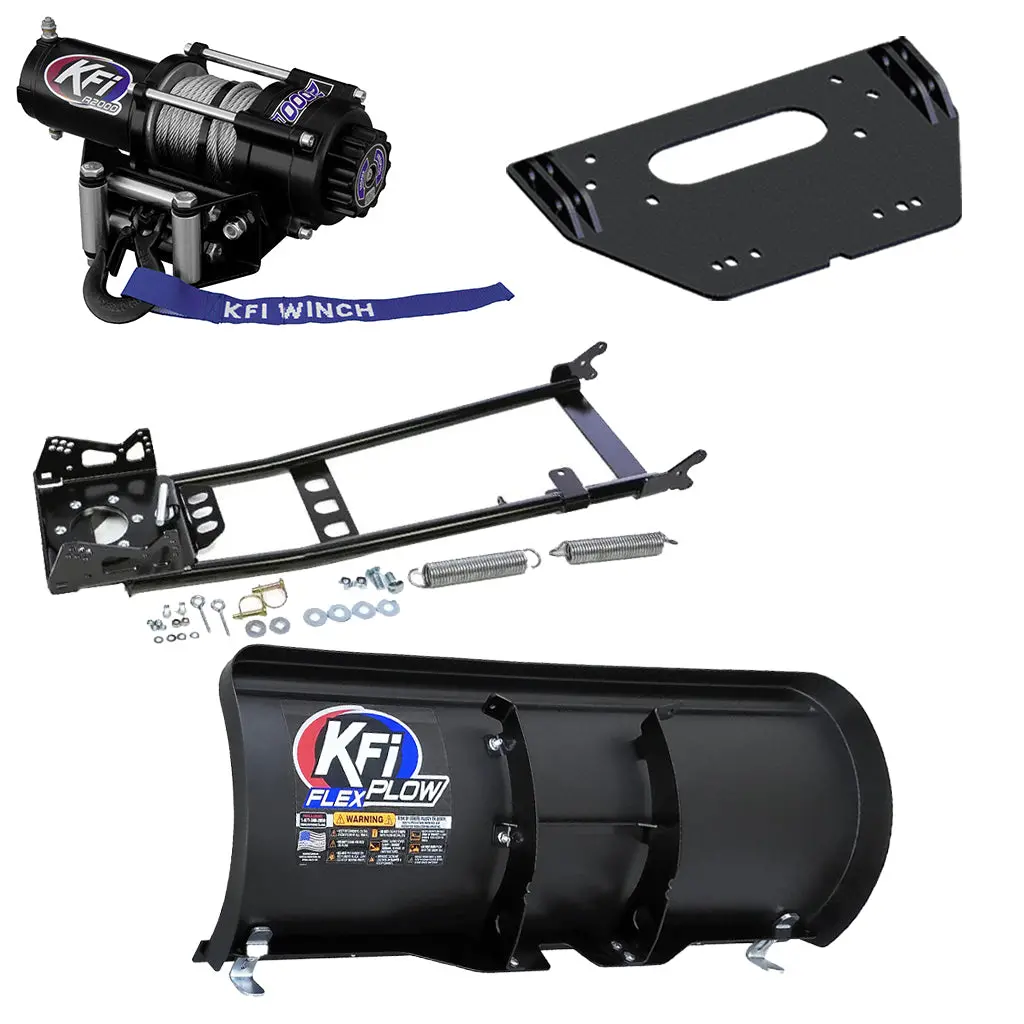

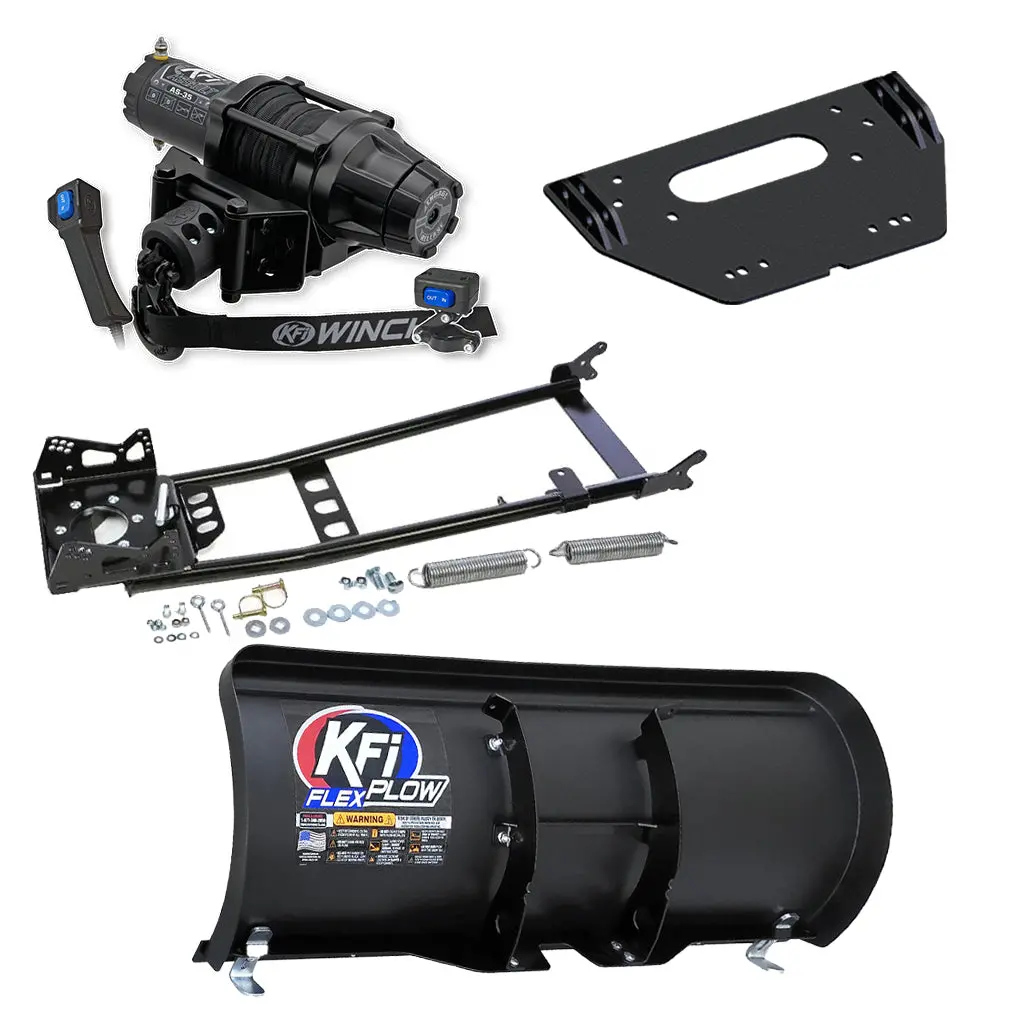

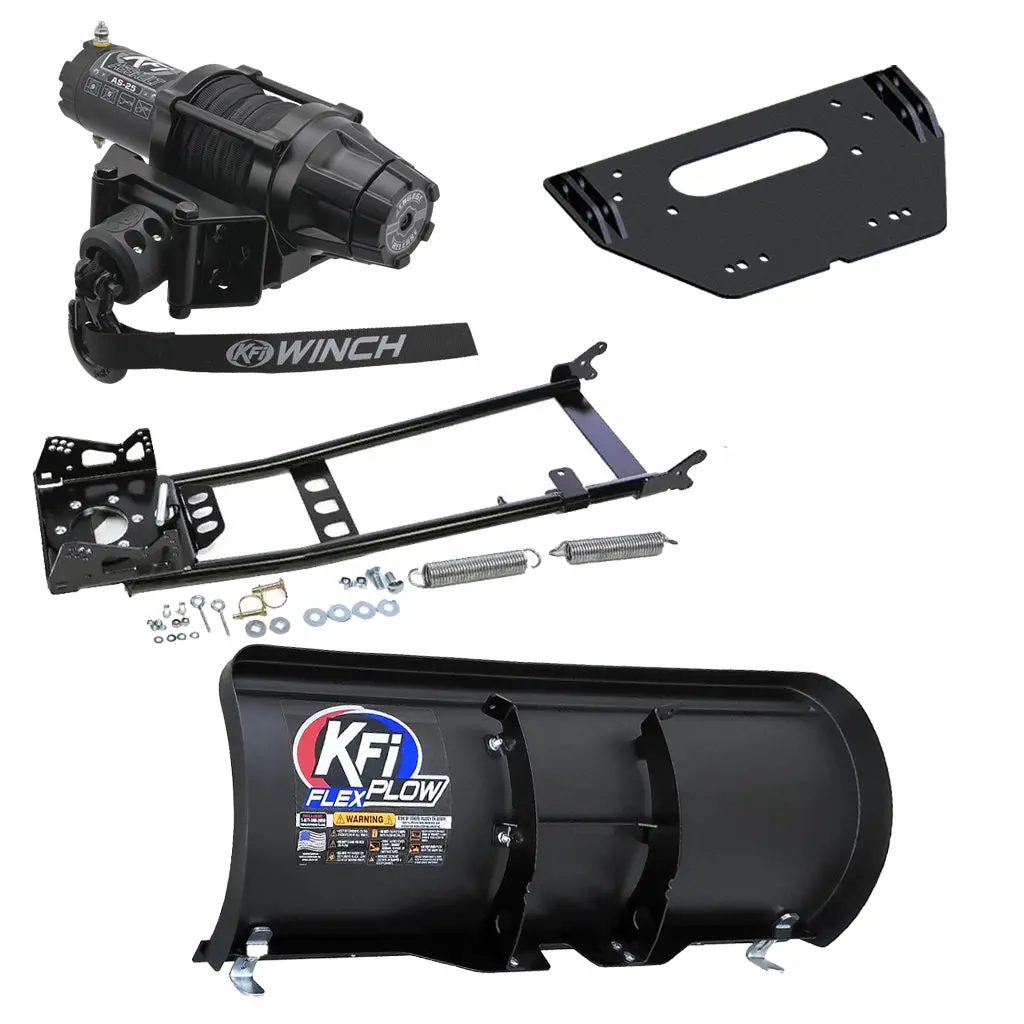

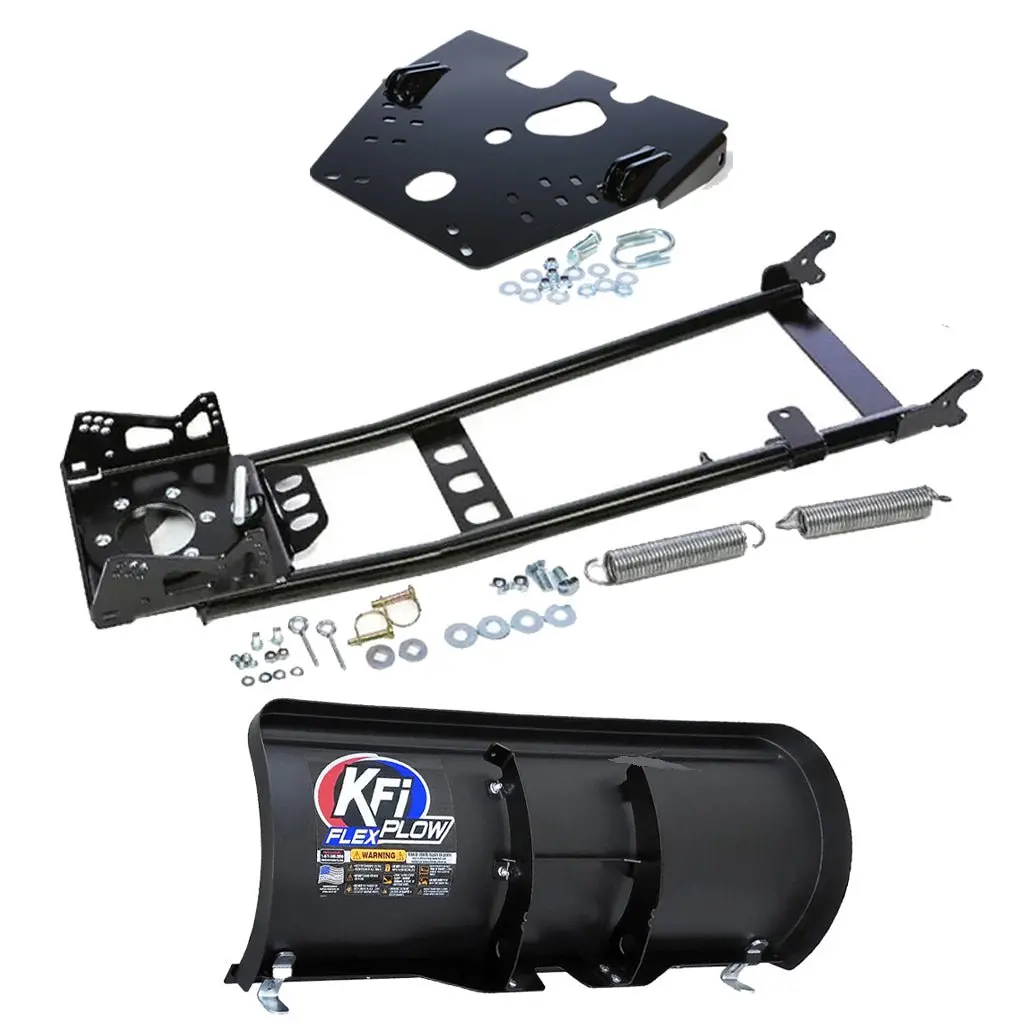

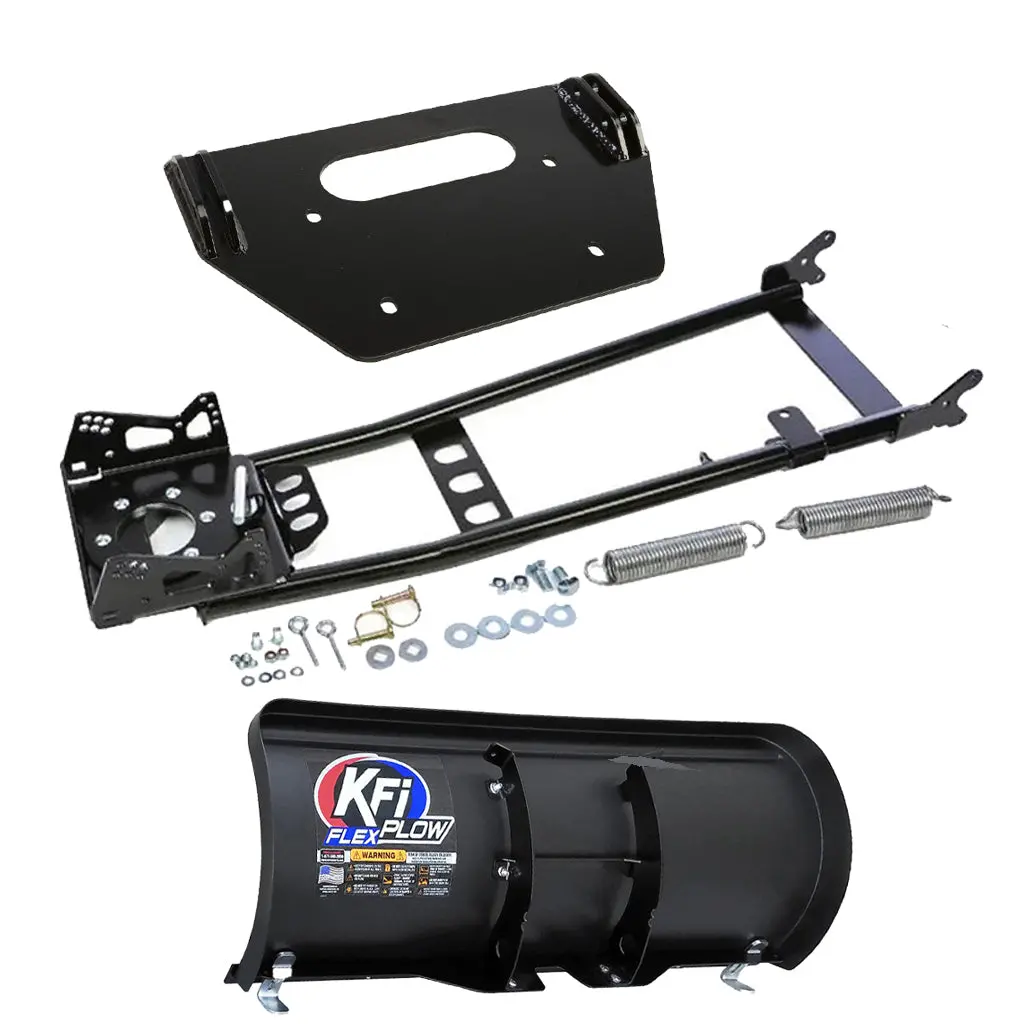

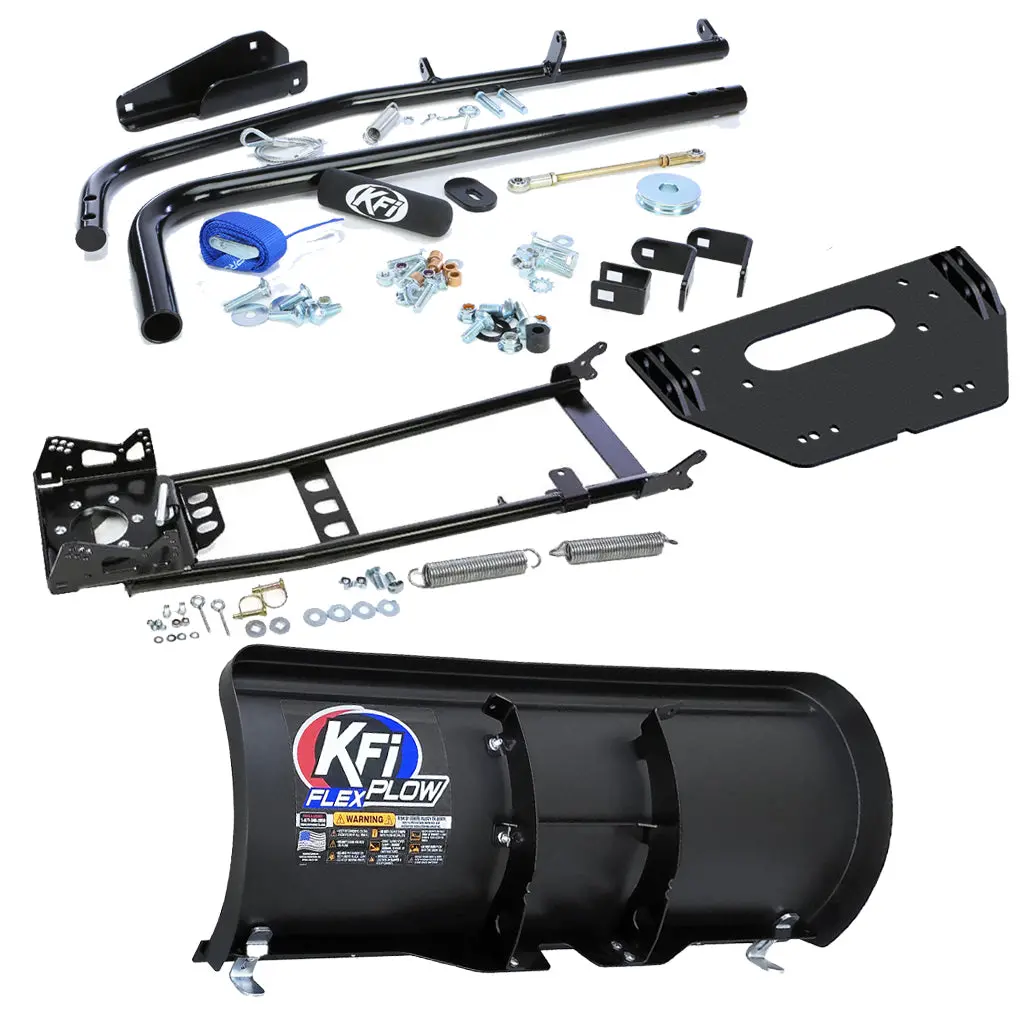

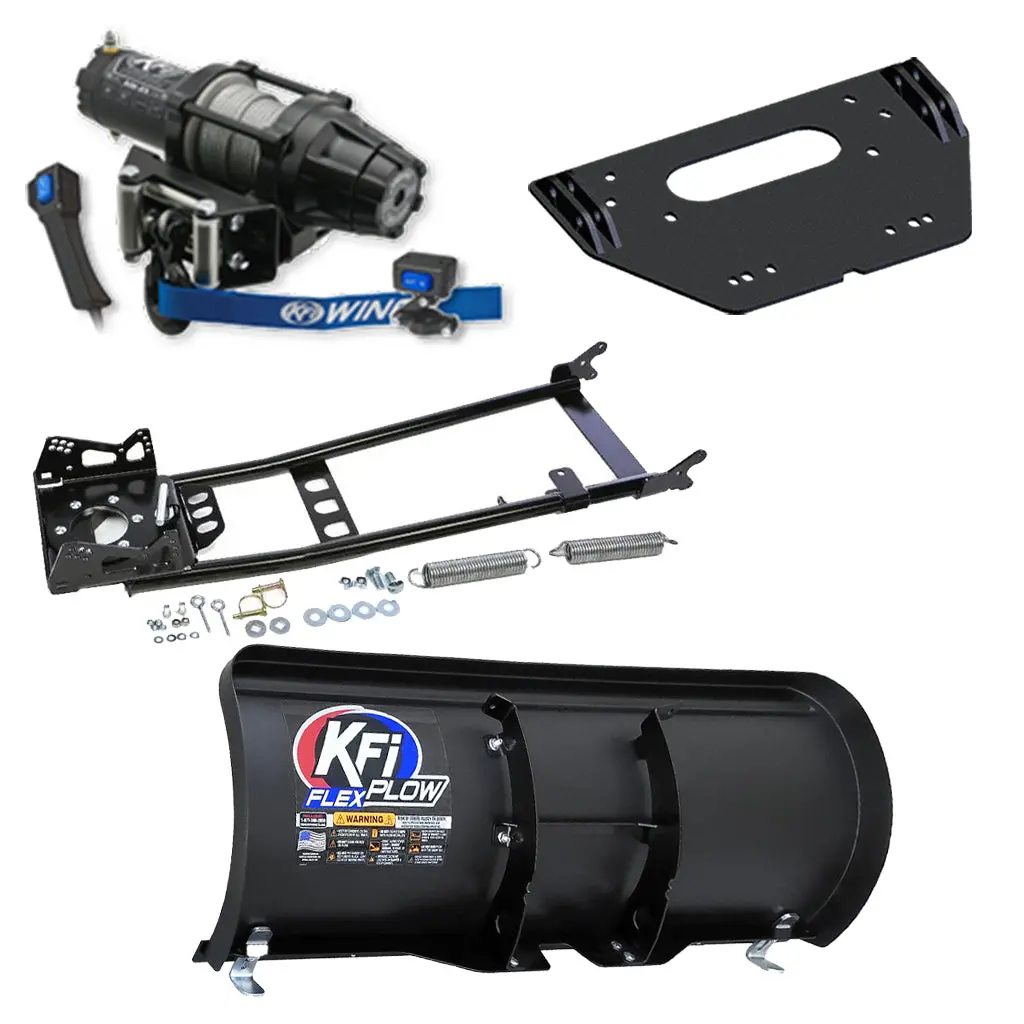

ATV Flex Plow Blade Specifications:
Rolls snow off to the side, great for continuous plowing of long driveways and paths
100% MADE IN USA
Lightweight Blade fully assembled at 25lbs.
50 inch width Flexible Black Poly Vacuum formed face
3/16 inch and 10 gauge Grade 50 Steel Rib and Frame construction
Shot Blasted and Powder Coated Black
2-Sided 3/16 inch Grade 50 Steel wear bar
17 inch vertical blade face height
Works with current KFI No.105000 or 105590 ATV Tube System
1/4 inch thick Adjustable Skids
Complete installation instructions included
All mounting hardware included
1-Year KFI Warranty

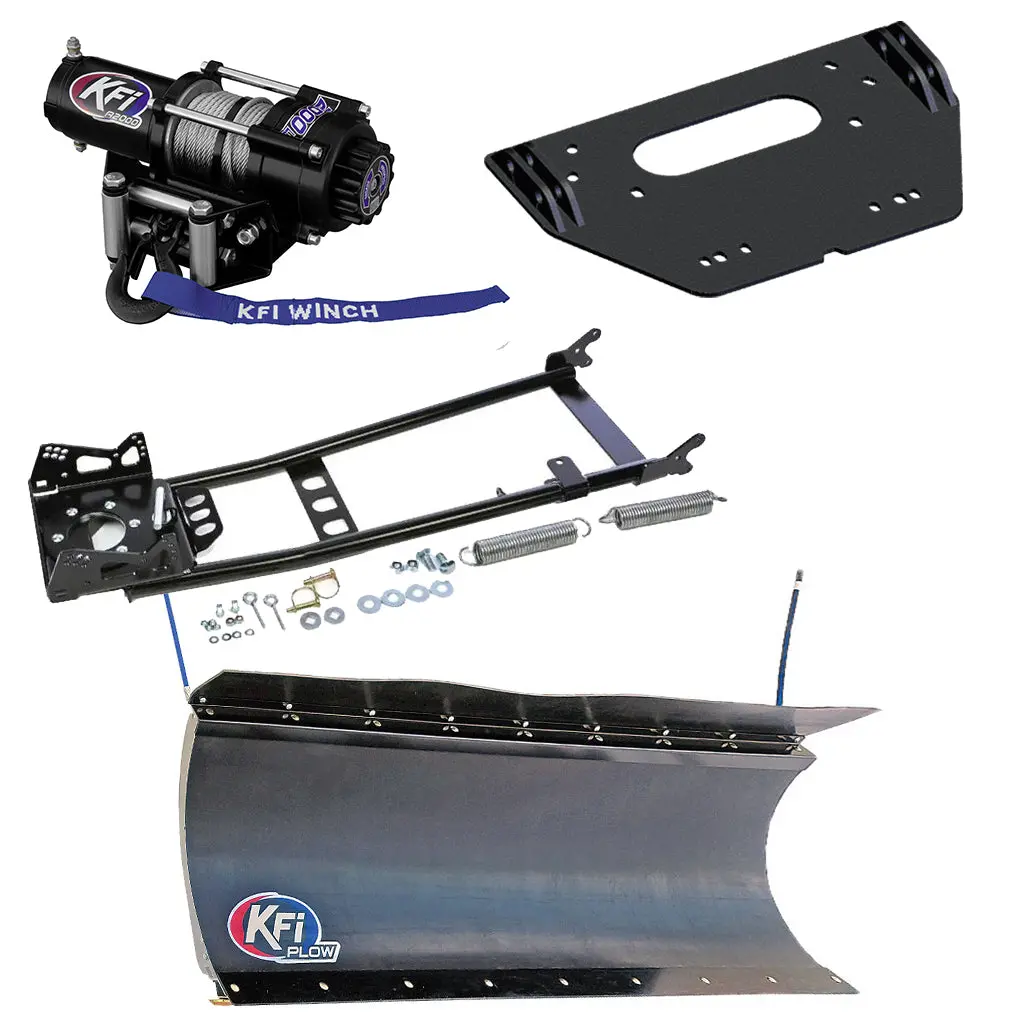

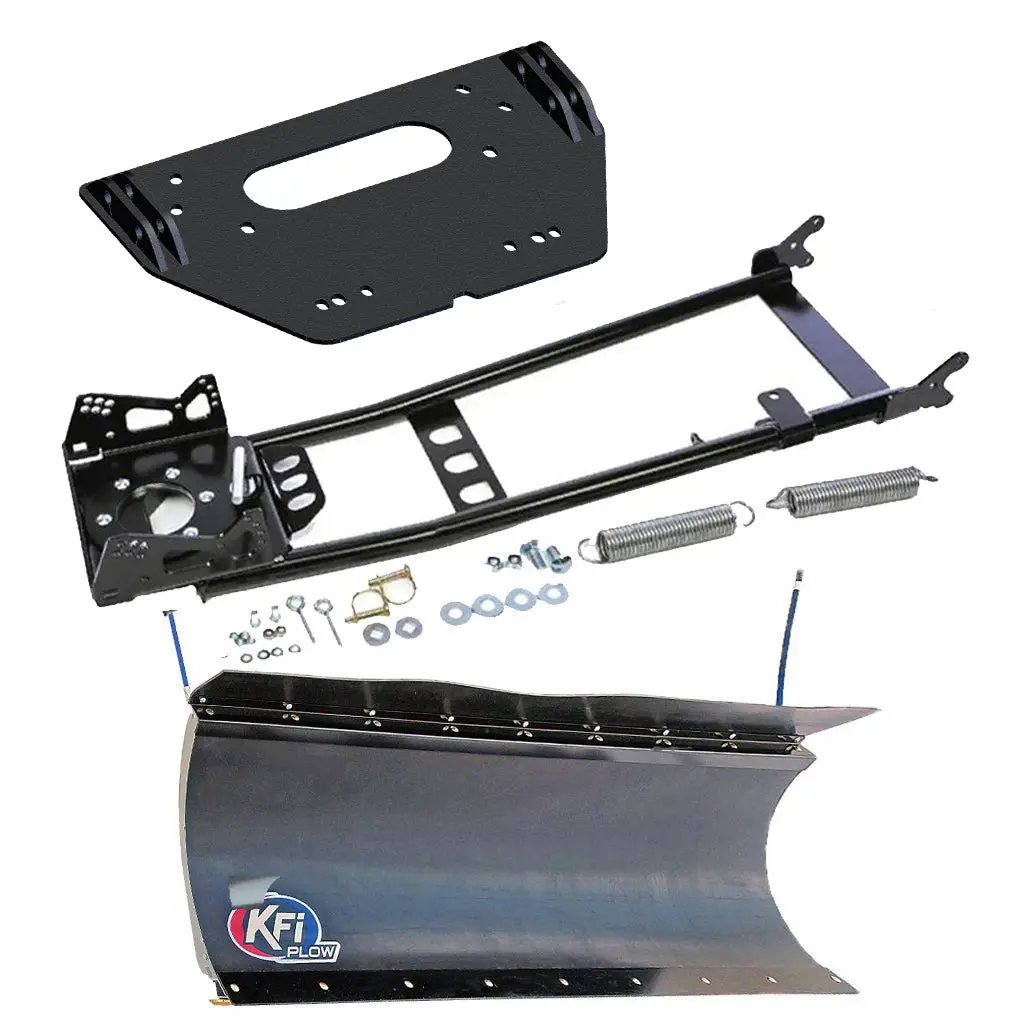

Poly Blade Specifications:
Includes a 7 inch high 2-ply top rubber flap
100% MADE IN USA
Dual Curvature face for supreme snow moving
Measures 21 inch Vertical blade face height with an approximate 27 inch height with snow flap
Fully-adjustable blade skids with bolt-on brackets
Heavy duty 3 inch -diameter grade-50 steel skid plates
Flexible Heavy Duty Black Poly face
3/16 inch Grade 50 Steel Rib and Frame construction
Unlike all other Plow competitors our Plows are metal bead blasted before they are Powder Coated Black for supreme durability
2-Sided 3/16 inch x 3.00 inch Grade 50 Steel Wear Bar
Wear Bar attached with Heavy Duty Grade 8 Bolts
Complete installation instructions included
Works with KFI ATV & UTV Tubes
Includes Plow Markers
2-Year KFI Warranty
