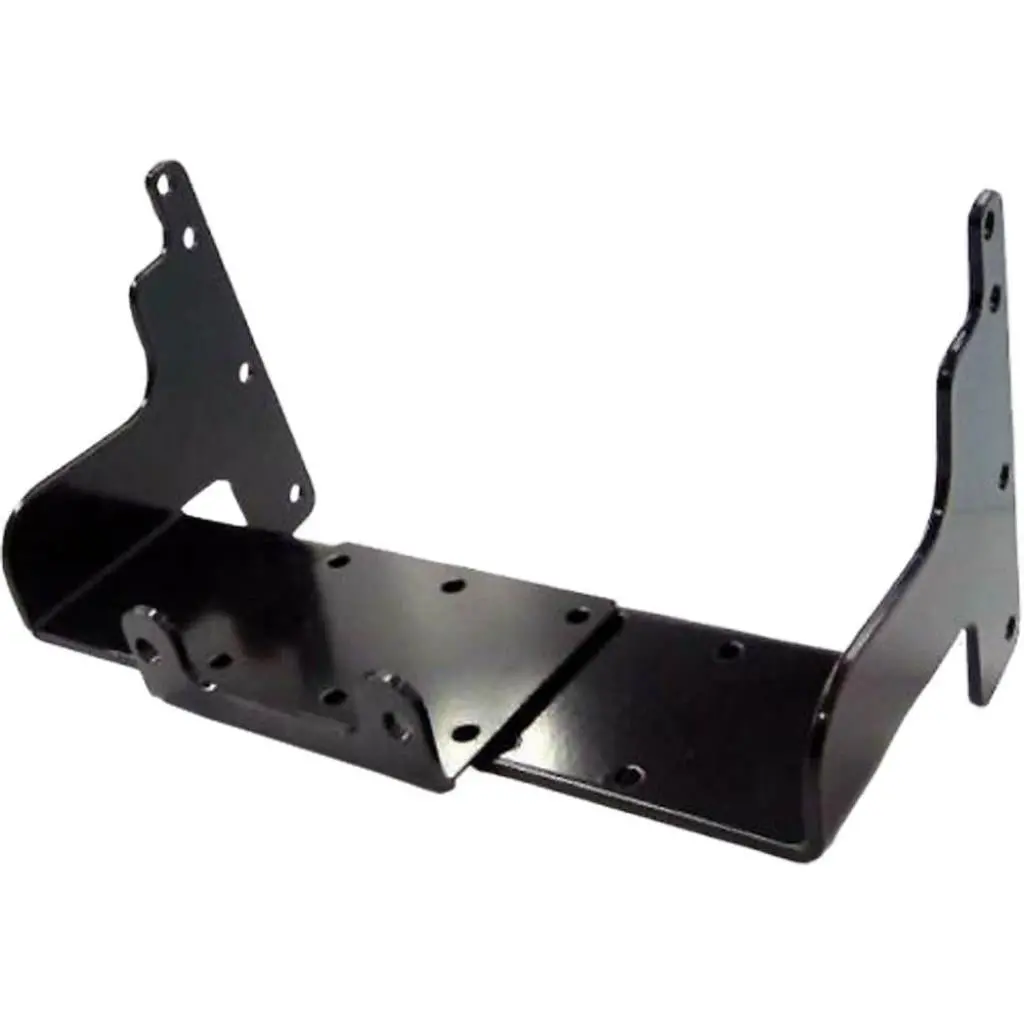

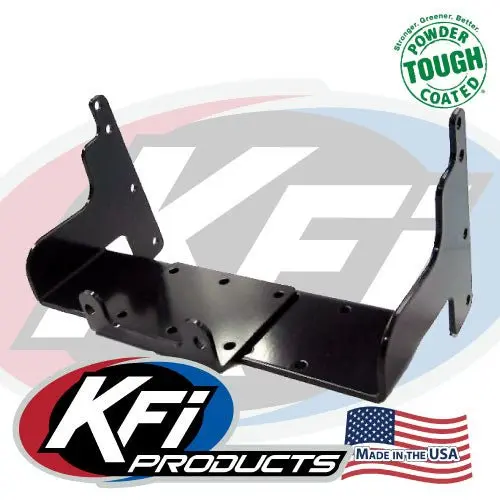

KFI Heavy-Duty Winch Mounting Plate – Model 100430

Description

Specifications:

• 100% MADE IN USA.
• Constructed of 3/16″ steel.
• Unlike all other mount competitors our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
• Powder coated black for supreme durability.
• Does NOT work with Polaris OEM Brush Guard or Double Tube Bumper.
• Works with the new OEM Deluxe Brushguard #2874785-067.
• Complete installation instructions included.
• All mounting hardware included.
• Satisfaction guaranteed.
• Roller fairlead and winch not included.

Designed to work with the following winches:

• KFI: ST17 / A2000 / A2500-R2 / A3000 / SE25 / SE35
• KFI: AM-25 / AM-35 / AS-25 / AS-35
• KFI: U45-R2 / SE45-R2
• KFI: AS-50 (requires purchase of ATV-MR)
• WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
  • Requires Roller Fairlead Bracket #101715
• WARN: AXON 35 / AXON 35-S / AXON 45RC
  • Requires Roller Fairlead Bracket #101715
• WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce
• WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
• WARN: Vantage 2000-3000lbs / Provantage 2500-3500lbs
• RAMSEY: ATV2500 / ATV3000
• SUPERWINCH:Terra25 / Terra35 / Terra 2500 (SR) / Terra 3500 (SR) / A3500 / LT2000 / LT2500 / LT3000 / UT3000 / LT4000ATV / LT4000 (SR)
• MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
• MASTER LOCK: 1500lbs #2955AT
  • Requires roller fairlead with a 4.875″ bolt pattern; available if needed #ATV-RF.
  • Requires rrilling Two 3/8″ holes in plate to fit this winch.
• CYCLE COUNTRY: Work Power 1500 and 2500 / Powermax 2500, 3500
• BADLAND: 2-Hole Winches : 68146 / 61258 / 61297 / 61840

Fitment GEN. 4 CHASSIS

• 1995 Model Year
  –  Xplorer 400 4×4
• 1996 Model Year
  –  Sportsman 500 4×4
  –  Xplorer 300 4×4
  –  Xplorer 400 4×4
• 1997 Model Year
  –  Sportsman 500 4×4
  –  Xplorer 300 4×4
  –  Xplorer 400 4×4
  –  Xplorer 500 4×4
  –  Xpress 400 4×4
• 1998 Model Year
  –  Sportsman 500 4×4
  –  Sportsman 335 4×4
  –  Xplorer 300 4×4
  –  Xplorer 400 4×4
  –  Diesel 4×4
• 1999 Model Year
  –  Sportsman 500 4×4
  –  Sportsman 335 4×4
  –  Sportsman 500 6×6
  –  Xplorer 300 4×4
  –  Xplorer 400 4×4
  –  Magnum 500 4×4
  –  Diesel 4×4
• 2000 Model Year
  –  Sportsman 500 4×4
  –  Sportsman 500 Remington SE 4×4
  –  Sportsman 335 4×4
  –  Sportsman 500 6×6
  –  Magnum 500 4×4
  –  Magnum 325 4×4
  –  Xpedition 325 4×4
  –  Xpedition 425 4×4
  –  Xplorer 400 4×4
  –  Xplorer 400 2×4
  –  Diesel 4×4
• 2001 Model Year
  –  Sportsman 500 4×4
  –  Sportsman 500 H.O. 4×4
  –  Sportsman 500 H.O. Ducks Unlimited SE 4×4
  –  Sportsman 500 H.O. Remington SE 4×4
  –  Sportsman 400 4×4
  –  Sportsman 500 6×6
  –  Magnum 325 4×4
  –  Magnum 500 4×4
  –  Xpedition 325 4×4
  –  Xpedition 425 4×4
  –  Xplorer 400 4×4
  –  Xplorer 400 2×4
  –  Diesel 4×4
• 2002 Model Year
  –  Sportsman 500 H.O. 4×4
  –  Sportsman 500 H.O. Ducks Unlimited SE 4×4
  –  Sportsman 500 H.O. Remington SE 4×4
  –  Sportsman 400 4×4
  –  Sportsman 500 6×6
  –  Magnum 500 4×4
  –  Magnum 500 RMK 2×4
  –  Magnum 325 4×4
  –  Xpedition 425 4×4
  –  Xpedition 325 4×4
  –  Xplorer 400 4×4
  –  Xplorer 400 2×4
  –  Diesel 4×4
  –  PVT 4×4
  –  PVT 6×6
• 2003 Model Year
  –  Sportsman 500 H.O. 4×4
  –  Sportsman 500 H.O. Mossy Oak 4×4
  –  Sportsman 400 4×4
  –  Sportsman 500 6×6
  –  Magnum 330 4×4
  –  Magnum 330 4×4 Mossy Oak
  –  Xpedition 425 4×4
  –  PVT 4×4
  –  PVT 6×6
• 2004 Model Year
  –  Sportsman 500 6×6
  –  Magnum 330 4×4
  –  ATP 500 H.O.
  –  ATP 330
• 2005 Model Year
  –  Sportsman 500 6×6
  –  Magnum 330 4×4
  –  ATP 500 H.O.
  – ATP 330
• 2006 Model Year
  –  Sportsman 500 6×6
  –  Magnum 330 4×4
• 2007-2008 Model Year
  –  Sportsman 500 6×6
