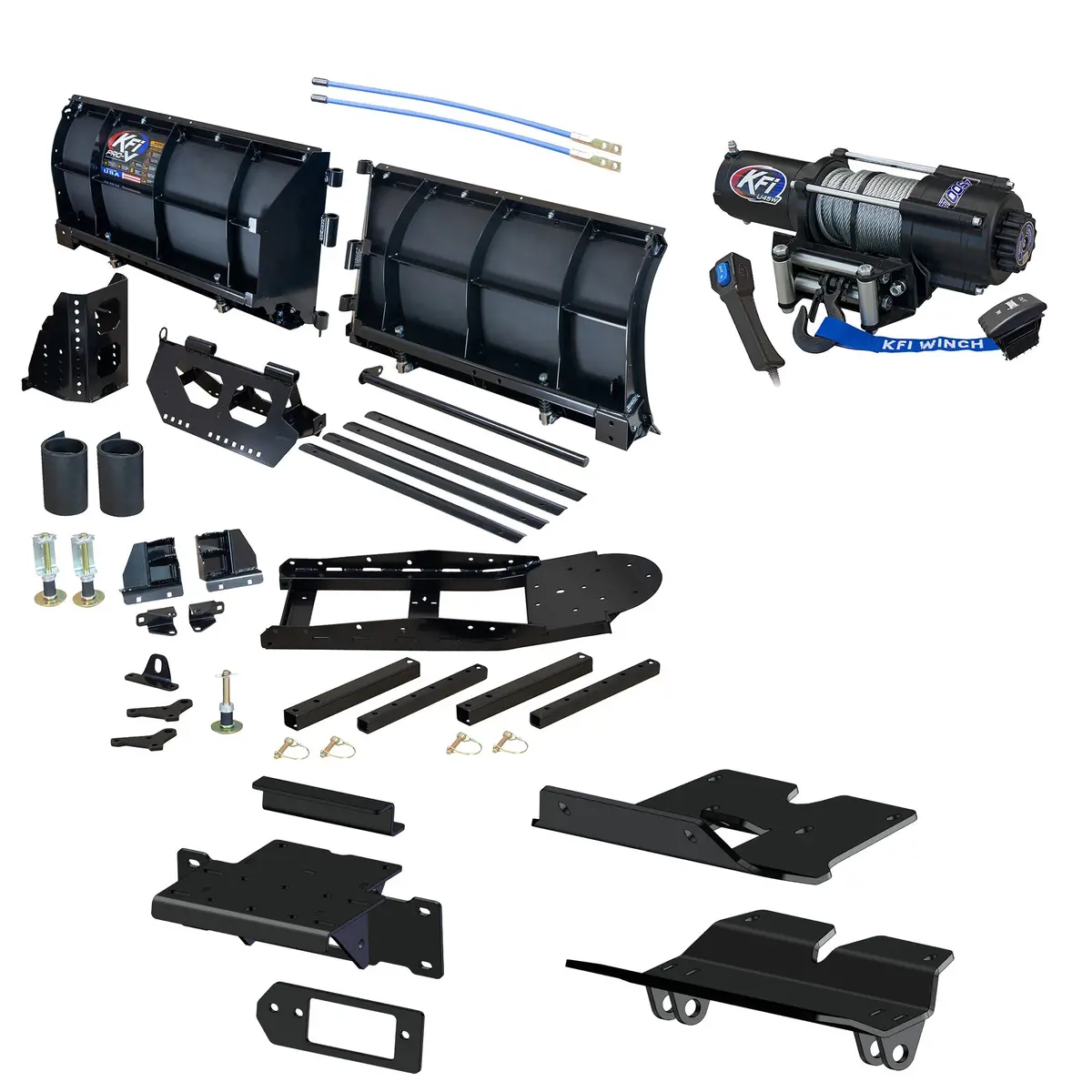

KFI Pro-V 80-Inch Snowplow Kit Compatible with Kawasaki Ridge 1000

Description

FITS:

Kawasaki Ridge (Base / HVAC / Limited HVAC / Ranch Edition): 2024-2025 (NOT Ridge XR)
Kawasaki Ridge Crew (HVAC): 2025 (NOT Ridge XR)

WARNING: Here is Ridge XR Kit Mojo hyperlink.  The U4500w & AS-50wx wide winches DO NOT FIT THE Ridge XR because of the front bumper attachment design.

var tag = document.createElement(‘script’); tag.src = “https://www.youtube.com/player_api”; var firstScriptTag = document.getElementsByTagName(‘script’)[0]; firstScriptTag.parentNode.insertBefore(tag, firstScriptTag); var player; function onYouTubePlayerAPIReady() { player = new YT.Player(‘ytplayer’, { height: ‘624’, width: ‘1024’, videoId: ‘6Bb39sl2NJw’ }); }

Pro-V Plow System Installation Instructions:

Plow Mount Installation Instructions:

Winch Mount Installation Instructions:



UTV Pro-V Plow System:

Specifications:

• 80″ Wide When Straight
• 75″ Wide in V-Shape
• 72″ Wide in Scoop
• 21” Vertical Blade Face Height with Approximate 28” Height w/ Snow Flap
• 4″ Integrated Height Adjustment (-1″ to +3″ in 1″ Increments)
• Steel Frame Design with Replaceable Poly Face
• Dual Curvature Face for Supreme Snow Moving
• Heavy Duty 3″ Diameter, Grade-50 Steel Skid Plates with Bolt-On Brackets
• Tripping Wear Bar
• Metal Bead Blasted, Then Powder Coated Black for Supreme Durability
• Weighs ~260lbs (~100-200lbs Lighter Than the Competition)
• MADE IN USA
• 2-Year Limited Warranty
• Accessories Coming Soon

Purchase Guide

Option #1:

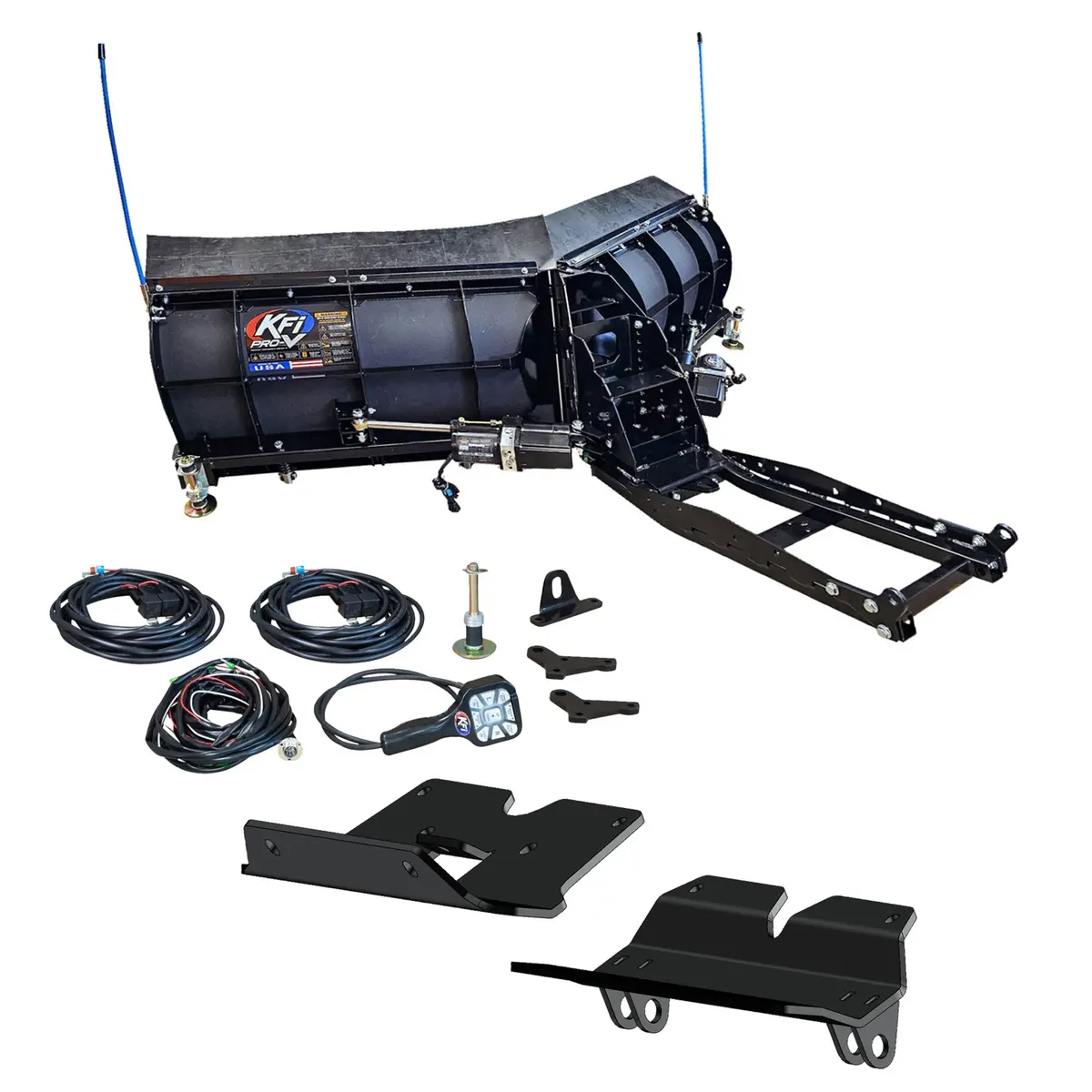

Pro-V UTV Plow System w/ Hand Remote Controlled Actuators

Components To Order	Included Components
106180-DS (Box 1) 106180-PS (Box 2) 106180-CP (Box 3) 106180-APH (Box 4)	Driver Side and Passenger Side Wings Center Pivot Bulkhead UTV Pro 2.0 Push Frame (2x) Hydraulic Actuators #ACT-203 Actuator Harness Kit with Hand Remote Standard Mounting Ears Premium Plow Markers Top Flap Kit Does NOT Include required Model Specific Plow Mount

---

Option #2:

Pro-V UTV Plow System w/ Dash Rocker Controlled Actuators

Components To Order	Included Components

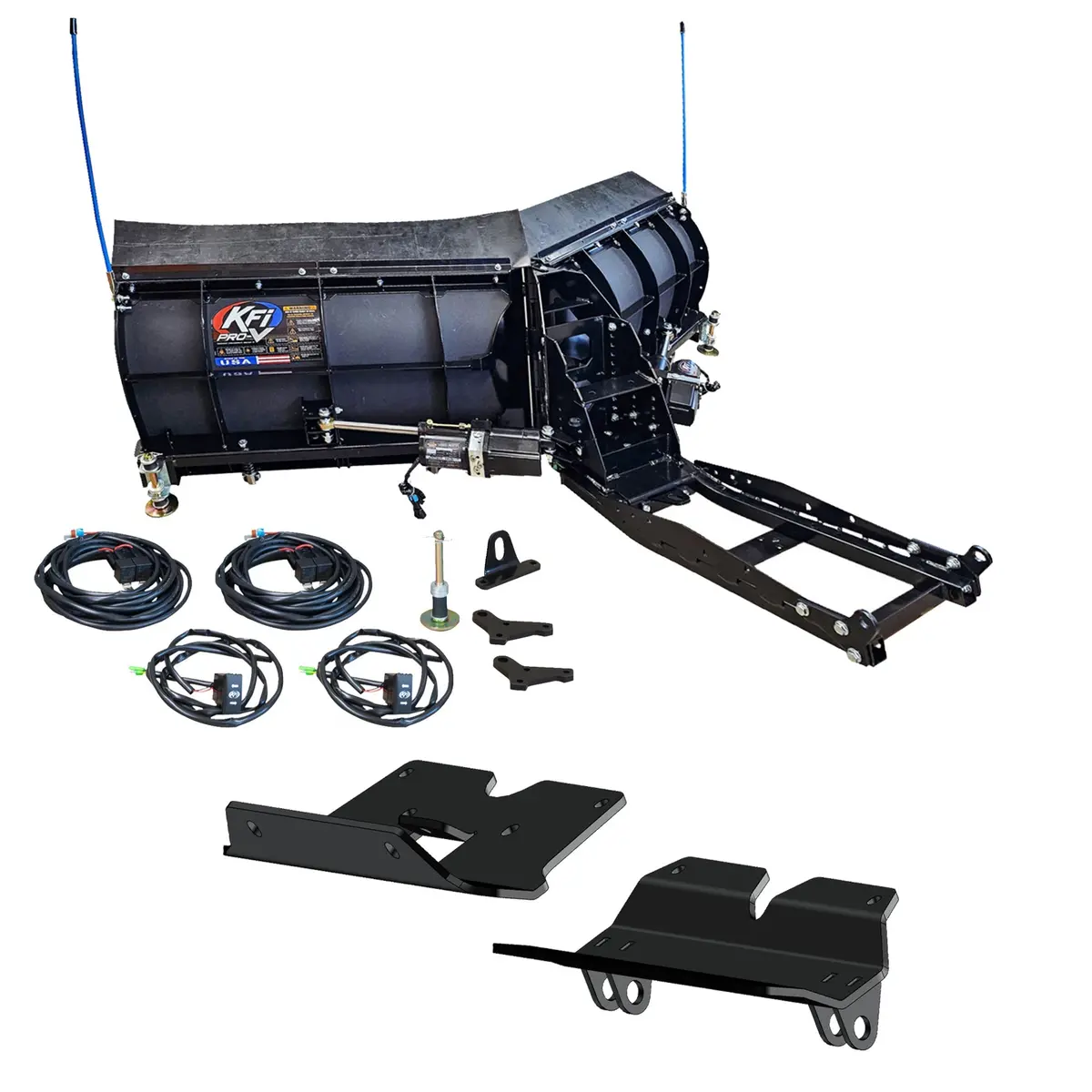

106180-DS (Box 1) 106180-PS (Box 2) 106180-CP (Box 3) 106180-AP (Box 4)	Driver Side and Passenger Side Wings Center Pivot Bulkhead UTV Pro 2.0 Push Frame (2x) Hydraulic Actuators #ACT-203 Actuator Harness Kit with (2x) Dash Mounted Rocker Switches Standard Mounting Ears Premium Plow Markers Top Flap Kit Does NOT Include required Model Specific Plow Mount

---

Option #3:

Pro-V UTV Plow System with Two Manual Angle Adjustment Bars

Components To Order	Included Components

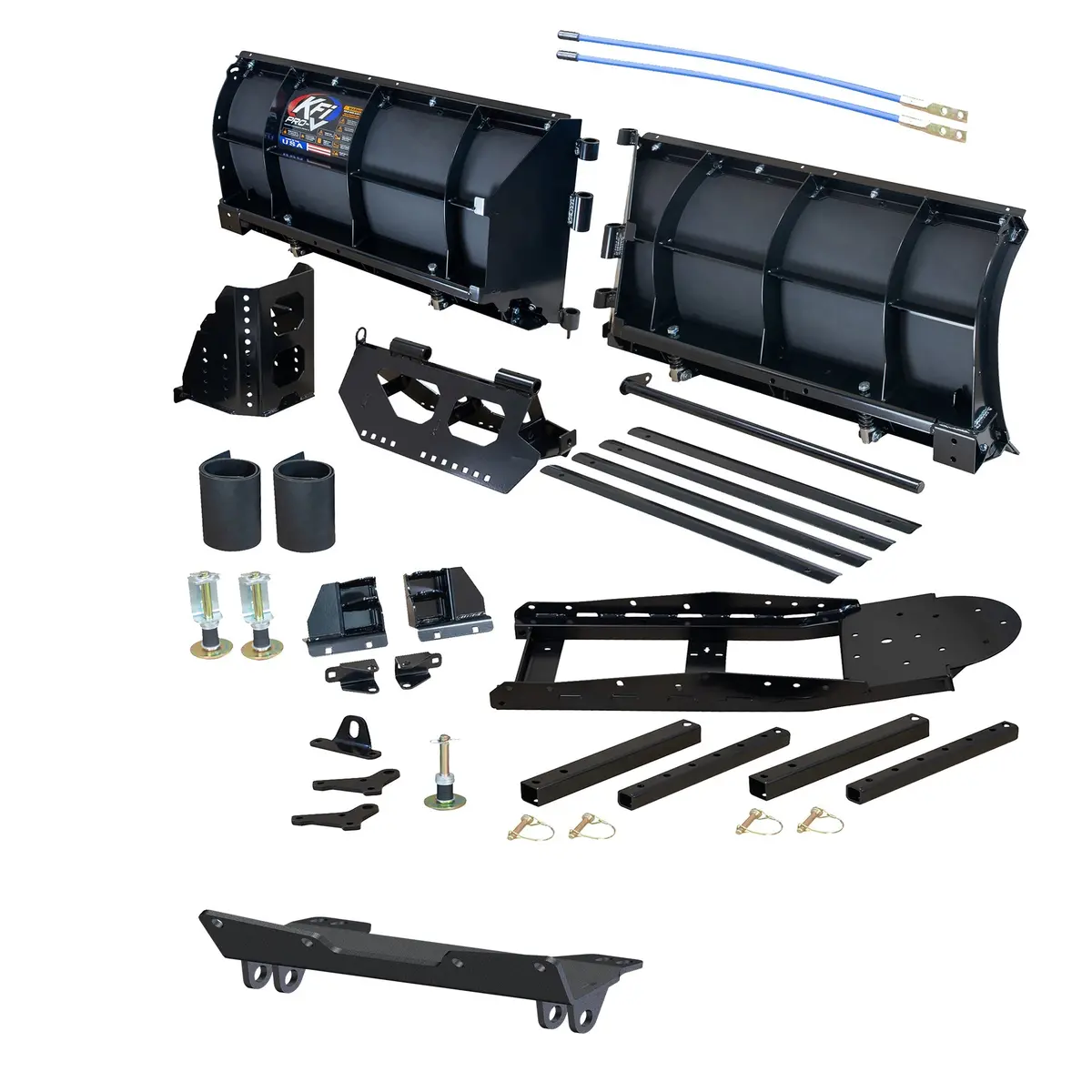

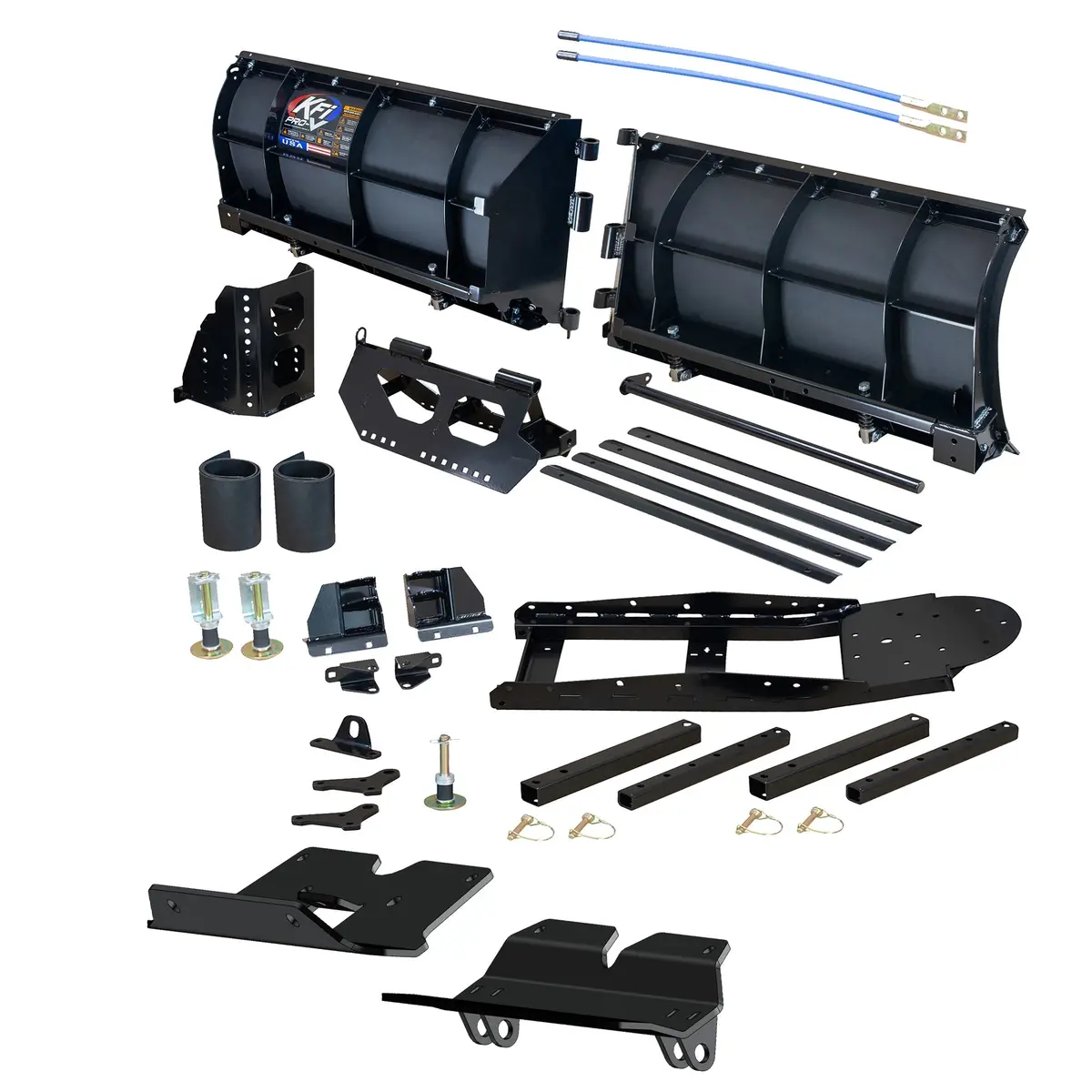

106180-DS (Box 1) 106180-PS (Box 2) 106180-CP (Box 3) 106180-MP (Box 4)	Driver Side and Passenger Side Wings Center Pivot Bulkhead UTV Pro 2.0 Push Frame Manual Angling Kit #106530 Standard Mounting Ears Premium Plow Markers Top Flap Kit Does NOT Include required Model Specific Plow Mount

UTV Model Specific Plow Mount Specifications:

• 100% Made in the USA
• Front Lower Plow Mount System: Allows for easy attachment and removal of the plow.
• Uses Two Standard 5/8″ Hitch Pins for Secure Connection (comes with push tubes)
• Plate Material: Constructed from 3/16″ thick grade 50 steel for durability and strength.
• Plow Mounting Tabs: Made from 1/4″ thick grade 50 steel to ensure a secure fit.
• Superior Finish Preparation: Unlike competitors, products undergo metal bead blasting before powder coating to provide the best possible finish.
• Powder Coated Black: Ensures supreme durability and corrosion resistance.
• Installation: Comes with complete instructions for hassle-free installation.
• All Necessary Hardware Included: Provides all the mounting hardware needed for installation.

This mount offers a robust and durable option for UTV plowing needs, ensuring long-lasting performance and ease of use.

Winch Specifications:

Any winch selection will also receive a model-specific winch mount. Click links below to view winch specific details.

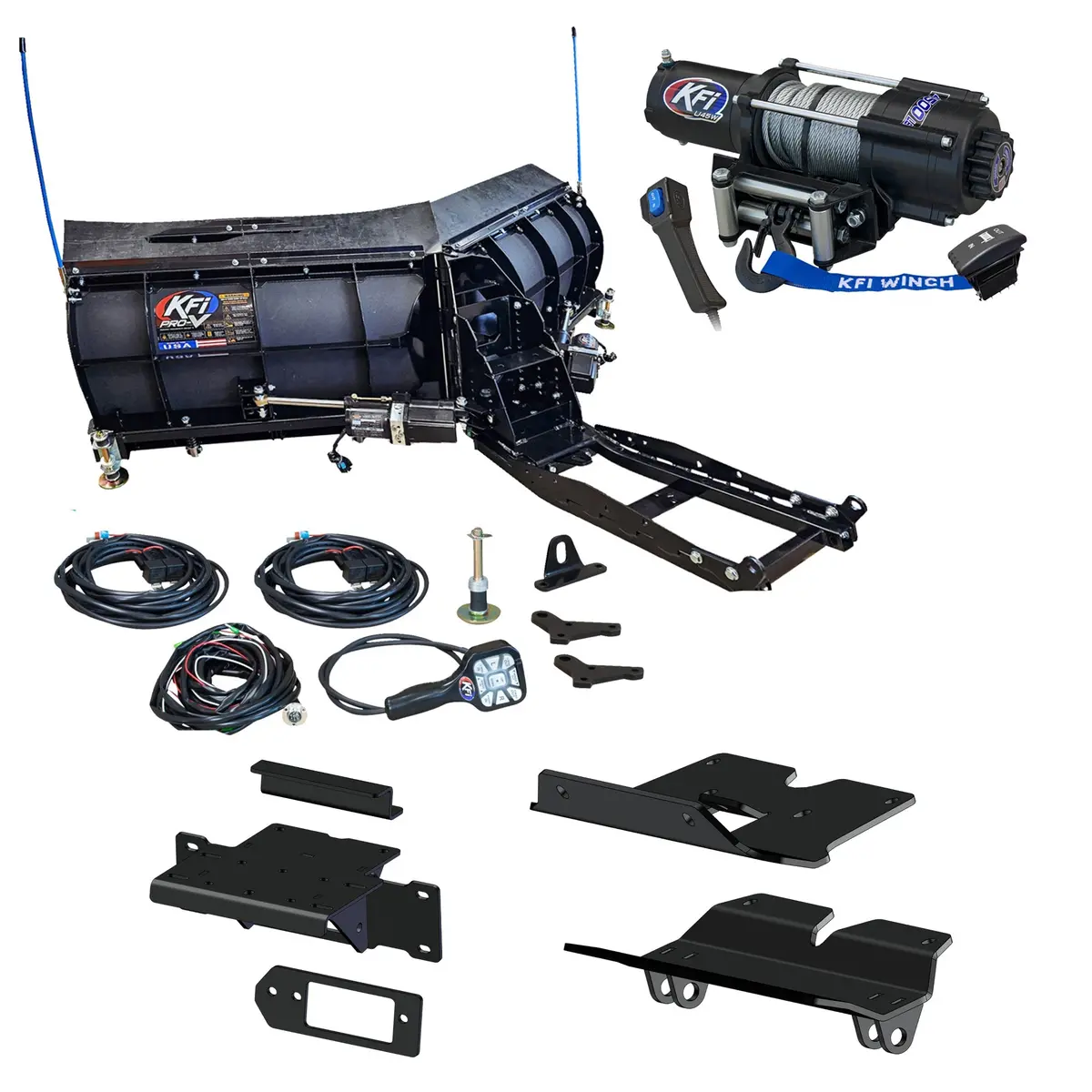

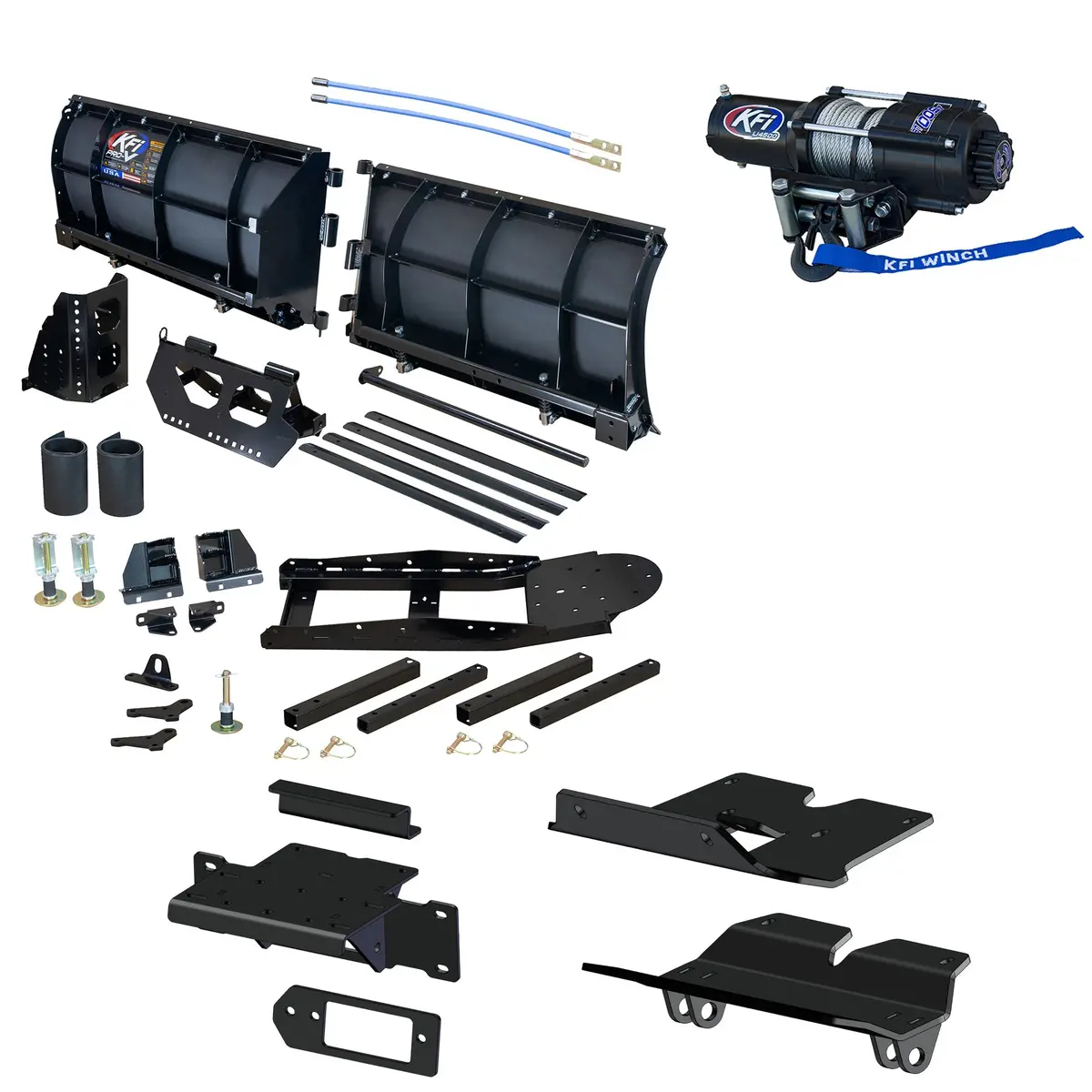

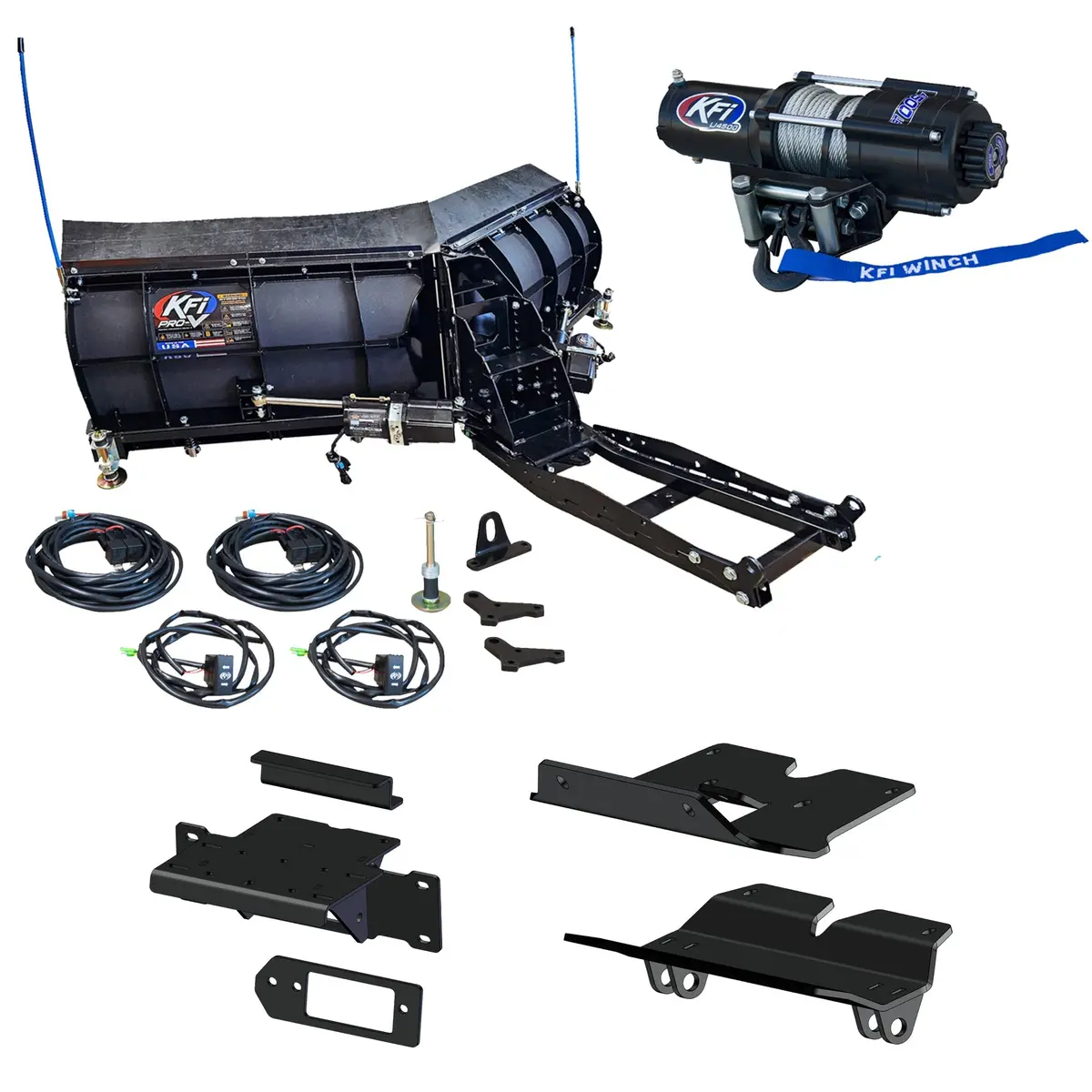

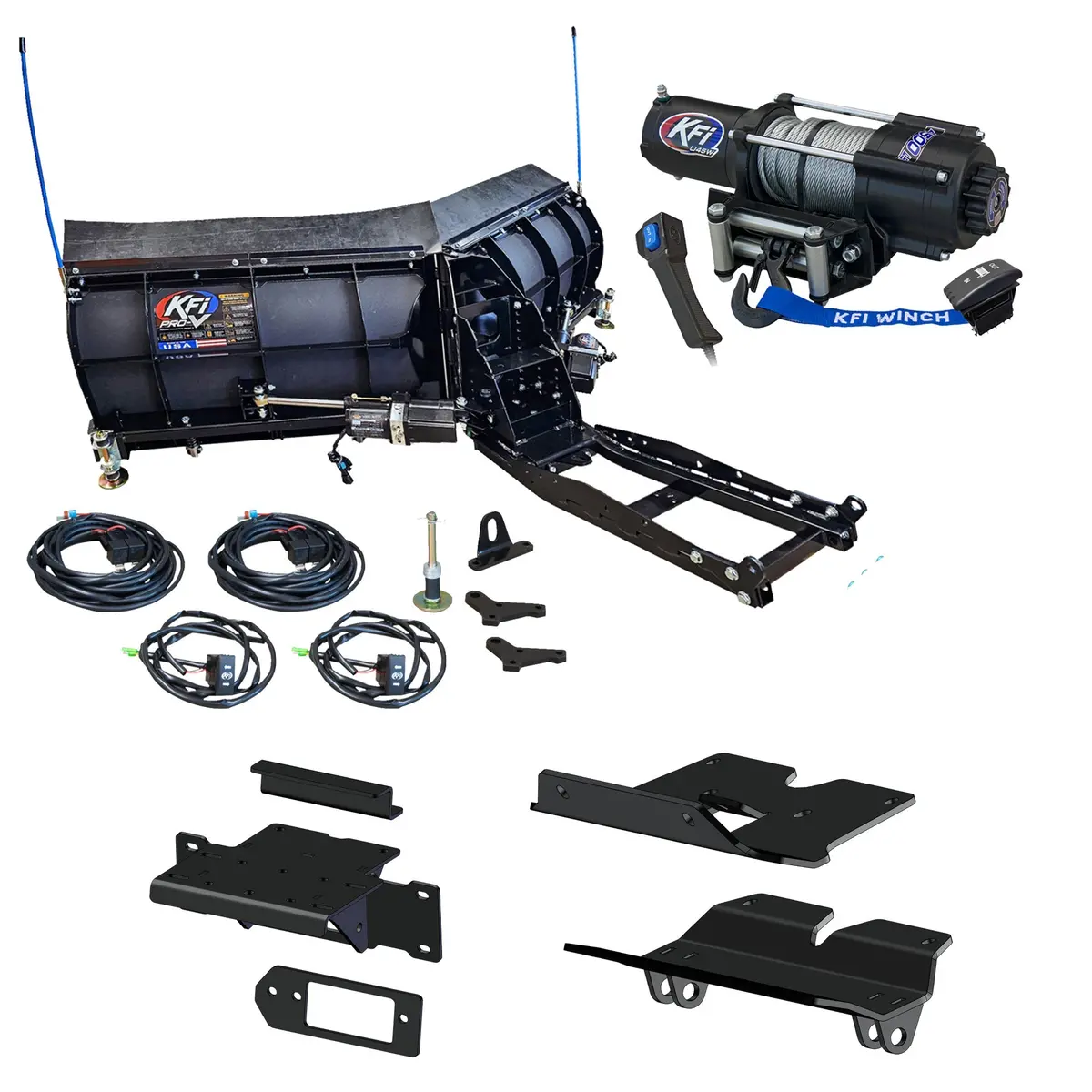

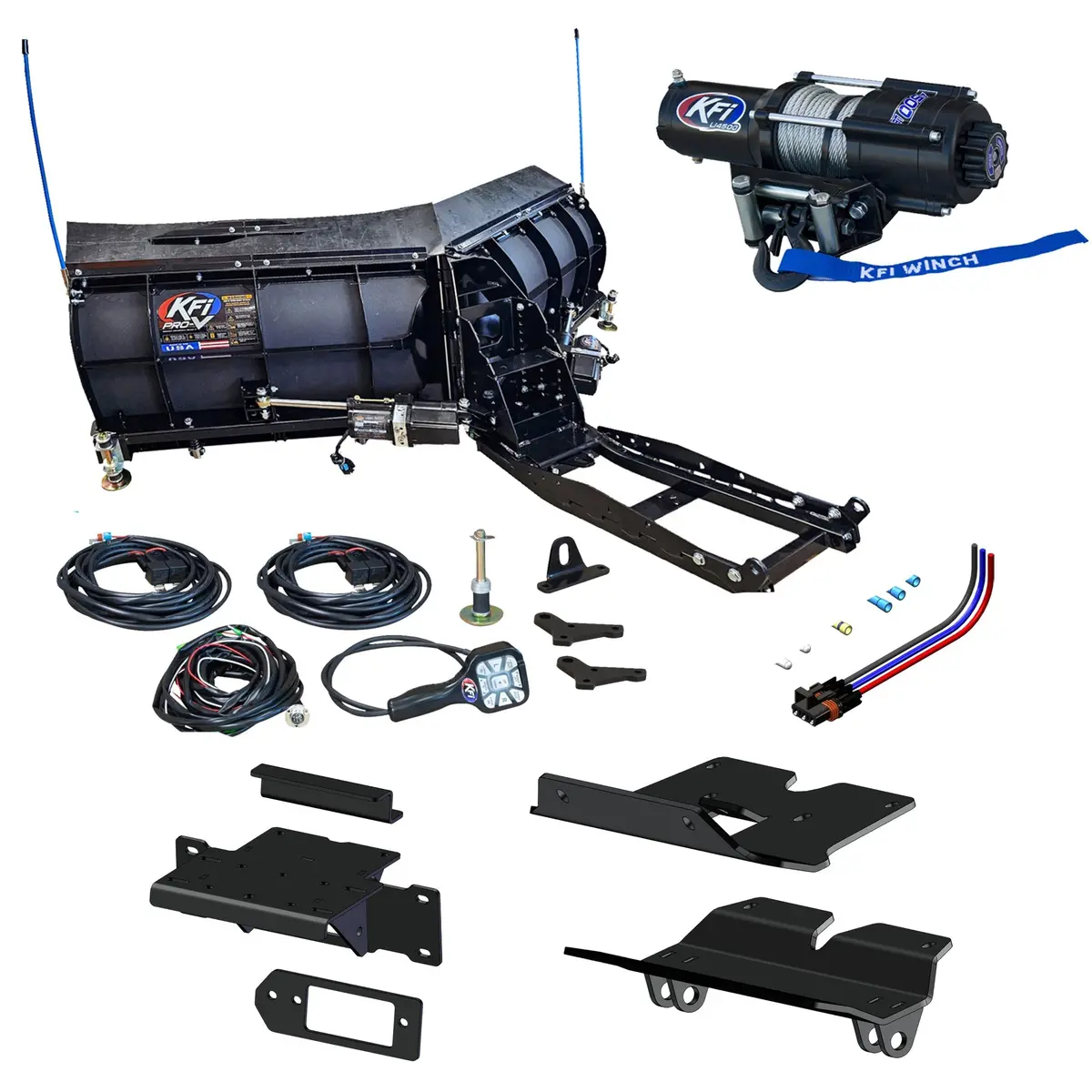

U4500 / U4500w  4,500lb Winch, Steel Cable

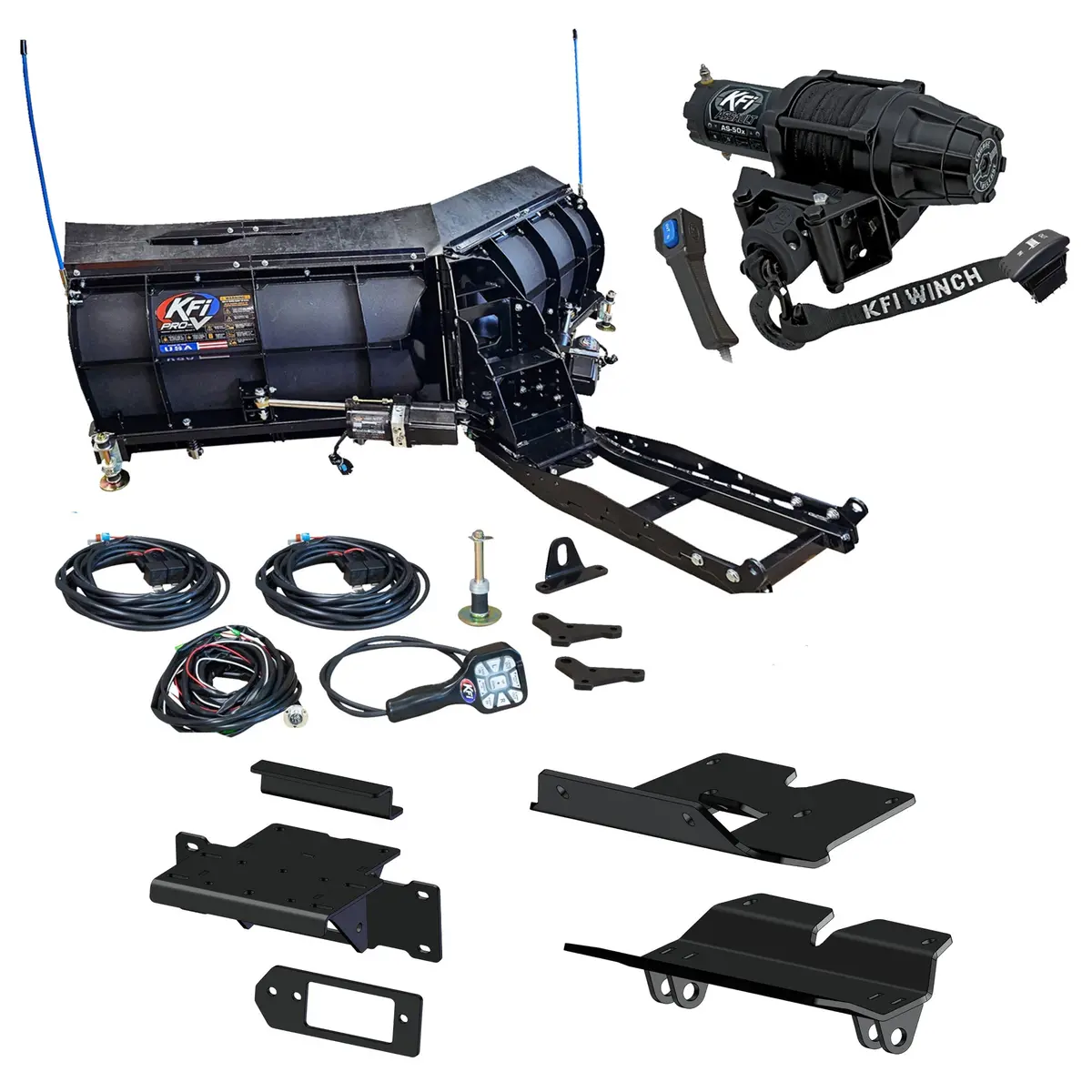

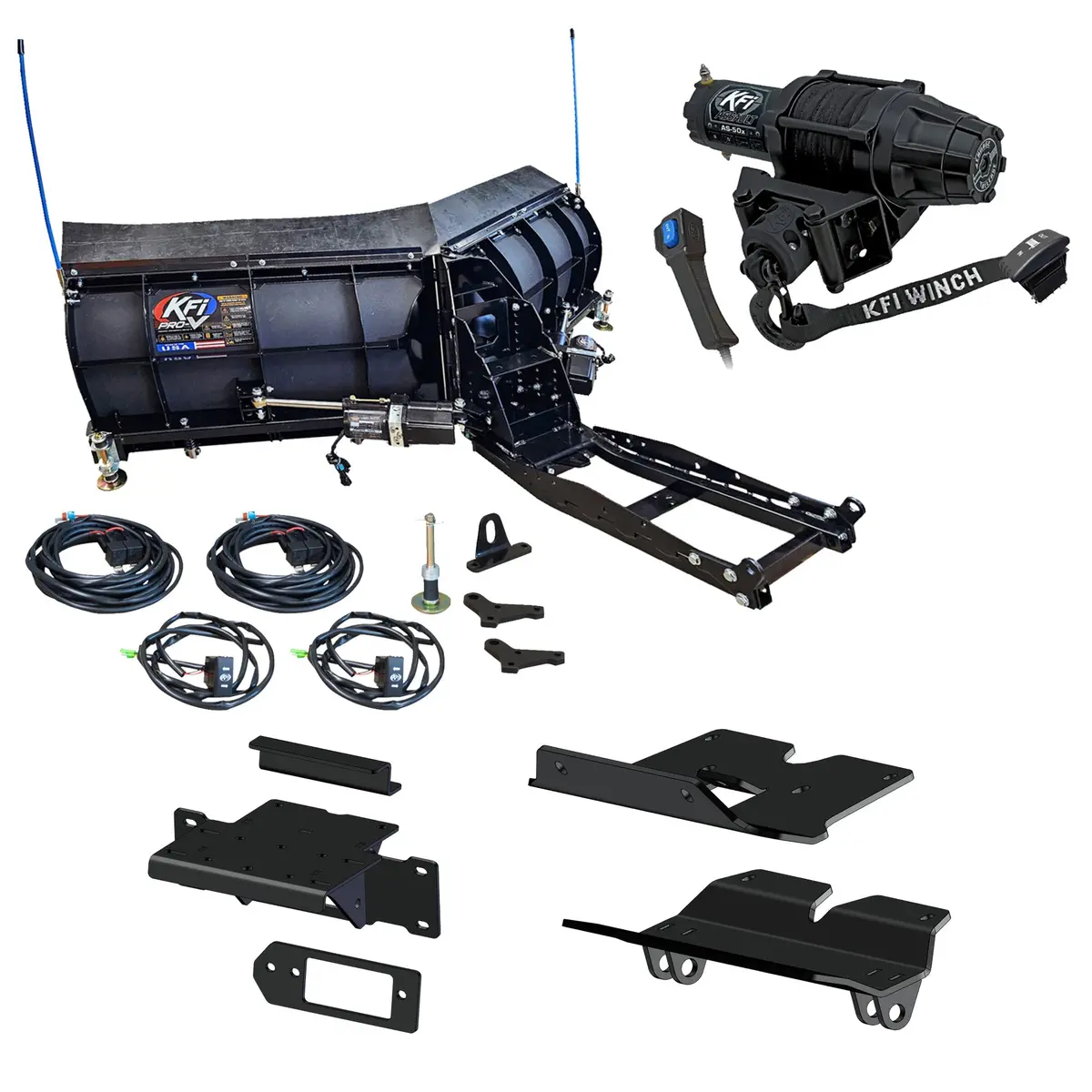

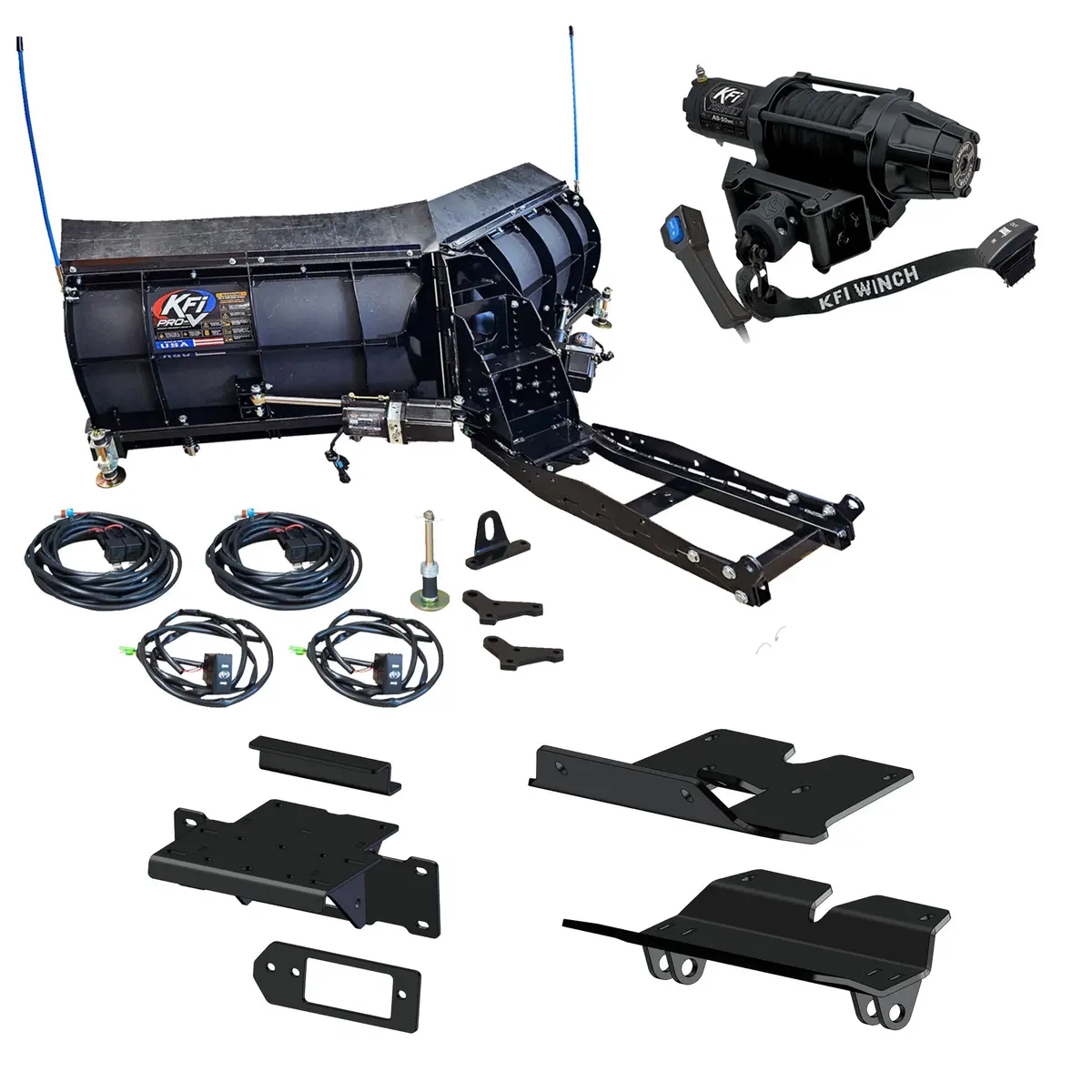

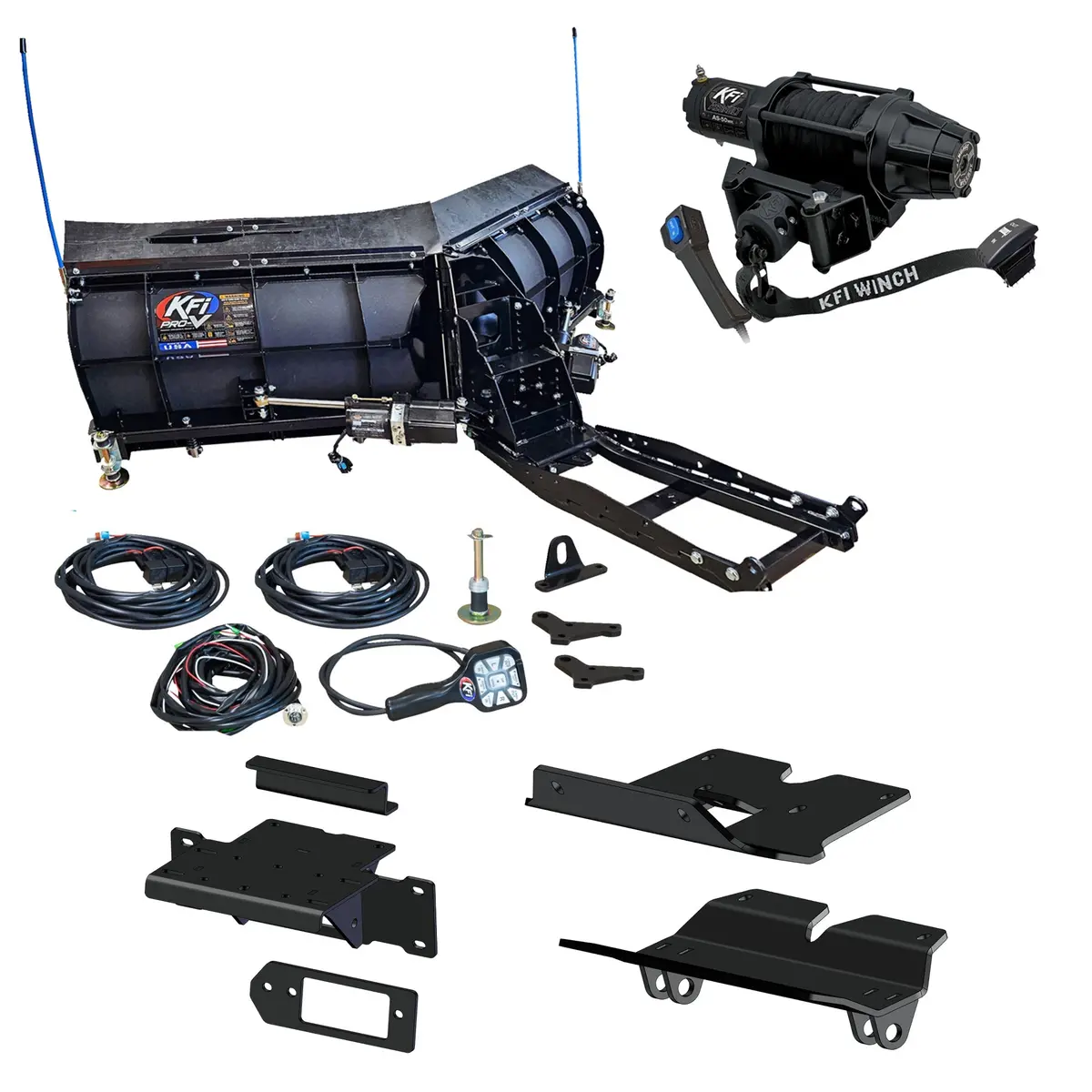

AS-50s / AS50wx  5,000 lb Winch, Synthetic  Cable
