Description
Product Code: 106180-DS
KFI V-Plow Installation Manual
Box 1 (#106180-DS) V-Plow Driver Side Wing

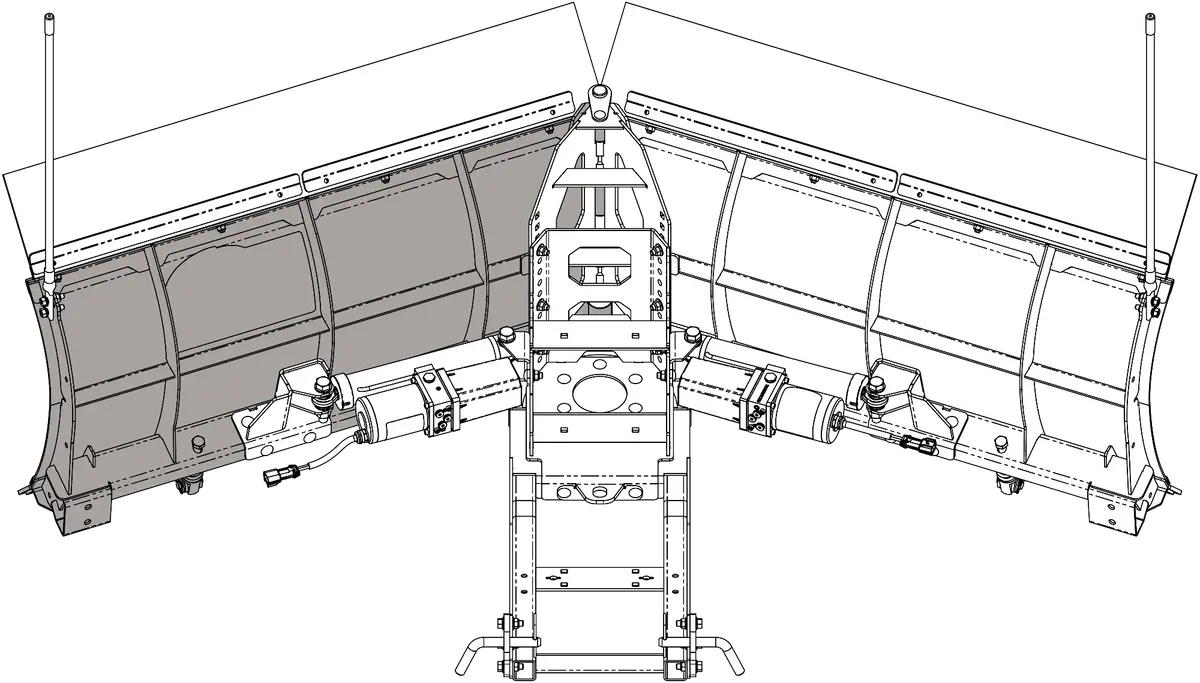

The KFI Pro V-Plow System is a versatile four-part plow system designed to meet various operational needs. It consists of four major components, with a specific machine model mount and winch system required (but not included) for operation. The system includes:
- Driver’s Side Wing Blade (#106180-DS)
- Passenger’s Side Wing Blade (#106180-PS)
- V-Plow Center Pivot Kit (#106180-CP)
- Options:
- Option #1 (#106180-APH): Includes a Hand Held All-Control KFI remote, two Electric Hydraulic Actuators, and the necessary electrical wiring.
- Option #2 (#106180-AP): Includes two Dash-Mounted LED-lit Rocker Switches, two Electric Hydraulic Actuators, and the necessary electrical wiring.
- Option #3 (#106180-MP): A Manual Operation system that uses tubes and pins, allowing manual adjustment of the wings independently in three positions: In, Out, and Straight.
All three Box #4 options also include essential components like the welded push frame, push tube mounting ears, and a single plow foot kit for the center of the V-Plow system.
Specifications:
- The Driver Side Wing for the KFI Pro-V Plow System (106180)
- Constructed of Heavy Duty Grade 50 Steel
- Overall Length of 40”
- 20.5″ Tall (Without Plow Flap *Not Included in Package)
- Shot Blasted Before Powder Coating Black
- Replaceable Front Poly Face
- Tripping Wear Bar
- Comes Assembled
