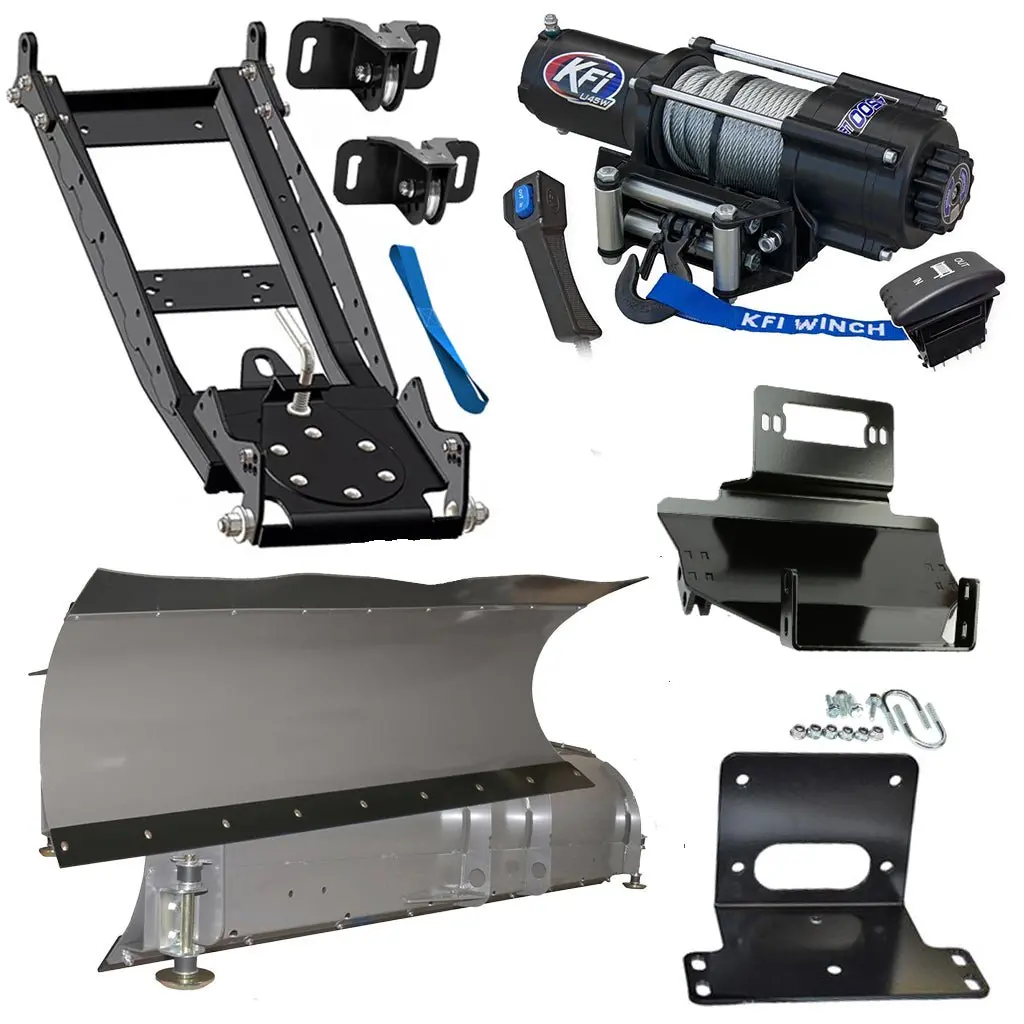

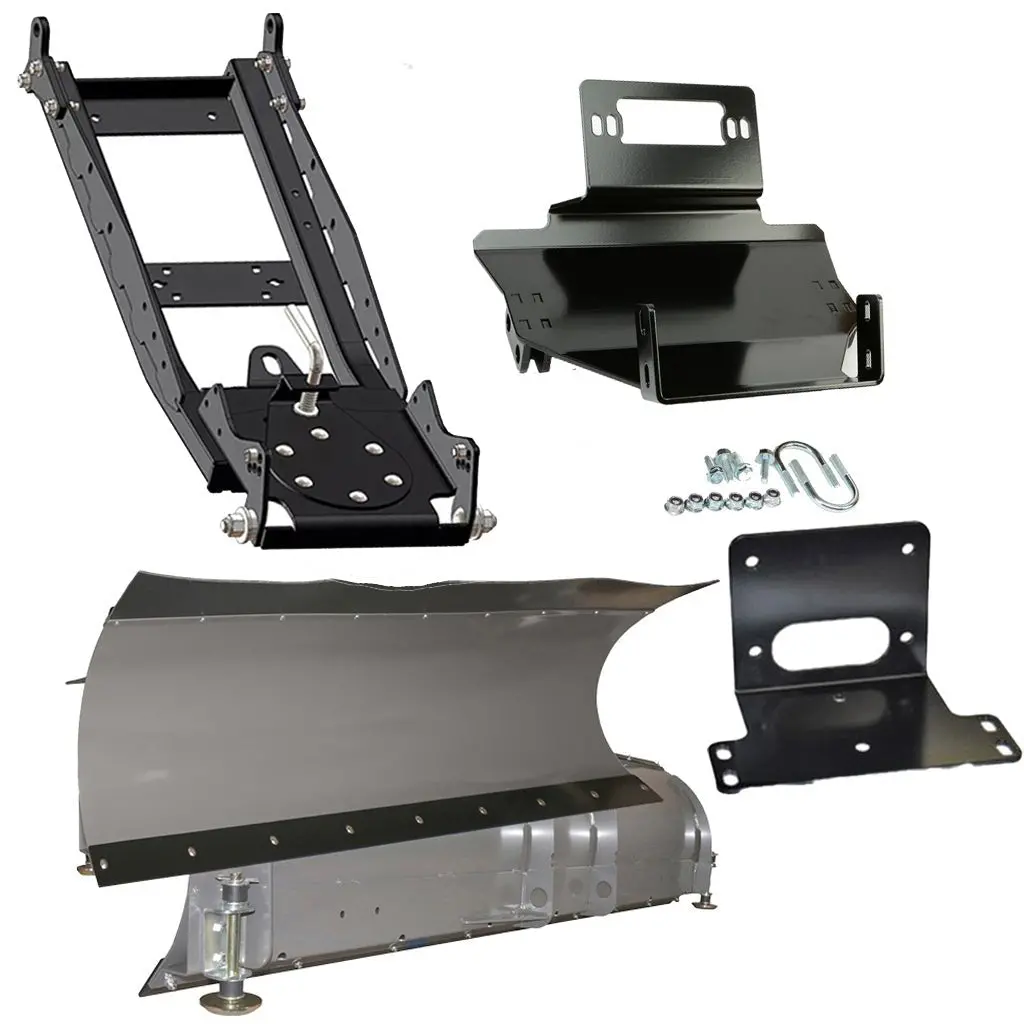

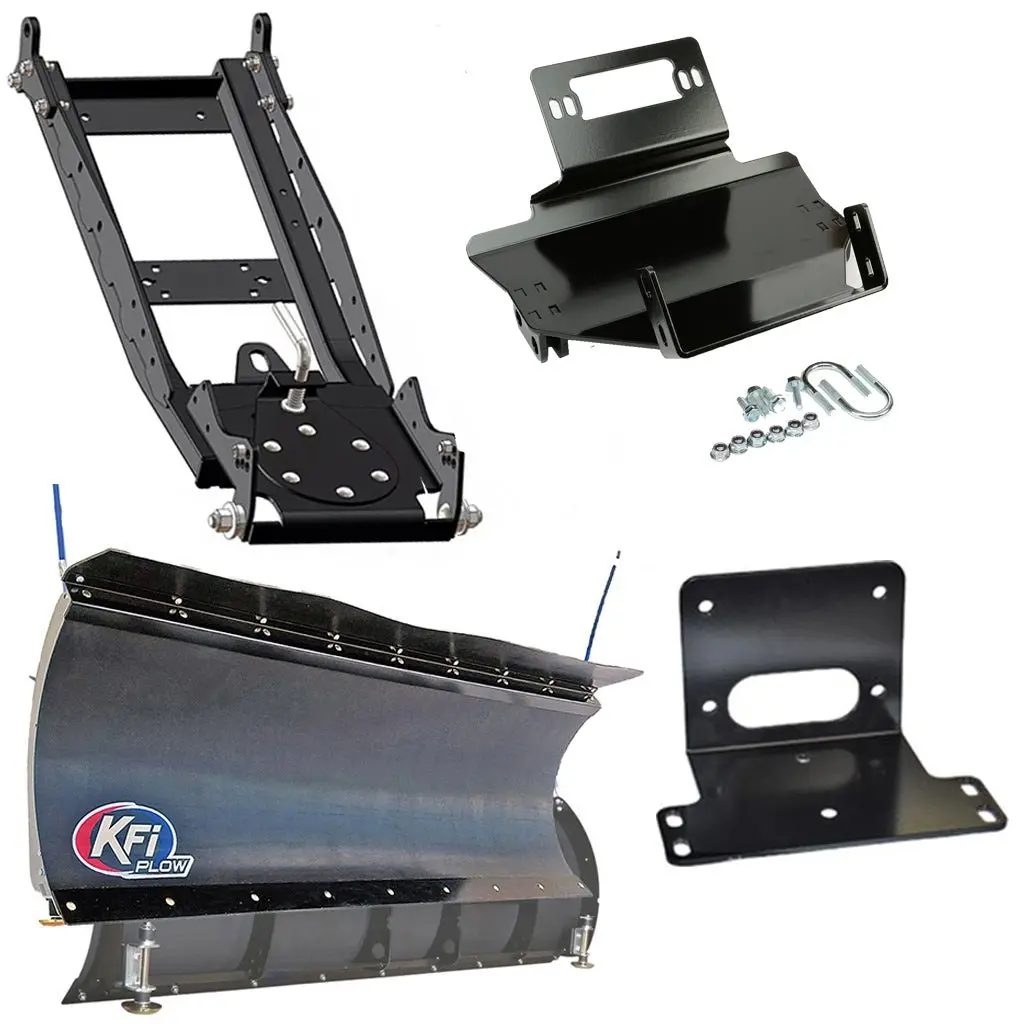

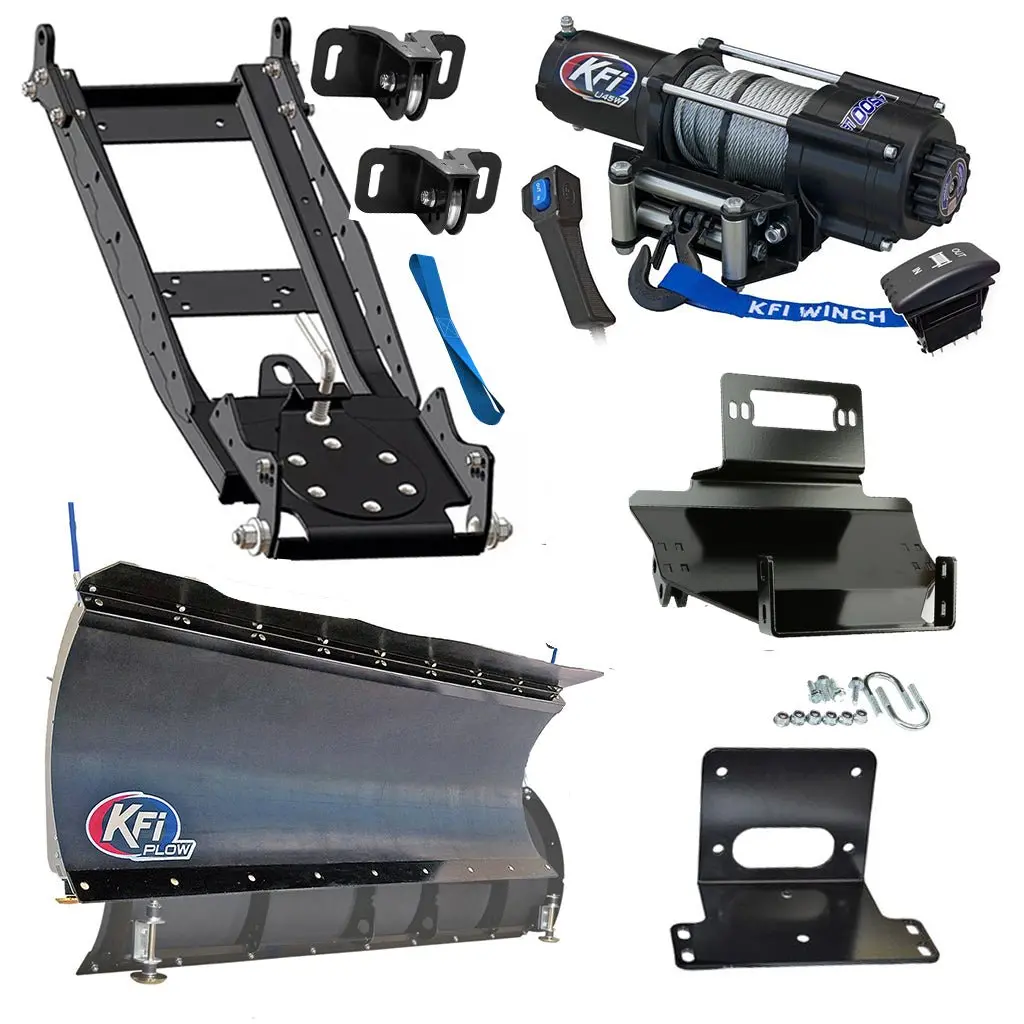

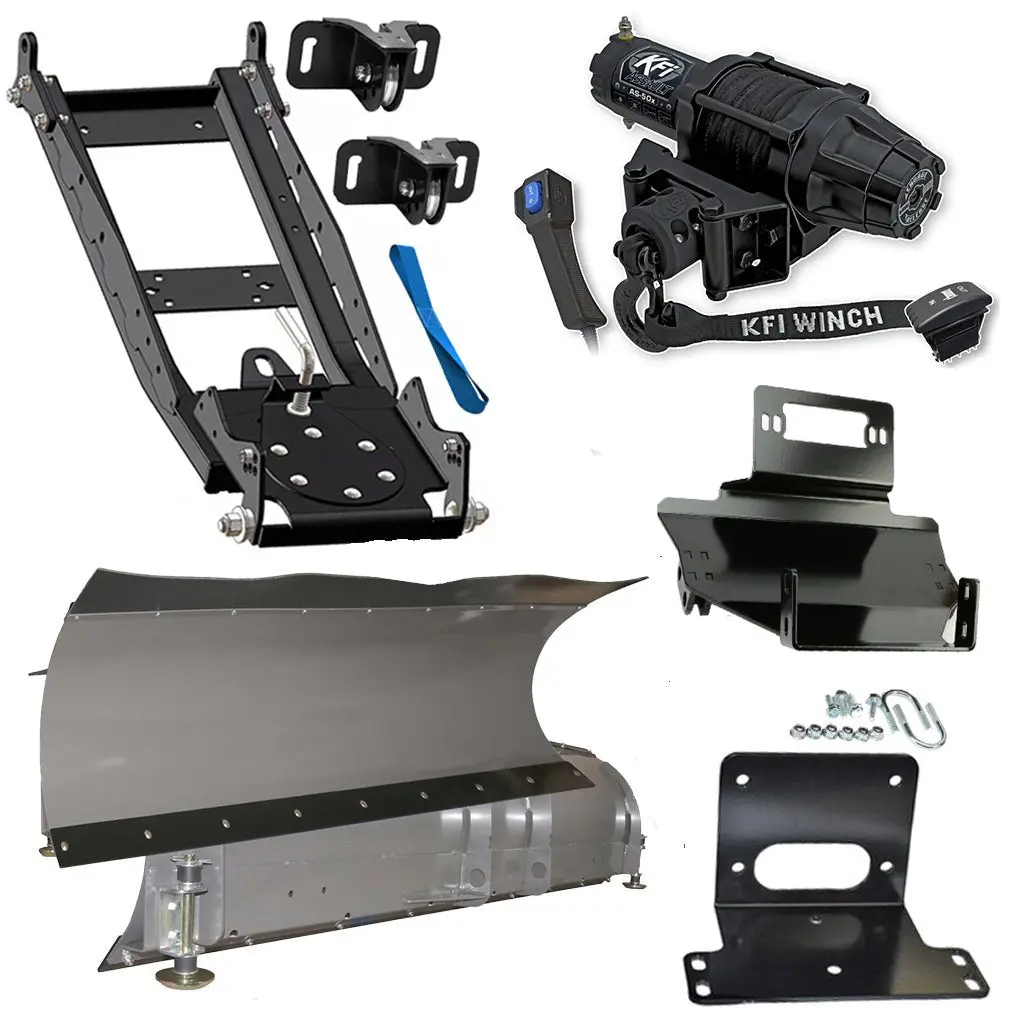

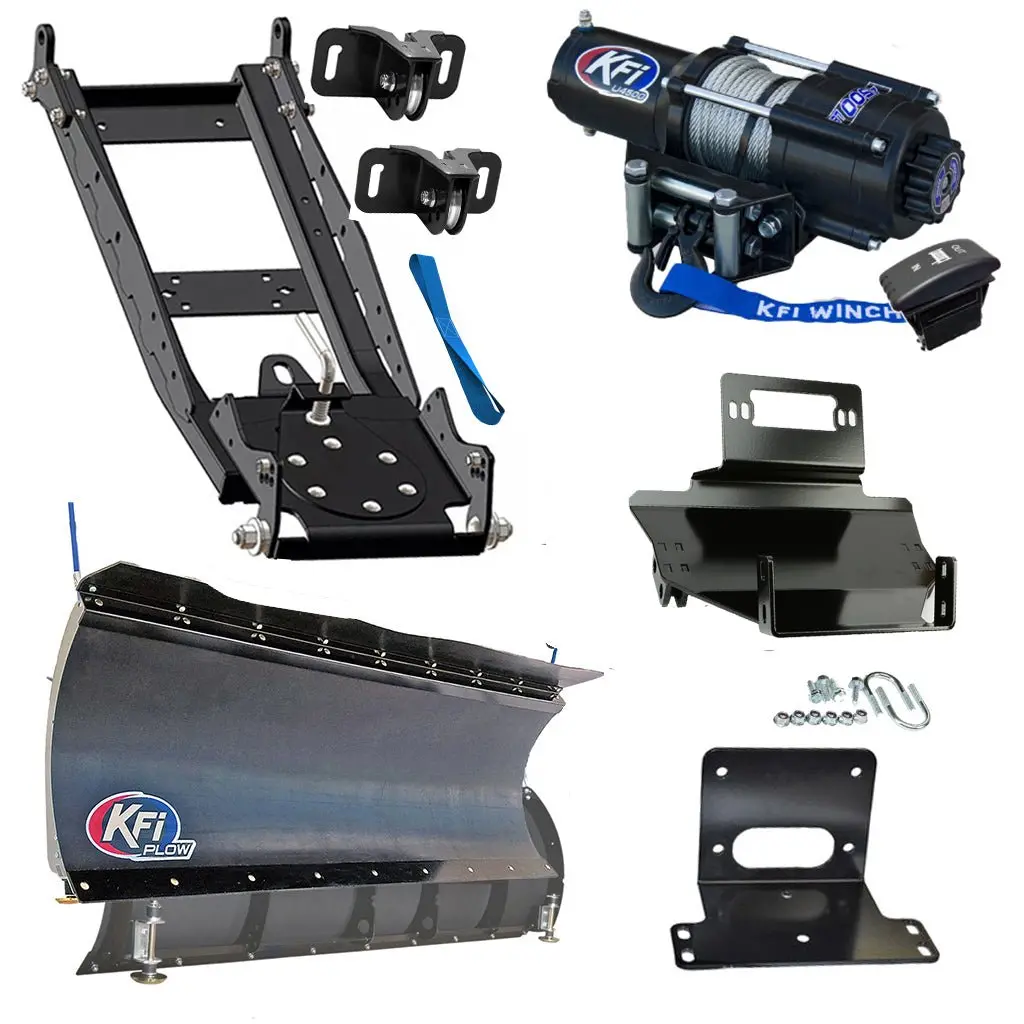

KFI Snowplow Attachment Compatible with Kawasaki Mule 600, 610, and KAF400

Description

Plow Mount Installation Instructions

Winch Mount Installation Instructions

Fairlead & Snowplow Pulley Installation Instructions

FITS:

Kawasaki KAF 400 Mule 600 (2005-2016) (1) (2)
Kawasaki KAF 400 Mule 610 4X4 (2005-2016) (1) (2)

 (1) Requires KFI winch pullies for optimum operation and is included with all snowplow/winch kits.  Snowplow only kits do not include pulleys.

(2) All kits including the snowplow only kits include KFI winch mount  #100575

Straight Blade Specifications:
100% MADE IN USA
Pushes snow straight ahead or to the sides up to 25 degrees
Added gussets for the wider width
The 66″ & 72″ blades only include a 7″ high 2-ply top rubber flap
Measures 16 inches Vertical blade face height with an approximate 21 inches height with snow flap
Fully-adjustable blade skids with bolt-on brackets
Heavy duty 3″-diameter grade-50 steel skid plates
Blade Constructed of 11 ga steel
3/16″ Grade 50 Ribbing for a strong bolt-up to the Swivel Tube
Unlike all other Plow competitors our Plows are metal bead blasted before they are powder coated Metallic Silver for supreme durability
2-Sided 3/16″ x 3.00″ Grade 50 Steel Wear Bar
Wear Bar attached with Heavy Duty Grade 8 Bolts
2-Year KFI Warranty

Poly Blade Specifications:
Includes a 7″ high 2-ply top rubber flap
100% MADE IN USA
Dual Curvature face for supreme snow moving
Measures 21 inch Vertical blade face height with an approximate 27 inch height with snow flap
Fully-adjustable blade skids with bolt-on brackets
Heavy duty 3″-diameter grade-50 steel skid plates
Flexible Heavy Duty Black Poly face
3/16 inch Grade 50 Steel Rib and Frame construction
Unlike all other Plow competitors our Plows are metal bead blasted before they are Powder Coated Black for supreme durability
2-Sided 3/16″ x 3.00″ Grade 50 Steel Wear Bar
Wear Bar attached with Heavy Duty Grade 8 Bolts
Complete installation instructions included
Works with KFI UTV Tubes
Includes Plow Markers
2-Year KFI Warranty

KFI Winch Details
Any winch selection will also receive a model-specific winch mount. Click links below to view winch specific details.

AS-50x  5,000 lb Winch, Synthetic  Cable

KFI Winch Mount:

• 100% MADE IN USA.
• Constructed of 3/16″ steel.
• Unlike all other mount competitors our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
• Powder coated black for supreme durability.
• Very easy to install.
• Complete installation instructions included.
• All mounting hardware included.
• Satisfaction guaranteed.
• Roller fairlead and winch not included .
