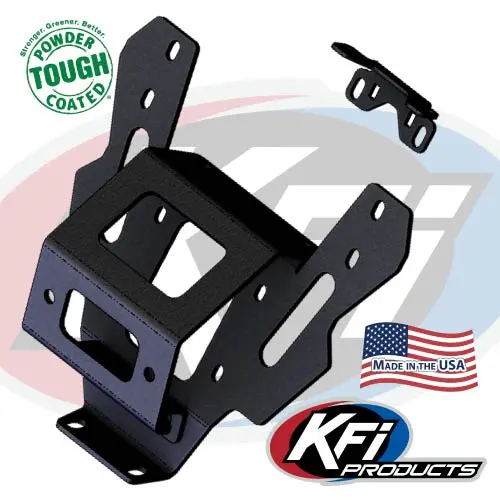

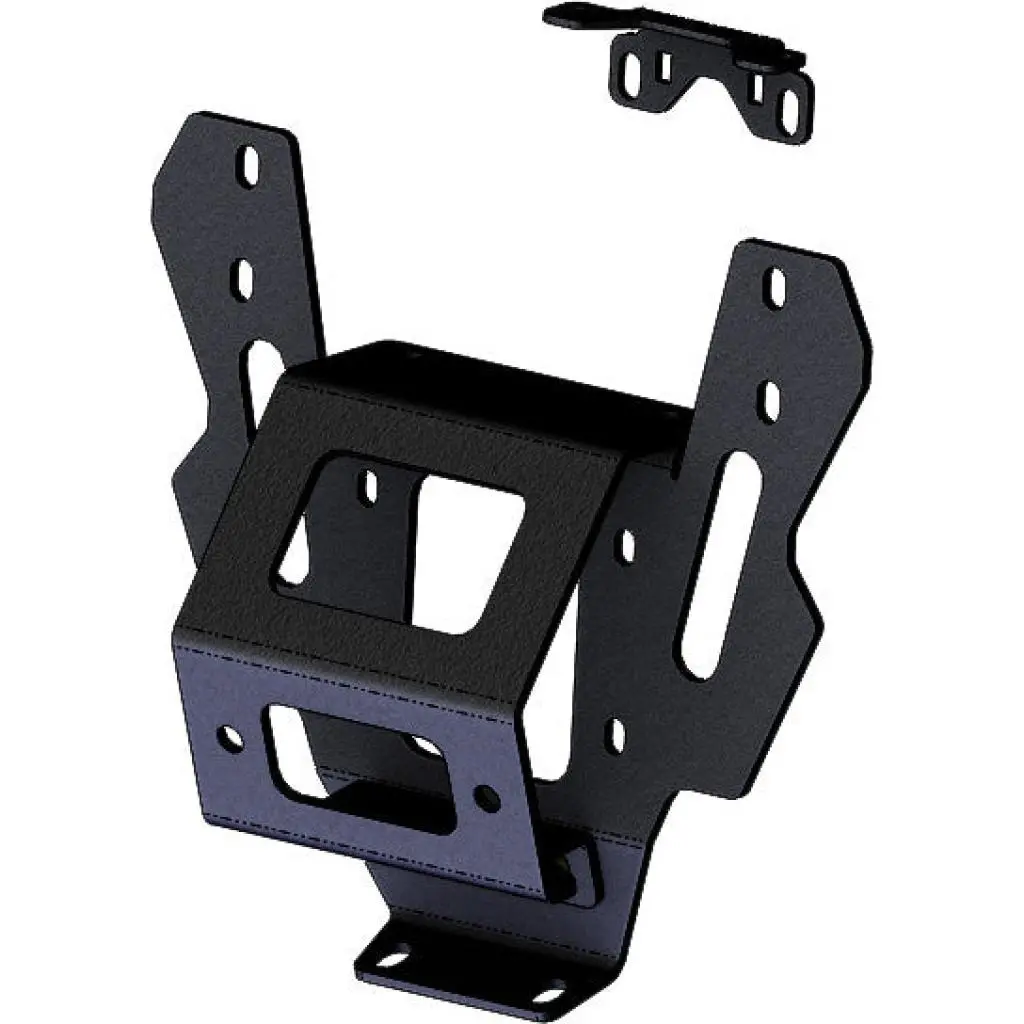

KFI Winch Mount Kit for Arctic Cat Wildcat XX and Textron UTVs

Description

Installation Instructions

Brand New KFI Winch Mount for the following Arctic Cat / Textron / Tracker UTV’s:

Designed to work with the following winches:

• KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / SE25 / SE35 / SE45-R2
• KFI: AM-25 / AM-35 / AS-25 / AS-35
• KFI: AS-50
• WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
• WARN: 1.5ci / 3.0ci / 3.0ce / 3.0s
• WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
• WARN: Vantage 2000-3000lbs / Provantage 2500-3500lbs
• SUPERWINCH: Terra25 / Terra35 / A3500 / Terra 2500 (SR) / Terra 3500 (SR)
• CYCLE COUNTRY: Work Power 1500 and 2500 / Powermax 2500 and 3500
• CHAMPION: Standard Winches
• SMITTYBILT: XRC 3.0 / XRC 4.0
• SuperATV: 3500-W-N-1
• XGEAR: X3000 / X4000
  • 4-Hole Standard (3.00″ x 4.875″ bolt pattern)
• VENOM: 4500 / 5000 / 6000 (Hardcore Series)
  • Must have a 3.00″ x 4.875″ bolt pattern mount-up.
• Traveller: 129250299 / 129250399
• Possibly many others with the below standard mounting patterns, call to confirm.
  • 4-Hole (3.00″ x 4.875″ bolt pattern with rollers that are 4.875″ bolt pattern)
• QUADBOSS: RP25 / RP35

Specifications:

• 100% MADE IN USA.
• Requires Trimming of plastic grill for the Fairlead
• Winch installs behind the from grill
• ONLY works with Standard 3.00″ x 4.875″ Winch bolt-up patterns
• Constructed of 3/16″ steel.
• Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
• Powder coated black for supreme durability.
• Easy to install.
• Complete installation instructions included.
• Satisfaction guaranteed.
• Roller fairlead and winch not included.
