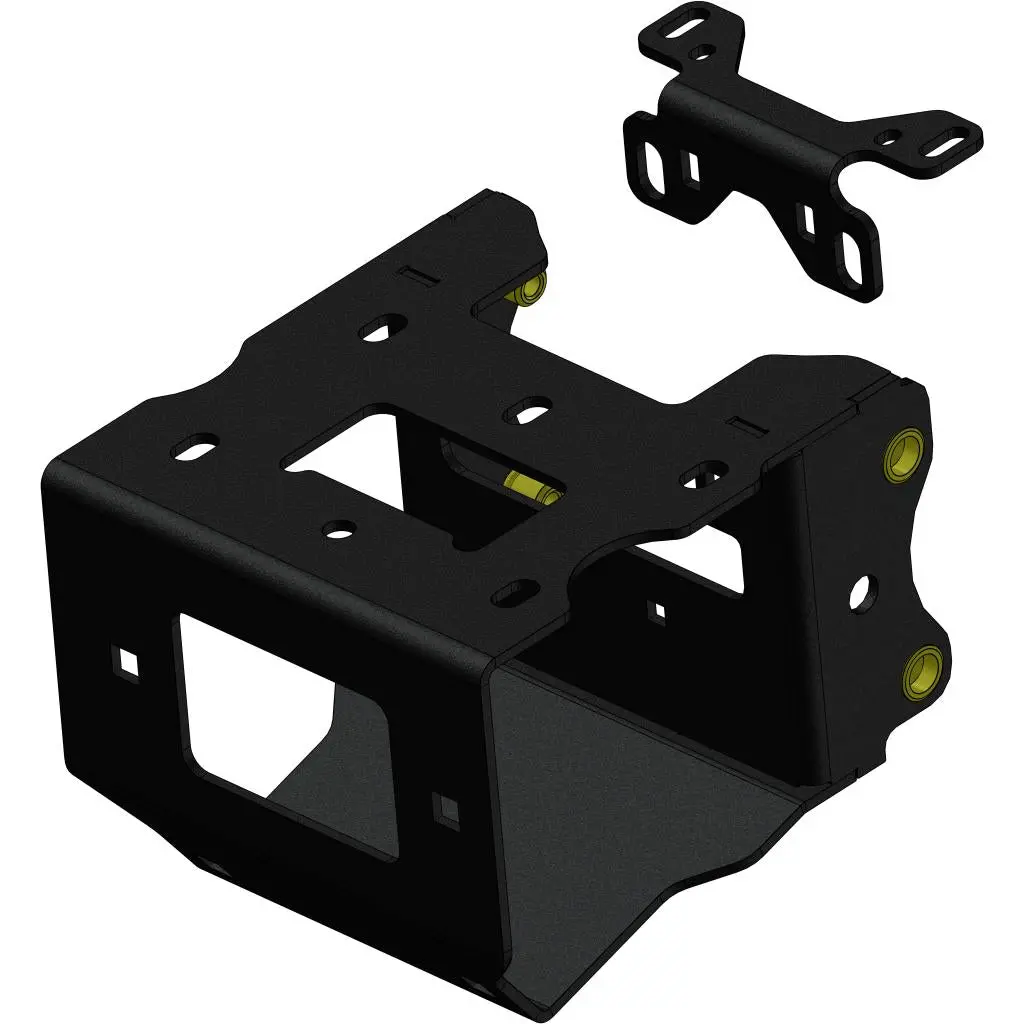

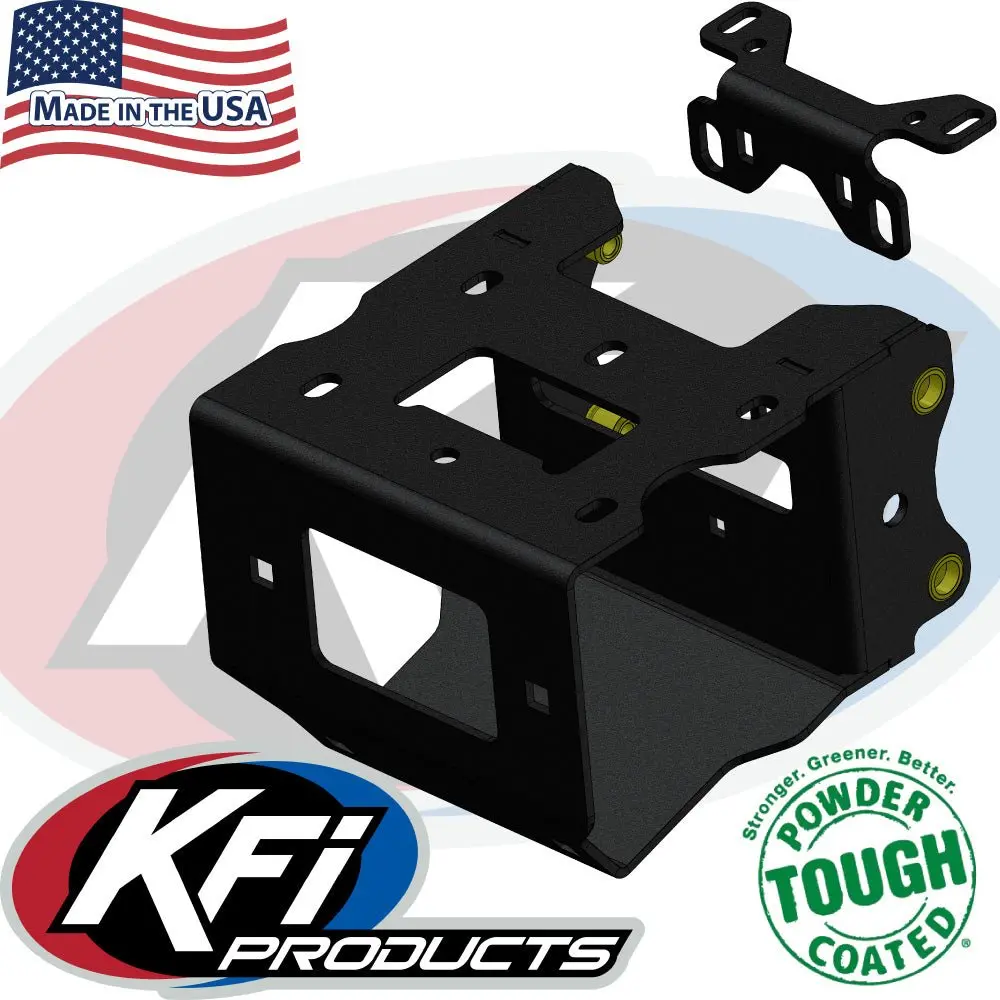

Brand New “KFI” Winch Mount for the Following Polaris ATV’s:
| Polaris ATV’s | Year |
| Scrambler 850 (XP) | ’13-23 |
| Scrambler 1000 (XP) | ’14-18 |
| Sportsman ETX (Hawkeye) | 2015 |
| Sportsman 400 | ’11-14 |
| Sportsman 450 | ’16-23 |
| Sportsman 450 Utility Edition (!!! SEE NOTE X Below) | ’21-23 |
| Sportsman 500 | ’11-13 |
| Sportsman 500 Touring | ’11-13 |
| Sportsman 550 (XP) | ’09-14 |
| Sportsman 550 Touring | ’10-14 |
| Sportsman 550 X2 | ’10-14 |
| Sportsman 570 (Base/SP/EFI) | ’14-23 |
| Sportsman 570 EPS (Base/Utility) | ’14-20 |
| Sportsman 570 EPS (!!! SEE NOTE X Below) | ’21-23 |
| Sportsman 570 Premium | 2020 |
| Sportsman 570 Premium (!!! SEE NOTE X Below) | ’21-23 |
| Sportsman 570 Utility HD LE (!!! SEE NOTE X Below) | ’21-23 |
| Sportsman 570 Touring | ’14-23 |
| Sportsman 570 X2 | ’15-22 |
| Sportsman 800 | ’11-14 |
| Sportsman 850 (XP, Highlifter) | ’09-23 |
| Sportsman 850 Touring | ’10-23 |
| Sportsman 850 X2 | 2011 |
| Sportsman XP 1000 | ’15-23 |
| Sportsman XP 1000 Touring | ’15-23 |
| Sportsman 6×6 Big Boss | ’11-23 |
Supersedes Winch Mount #101740 and 100740
NOTE alt=””>
Mount designed to work with the following winches:
- KFI: ST17 / A2000 / A2500-R2 / A3000 / SE25 / SE35
- KFI: AM-25 / AM-35 / AS-25 / AS-35
- KFI: AS-50 (requires purchase of ATV-MR)
- WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
- WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
- WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
- WARN: Vantage 2000-3000lbs / Provantage 2500-3500lbs
- RAMSEY: ATV2500 / ATV3000
- SUPERWINCH: Terra 2500 (SR) / Terra 3500 (SR) / A3500 / LT2000 / LT2500 / LT3000 / UT3000 / LT4000ATV / LT4000 (SR) (Will NOT work with Terra25 / Terra35 / Terra45)
- MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
- MASTER LOCK: 1500lbs #2955AT
- Requires roller fairlead with a 4.875″ bolt pattern; available if needed #ATV-RF.
- CYCLE COUNTRY: Work Power 1500 and 2500
- BADLAND: 2-Hole Winches
- BADLAND: Standard Winches
- VENOM: 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
- All with 3.00″ x 4.875″ bolt pattern mount-up.
- CHAMPION: 2-Hole Winches
- CHAMPION: ATV 4-hole Winches
- KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C
- KEEPER CORP. TRAKKER: KT2000
- Requires roller fairlead with a 4.875″ bolt pattern; available if needed #ATV-RF.
- SMITTYBILT: XRC 2.0
- Requires roller fairlead with a 4.875″ bolt pattern; available if needed #ATV-RF.
- Listed models come with incorrect ATV roller fairleads.
- SMITTYBILT: XRC 3.0 / XRC 4.0
- XGEAR: X3000 / X4000
- 4-Hole Standard (3.00″ x 4.875″ bolt pattern.
- Traveller: 1078088 / 1078302
- Requires roller fairlead with a 4.875″ bolt pattern; available if needed #ATV-RF
- Possibly many others with the below standard mounting patterns, call to confirm.
- 4-Hole Standard (3.00″ x 4.875″ bolt pattern with rollers that are 4.875″ bolt pattern)
- 2-Hole (3.10″ with rollers that are 4.875″ bolt pattern)
- QUADBOSS: RP25 / RP35
Specifications:
- 100% MADE IN USA.
- Constructed of 10 GA GR50 steel
- Designed to fit between in the OEM location below the radiator
- Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
- Powder coated black for supreme durability.
- Mounts the same as OEM intended.
- Works with all Polaris OEM Brush Guards and Double Tube Bumpers.
- Very easy to install.
- Complete installation instructions included.
- All mounting hardware included.
- Will work with Polaris Glacier Plow.
- Satisfaction guaranteed.
- Roller fairlead and winch not included.
