Srp Forged Inverted-Dome Piston Set For Chrysler 360 Stroker – Small Block, Part Srp220156

Description

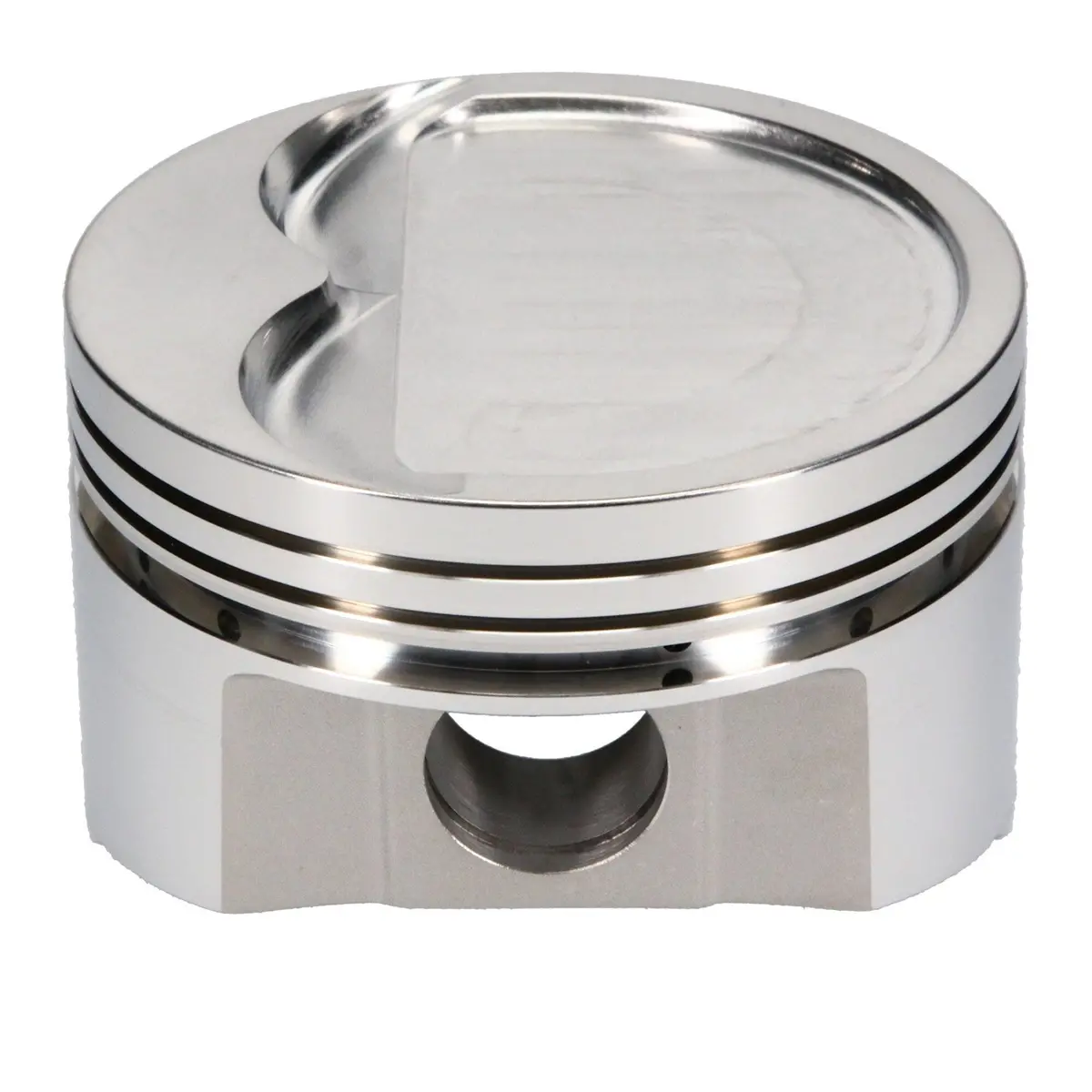

Small Block Chrysler 360 Stroker – Inverted Dome Forged Piston

408 c.i., 4.030″ bore, 4.000″ stroke, 6.125″ rod length, -16.9cc dome volume

SRP220156

P220156

JE Pistons SRP line is proud to offer huge performance for the price. Forged from strong, 4032 aluminium alloy material, SRP pistons blend strength with affordability, offering an excellent performance bargain for performance rebuild and street/strip applications. (some applications in 2618)Features:4032 low expansion high silicon alloy heat treated to SRP specificationsForced Pin Oiler for increased wrist pin lubricationPin fitting and double spiro locks includedCNC Machined ring grooves accept 1/16, 1/16, 3/16 rings (Sold Separately).984 x 2.750 x .150 straight wall wrist pin included (138 grams)Specifications:Engine: SMALL BLOCK CHRYSLERBore Diameter: 4.030Compression Height: 1.460Compression Ratio with 60cc chamber volume: 10.7Compression Ratio with 65cc chamber volume: 10.2Compression Ratio with 70cc chamber volume: 9.7Piston Volume: -16.9Cylinder Head: 340 WEDGEPiston Pin Outside Diameter: 0.984Piston Pin Length: 2.750Piston Pin Material: 5115Ringset Included: NoTop Compression Ring Thickness: 1/16″Second Compression Ring Thickness: 1/16″Oil Ring Thickness: 3/16″Piston Material: 4032Forging Type: FSRPiston Avg Weight: 457Pin Wall Thickness: 0.150Piston Type: DishRing Set: S100S8-4030-5
