Description

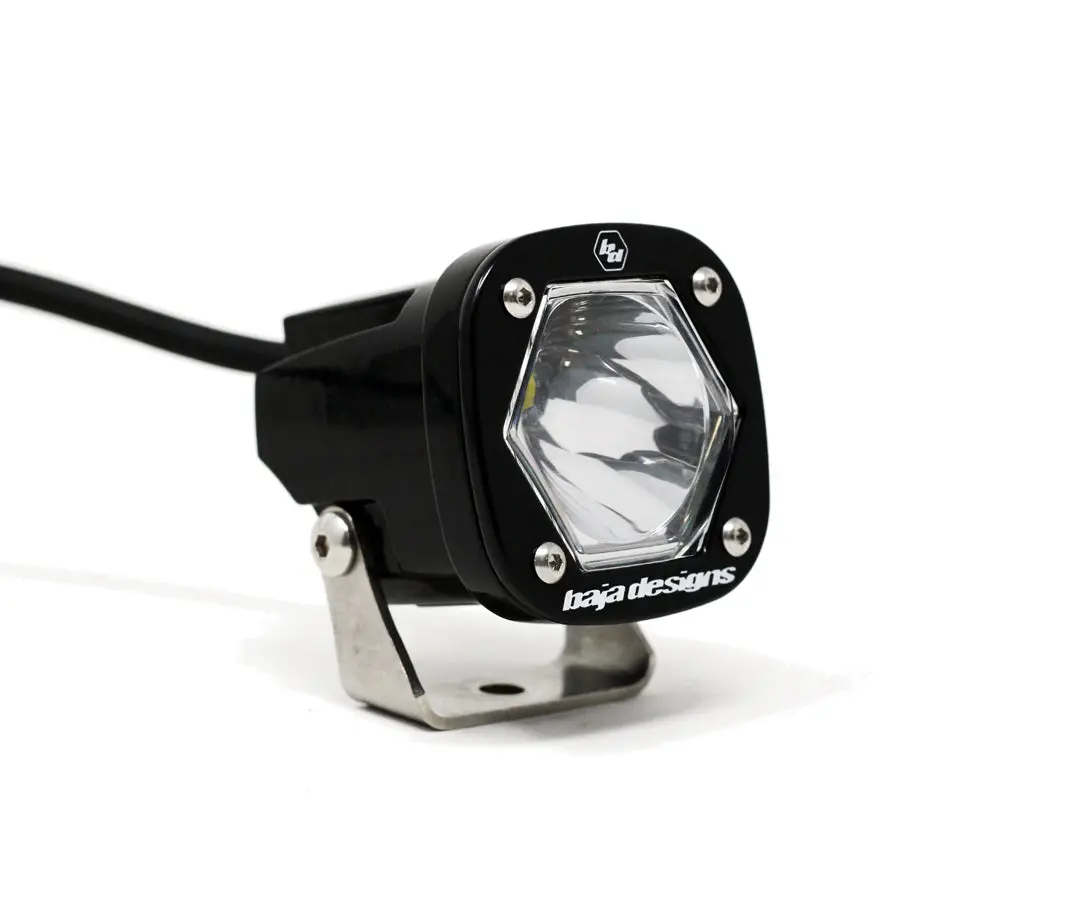

Designed from the ground up our new S1 fills the shoes of a large light in a small package! The S1 utilizes a highly specialized reflector and LED combination to put 2,320 raw lumens down range. With the 2.1 inch length, width, and height the S1 is highly versatile for any application that is in need of light. Whether you’re looking for a light to drive off of or something to light up a campsite the S1 will exceed your expectations! US Patent Number 11273751.
ELS™ Scores:
S1 Spot Clear: ELS 72⁰/ 6.1/ 155’/ 1927
Note: Single lights do not come with a wiring harness. The associated harnesses are: (64-0139 -single light 2-pin harness); (640117 – two light 2-pin harness)
Lens Pattern:
Spot: A longer and narrower 9-degree focus beam for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Cornering and/or Driving Combo beam lights.
Wide Cornering: The wide cornering pattern offers a 42-degree flattened horizontal beam, reducing blind spots and enhancing peripheral visibility in lighting zones 1 and 2. This cornering pattern is perfect for inclement weather such as dust, snow, rain or fog conditions while also perfect for seeing obstacles on the trail, trail conditions, and potential hazards – making it easier to navigate through tight turns, winding trails, or through wooded areas.
Work/Scene: Emits a wide and even beam pattern designed to illuminate a large area with consistent and evenly distributed light. Ideal for tasks that require good visibility across a work area or scene, such as construction sites, camp setups, pit areas or any outdoor workspaces.
Trail: Our newest lens pattern, the Trail Lens expands on ClearView technology with an all-new lens pattern specific to slower speeds on a motorcycle while encountering tight and technical terrain. This new Trail lens optic has been designed to aid in both vertical and horizontal light spreads, to increase width with smoothness across the light pattern while providing riders with the perfect amount of distance. This offers moto riders more confidence in and out of corners while riding technical terrain. The S1 Trail lens offers dual-sport and single-track moto riders that often use 1st through 3rd gear on tight, technical trails more near and mid-field visibility when in tight slower technical terrain aiding in vertical spread while cresting over ridges and valleys.
Note: Single lights do not come with a wiring harness. The associated harnesses are: (64-0139 -Single light 2-Pin harness); (640117 – two light 2-pin harness)
S1 Specifications:
- Lumens: 2,320
- Watts/Amps: 20W/1.42A
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
Baja Designs 380001 Installation Sheet
Baja Designs 380005 Installation Sheet
Baja Designs 380006 Installation Sheet
Baja Designs 380015 Installation Sheet
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 1 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | S1 LED Light Pod |
| Voltage | 9-28 |
| Wattage (W) | 19.596 |
| Wiring Harness Included | No |
| Amperage Rating (A) | 1.420 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Spot |
| Bezel Material | Powder Coated Cast Aluminum |
| Brightness (Lumens) | 2320 |
| Description | Spot; Clear |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
Dimensions
| Depth (in.) | 2.100 |
| Height (in.) | 2.100 |
| Length (in.) | 2.100 |
| Weight (lbs.) | 0.400 |
